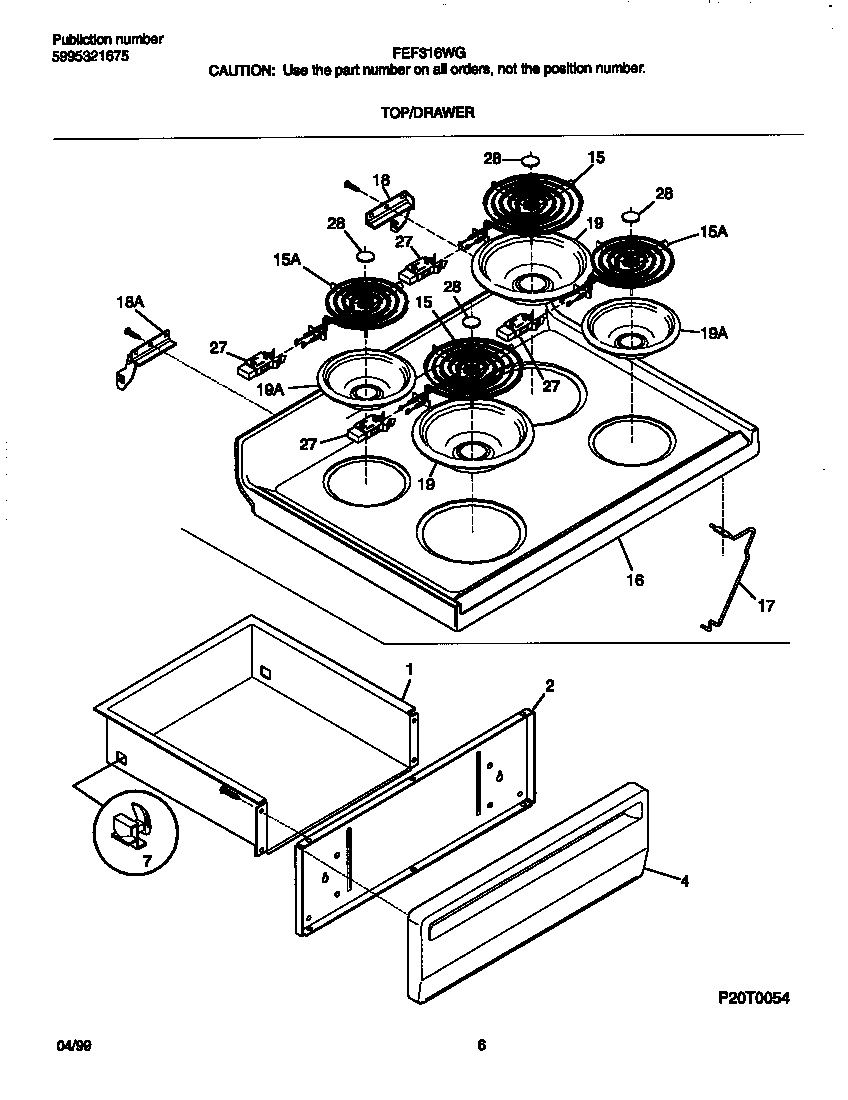

FEF316WGTC 04 – TOP/DRAWER

Products

Position	Product
*98941	316580408 Frigidaire Oven Harness
*98938	WCI 316089600
*98942	SCREW, HEX WASHER HEAD, 8-18(AB) X 1/2 (NOT ILLUSTRATED)
*98939	WCI 5303280311
*98940	5308014215 Frigidaire Oven Screw
*98934	Screw,cup pt ,8-18 x 0.375 ,chrome
*98935	316021109 Frigidaire Oven Screw
*98933	316021105 Frigidaire Oven Screw
1	DRAWER-UTILITY
2	SHIELD-PNL
4	WCI 316084406
7	3051163 Frigidaire Oven Range Rear Broiler Drawer Glide
15	318372210 Frigidaire Oven Range 6" 1250W Surface Element
15	316442300 Frigidaire Oven 2100W Coil Element 8
16	WCI 3013512
17	WCI 316066900
18	BRACKET-HINGE,MAIN TOP LH
18	BRACKET-HINGE,MAIN TOP RH
19	316048413 Frigidaire Oven Range Chrome 8" Drip Bow
19	316048414 Frigidaire Oven Range Chrome 6" Drip Bowl
27	5303935058 Frigidaire Oven Burner Receptacle Kit
28	MEDALLION, STAINLESS STEEL, SURF ELEM
44	3131903 Frigidaire Door/Drawer Bumper
