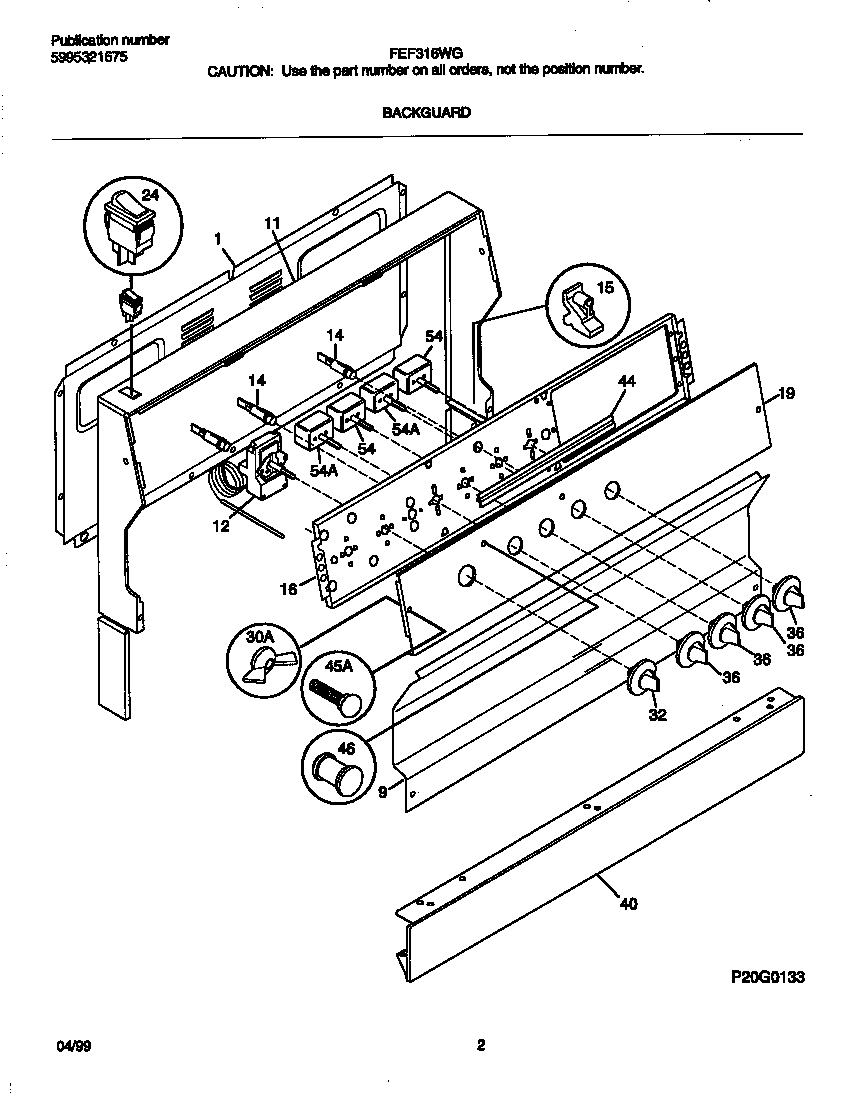

FEF316WGTD 02 – BACKGUARD

FEF316WGTD 02 – BACKGUARD

Written by

in

FEF316WGTD 02 – BACKGUARD

Products

PositionProduct
*98922316021105 Frigidaire Oven Screw
*98921WCI 316002675
*98920WCI 316001558
*98925316112500 Frigidaire Oven Template
*98926WCI 5303272555
*98924316021109 Frigidaire Oven Screw
*98923Screw,cup pt ,8-18 x 0.375 ,chrome
1SHIELD-BACKGUARD,REAR WALL
9WCI 316043602
11WCI 316083717
12WCI 5303212745
14LIGHT/LAMP, INDICATOR, BLUE, 250 V
15SUPPORT-BACKGUARD,(2)
16WCI 316042602
19WCI 316034129
24SWITCH-ROCKER,OVEN LIGHT ,ALMOND
30WCI 316064300
32WCI 316123302
36WCI 316123305
40WCI 316064015
44WCI 3131468
45Bolt,fastener ,nylon ,almond ,(2)
46Lens,indicator light ,red
545303935086 Frigidaire Oven Top Burner Switch Kit
