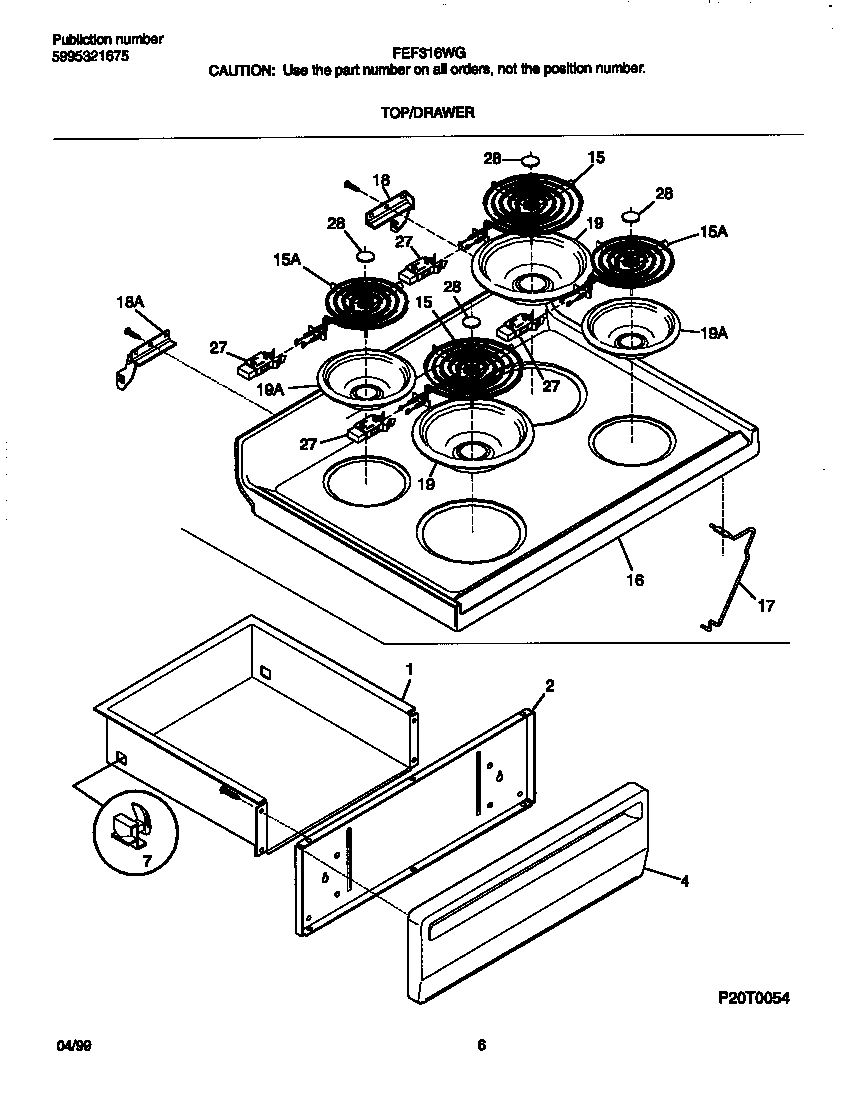

FEF316WGTD 04 – TOP/DRAWER

FEF316WGTD 04 – TOP/DRAWER

Written by

in

FEF316WGTD 04 – TOP/DRAWER

Products

PositionProduct
*98941316580408 Frigidaire Oven Harness
*98938WCI 316089600
*98942SCREW, HEX WASHER HEAD, 8-18(AB) X 1/2 (NOT ILLUSTRATED)
*98939WCI 5303280311
*989405308014215 Frigidaire Oven Screw
*98934Screw,cup pt ,8-18 x 0.375 ,chrome
*98935316021109 Frigidaire Oven Screw
*98933316021105 Frigidaire Oven Screw
1DRAWER-UTILITY
2SHIELD-PNL
4WCI 316084406
73051163 Frigidaire Oven Range Rear Broiler Drawer Glide
15316442300 Frigidaire Oven 2100W Coil Element 8
15318372210 Frigidaire Oven Range 6" 1250W Surface Element
16WCI 3013512
17WCI 316066900
18BRACKET-HINGE,MAIN TOP LH
18BRACKET-HINGE,MAIN TOP RH
19316048413 Frigidaire Oven Range Chrome 8" Drip Bow
19316048414 Frigidaire Oven Range Chrome 6" Drip Bowl
275303935058 Frigidaire Oven Burner Receptacle Kit
285303017715 Frigidaire Medallion
443131903 Frigidaire Door/Drawer Bumper
