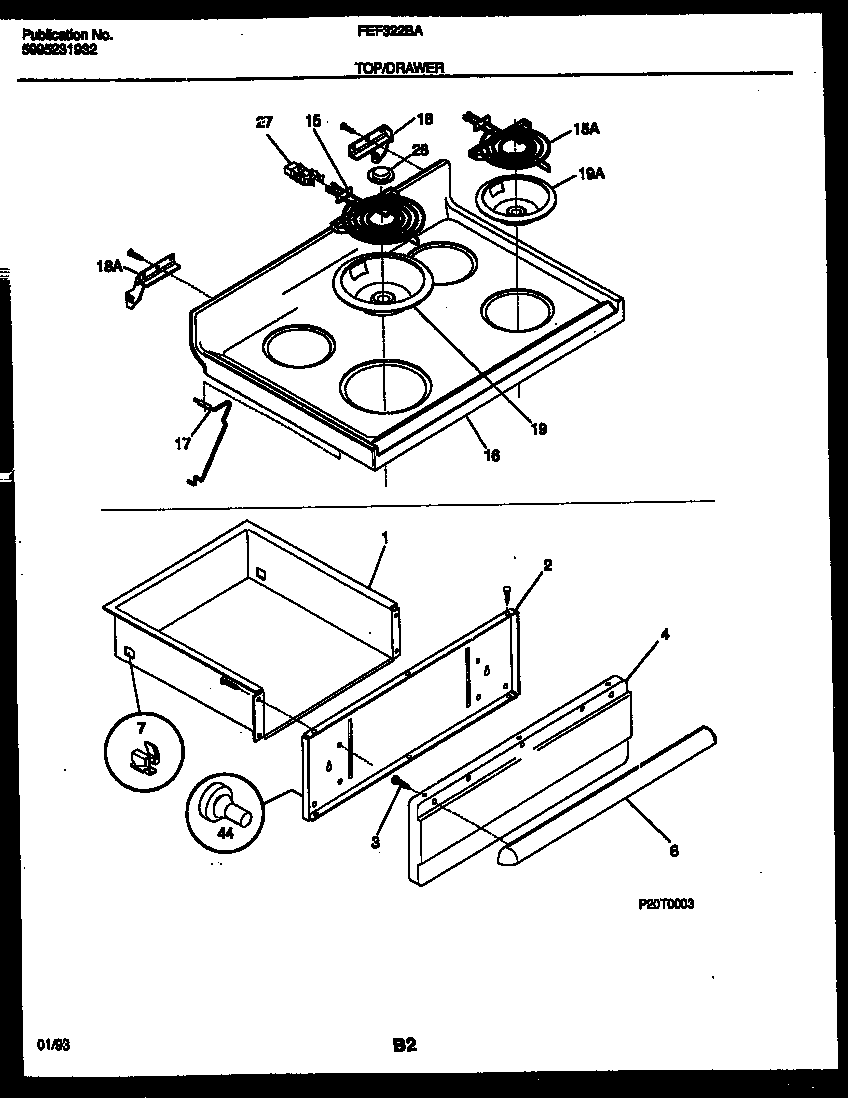

FEF322BADA 04 – COOKTOP AND DRAWER PARTS

FEF322BADA 04 – COOKTOP AND DRAWER PARTS

Written by

in

FEF322BADA 04 – COOKTOP AND DRAWER PARTS

Products

PositionProduct
*72377WCI 5303281584
1DRAWER-UTILITY
2SHIELD-PNL
3WCI 5303281379
4WCI 316056202
4ASCREW, HEX WASHER HEAD, 8-18(AB) X 1/2 (NOT ILLUSTRATED)
6WCI 316026100
73051163 Frigidaire Oven Range Rear Broiler Drawer Glide
15A318372211 Frigidaire Oven 6" Electric Range Burner Kit
155308011964 Frigidaire Surface Element P1
16MAIN TOP, ALMOND
17316057601 Frigidaire Oven Rod
18HINGE-MAIN TOP (RH)
18B131243700 Frigidaire Screw
18AHINGE-MAIN TOP (LH)
19A316222301 Frigidaire Oven 8" Porcelain Drip Bowl Range
19AA316222201 Frigidaire Oven Drip Bowl Assembly
275303935058 Frigidaire Oven Burner Receptacle Kit
285303017715 Frigidaire Medallion
443131903 Frigidaire Door/Drawer Bumper
