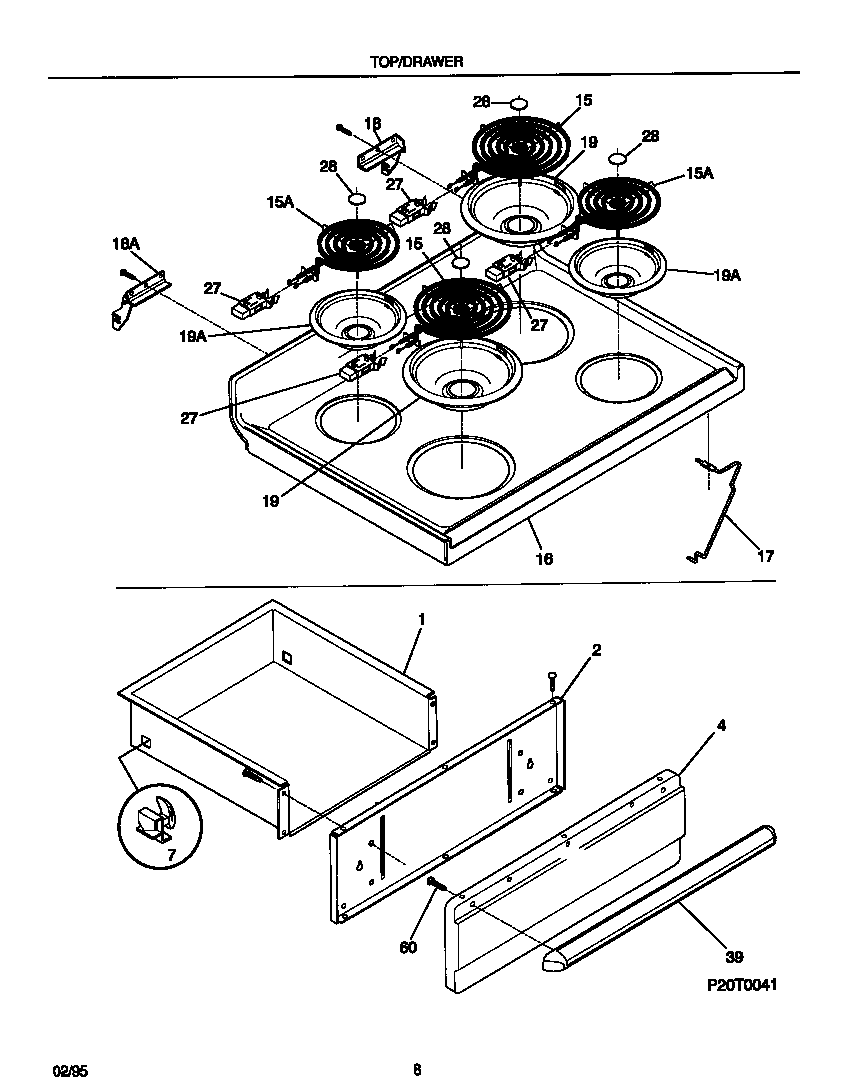

FEF322BADB 05 – TOP/DRAWER

FEF322BADB 05 – TOP/DRAWER

Written by

in

FEF322BADB 05 – TOP/DRAWER

Products

PositionProduct
*72769WCI 5303281584
1DRAWER-UTILITY
2SHIELD-PNL
4WCI 316056206
4SCREW, HEX WASHER HEAD, 8-18(AB) X 1/2 (NOT ILLUSTRATED)
73051163 Frigidaire Oven Range Rear Broiler Drawer Glide
155308011964 Frigidaire Surface Element P1
15A318372211 Frigidaire Oven 6" Electric Range Burner Kit
16WCI 316020908
17316057601 Frigidaire Oven Rod
18131243700 Frigidaire Screw
18AHINGE-MAIN TOP (LH)
18HINGE-MAIN TOP (RH)
19A316222301 Frigidaire Oven 8" Porcelain Drip Bowl Range
19AA316222201 Frigidaire Oven Drip Bowl Assembly
275303935058 Frigidaire Oven Burner Receptacle Kit
28MEDALLION, STAINLESS STEEL, SURF ELEM
39WCI 316026100
60WCI 5303288574
