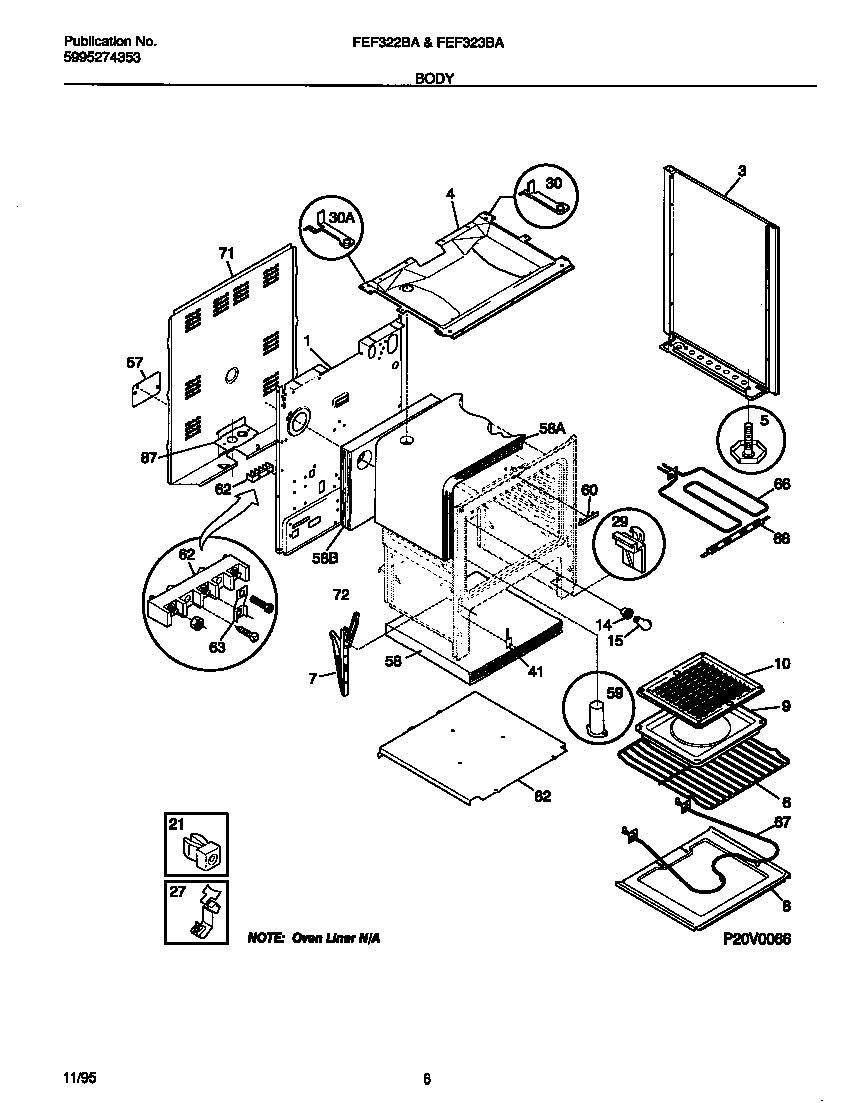

| *01847 | WCI 5303281584 |
| *01844 | COVER-OVEN FRONT |
| *01848 | WCI 316001343 |
| *01846 | 316205500 Frigidaire Oven Nut |
| *01845 | 3203550 Frigidaire Oven Plug |
| 1 | WCI 316080801 |
| 3 | WCI 316081006 |
| 3 | WCI 316081007 |
| 4 | WCI 5303271756 |
| 5D | NUT, T,TYPE, LEVELING SCREW (NOT ILLUSTRATED) |
| 5C | 316116000 Frigidaire Screw |
| 5B | WCI 3934058 |
| 5A | SCREW-LEVELING |
| 6 | 316067902 Frigidaire Oven Rack |
| 7 | Hinge,oven door ,(2) |
| 8 | PANEL-OVEN BOTTOM |
| 9 | WCI 316073800 |
| 10 | WCI 3205234 |
| 14 | 316116400 Frigidaire Oven Light Socket |
| 15 | 316538904 Frigidaire Oven Lamp Light |
| 21 | SPACER-BODYSIDE, (8) |
| 27 | 5303284616 Frigidaire Range Bulb Clip Thermostat |
| 29 | 3051162 Frigidaire Oven Range Front Broiler Drawer Glide |
| 30 | BRACKET-HINGE, MAIN TOP RH |
| 30 | BRACKET-HINGE, MAIN TOP, LH |
| 41 | WCI 3131570 |
| 57 | WCI 316081101 |
| 58 | 316403803 Frigidaire Insulation |
| 58 | 316054202 Frigidaire Insulation |
| 58 | 316047707 Frigidaire Insulation |
| 59 | WCI 316073601 |
| 62 | 5304409888 Frigidaire Oven Terminal Block with Hardware |
| 63 | PLATE=GROUND STRAP |
| 66 | 5303051140 Frigidaire Broil Element |
| 67 | 316075103 Frigidaire Oven Bake Element |
| 68 | 316203400 Frigidaire Oven Support |
| 71 | WCI 316015805 |
| 82 | SHIELD, OVEN BOTTOM |
| 87 | WCI 316081201 |
