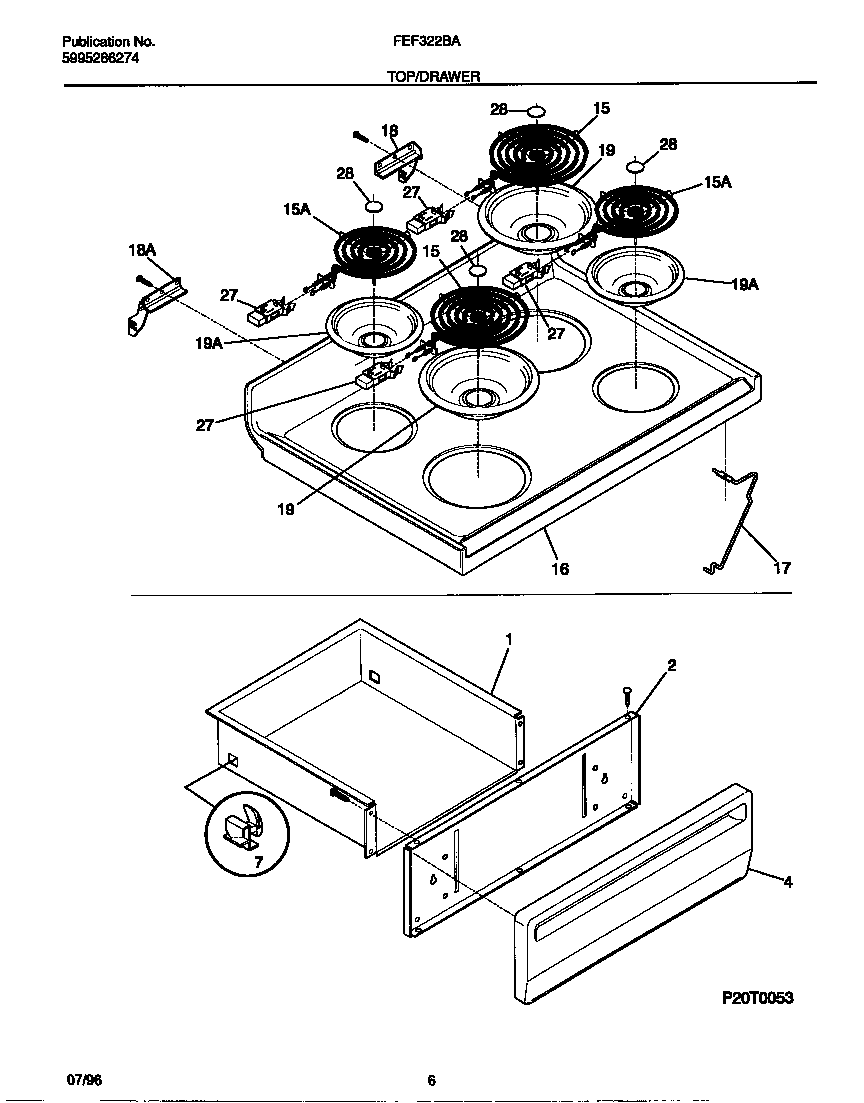

FEF322BADF 04 – TOP/DRAWER

FEF322BADF 04 – TOP/DRAWER

Written by

in

FEF322BADF 04 – TOP/DRAWER

Products

PositionProduct
*18565WCI 316001725
*18568131243700 Frigidaire Screw
*18567WCI 5303280311
*18566Screw,cup pt ,8-18 x 0.375 ,chrome
1DRAWER-UTILITY
2SHIELD-PNL
4316021109 Frigidaire Oven Screw
4SCREW, HEX WASHER HEAD, 8-18(AB) X 1/2 (NOT ILLUSTRATED)
4WCI 316084406
73051163 Frigidaire Oven Range Rear Broiler Drawer Glide
155308011964 Frigidaire Surface Element P1
15318372211 Frigidaire Oven 6" Electric Range Burner Kit
16WCI 316020908
17316057601 Frigidaire Oven Rod
18HINGE-MAIN TOP (RH)
18HINGE-MAIN TOP (LH)
19A316222301 Frigidaire Oven 8" Porcelain Drip Bowl Range
19A316222201 Frigidaire Oven Drip Bowl Assembly
275303935058 Frigidaire Oven Burner Receptacle Kit
285303017715 Frigidaire Medallion
