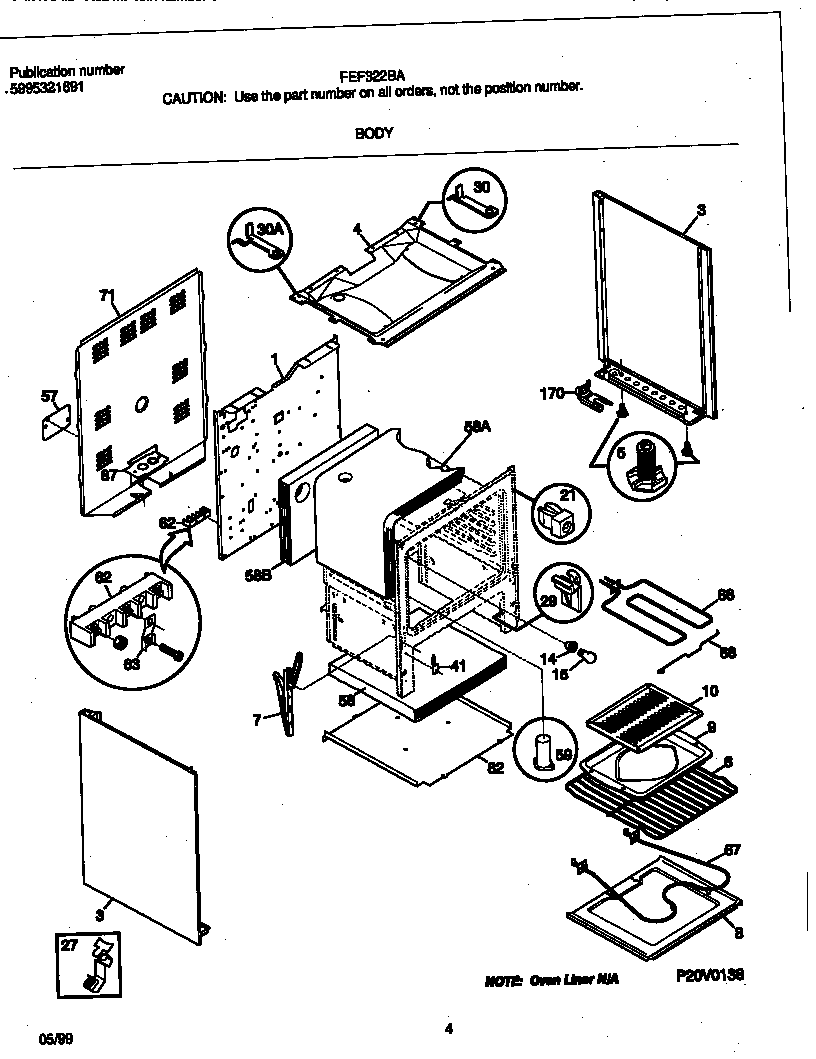

FEF322BADL 03 – BODY

FEF322BADL 03 – BODY

Written by

in

FEF322BADL 03 – BODY

Products

PositionProduct
*02090316021105 Frigidaire Oven Screw
*020875303271648 Frigidaire Oven Screw
*02091Screw,cup pt ,8-18 x 0.375 ,chrome
*020883203550 Frigidaire Oven Plug
*02092316205500 Frigidaire Oven Nut
1WCI 316080804
3AWCI 316081036
3BWCI 316081037
4WCI 5303271756
5WCI 316107300
6316067902 Frigidaire Oven Rack
7Hinge,oven door ,(2)
8PANEL-OVEN BOTTOM
9WCI 316073800
10WCI 3205234
14316116400 Frigidaire Oven Light Socket
15316538904 Frigidaire Oven Lamp Light
21SPACER-BODYSIDE, (8)
275303284616 Frigidaire Range Bulb Clip Thermostat
293051162 Frigidaire Oven Range Front Broiler Drawer Glide
30BRACKET-HINGE, MAIN TOP RH
30BRACKET-HINGE, MAIN TOP, LH
41WCI 3131570
57WCI 316081101
58316403803 Frigidaire Insulation
59WCI 316073601
625304409888 Frigidaire Oven Terminal Block with Hardware
63PLATE=GROUND STRAP
665303051140 Frigidaire Broil Element
67316075103 Frigidaire Oven Bake Element
68316203400 Frigidaire Oven Support
71WCI 316015805
82WCI 5303289913
87316081200 Frigidaire Oven Bracket
170B316116000 Frigidaire Screw
170A316112005 Frigidaire Oven Anti-Tip Range Bracket Kit
