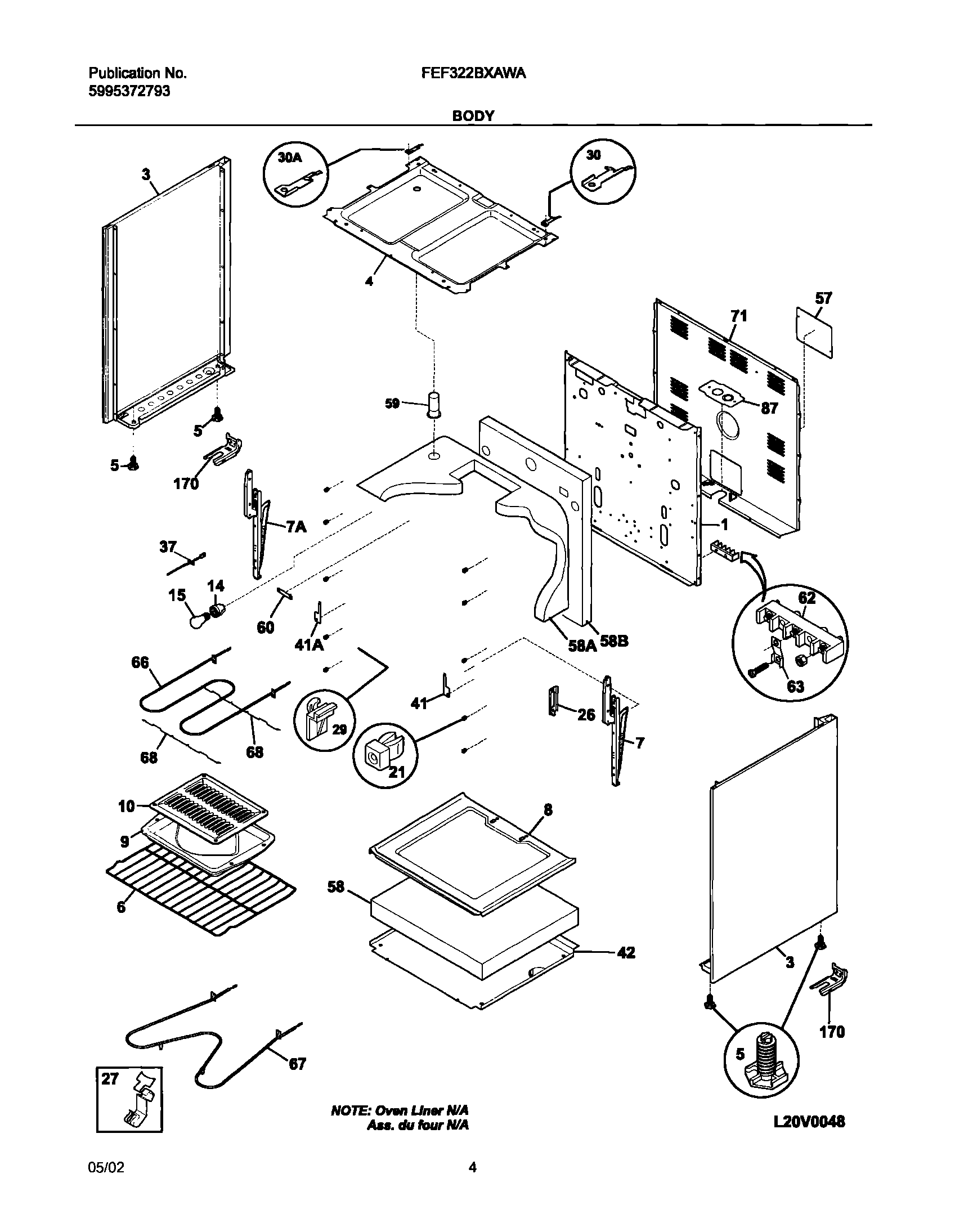

FEF322BXAWA 05 – BODY

FEF322BXAWA 05 – BODY

Written by

in

FEF322BXAWA 05 – BODY

Products

PositionProduct
NI5303285179 Frigidaire Oven Door Screw
NI5303321319 Frigidaire Refrigerator White Touch Up Paint
NI316205500 Frigidaire Oven Nut
NI3203550 Frigidaire Oven Plug
NI5308014215 Frigidaire Oven Screw
NIWCI 316073400
NIScrew,cup pt ,8-18 x 0.375 ,chrome
NIWCI 5303280311
NI5303271648 Frigidaire Oven Screw
NI5303321321 Frigidaire Refrigerator Black Touch-Up Paint
NIWCI 316253114
1WCI 316201300
3WCI 316230103
3WCI 316230102
45304522901 Frigidaire M Burner Box
5WCI 316129200
6316067902 Frigidaire Oven Rack
7AWCI 316212909
7WCI 316212908
8PANEL-OVEN BOTTOM
9WCI 316081900
10Insert,broiler panOPTIONAL ACCESS0RY
14316116400 Frigidaire Oven Light Socket
15316538904 Frigidaire Oven Lamp Light
21SPACER-BODYSIDE, (8)
26316206300 Frigidaire Oven Support
275303284616 Frigidaire Range Bulb Clip Thermostat
293051162 Frigidaire Oven Range Front Broiler Drawer Glide
30ABRACKET-HINGE, MAIN TOP, LH
30BRACKET-HINGE, MAIN TOP RH
41AWCI 316233500
41WCI 316233400
42WCI 316206200
57WCI 316081100
58316403803 Frigidaire Insulation
58A316047707 Frigidaire Insulation
58B316054202 Frigidaire Insulation
59316073605 Frigidaire Oven Tube
60WCI 316239100
625304409888 Frigidaire Oven Terminal Block with Hardware
63PLATE=GROUND STRAP
66316203200 Frigidaire Oven Broil Element 2400W
67316075103 Frigidaire Oven Bake Element
68316203400 Frigidaire Oven Support
71WCI 316015810
87316081200 Frigidaire Oven Bracket
170316116000 Frigidaire Screw
170316112005 Frigidaire Oven Anti-Tip Range Bracket Kit
170316112500 Frigidaire Oven Template
