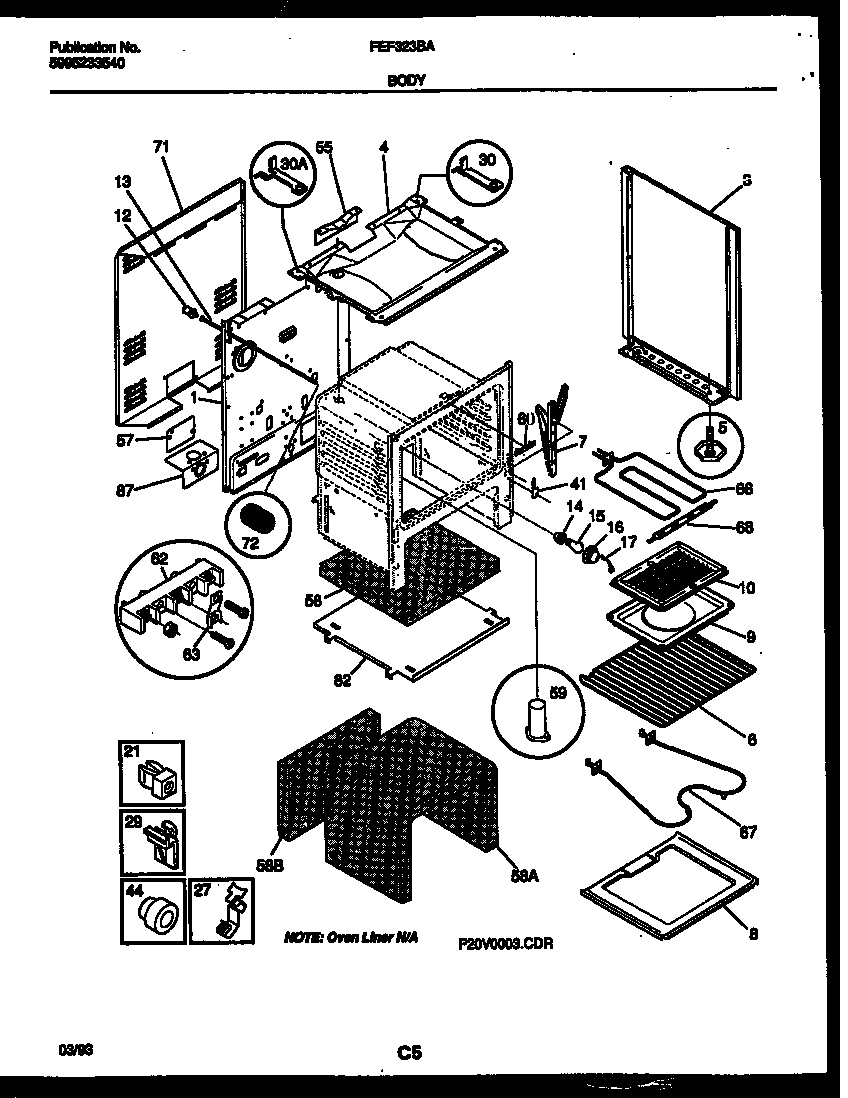

FEF323BADA 03 – BODY PARTS

Products

PositionProduct
*738313203550 Frigidaire Oven Plug
1BACK-MAIN, AUTOLATCH
3WCI 5303269543
3AWCI 5303269545
4WCI 5303271756
5AANTI-TIP KIT (NOT ILLUSTRATED)
5BNUT, T,TYPE, LEVELING SCREW (NOT ILLUSTRATED)
5SCREW-LEVELING
6316067902 Frigidaire Oven Rack
7Hinge,oven door ,(2)
8PANEL-OVEN BOTTOM
9PAN-BROILER
10WCI 5303131356
12WCI 316027702
13WCI 316026800
14316116400 Frigidaire Oven Light Socket
15316538904 Frigidaire Oven Lamp Light
165304524341 Frigidaire Lens
17RETAINER-GLASS
21SPACER-BODYSIDE, (8)
275303284616 Frigidaire Range Bulb Clip Thermostat
293051162 Frigidaire Oven Range Front Broiler Drawer Glide
30BRACKET-HINGE, MAIN TOP RH
30ABRACKET-HINGE, MAIN TOP, LH
41WCI 3131570
443131903 Frigidaire Door/Drawer Bumper
57COVER-ACCESS
58316403803 Frigidaire Insulation
58AINSULATION, OVEN WRAPPER
58BINSUL – OVEN BACK (NON-ILLUSTRATED)
59WCI 5303283907
60COVER-OVEN FRONT
625304409888 Frigidaire Oven Terminal Block with Hardware
62A316205500 Frigidaire Oven Nut
63PLATE-GROUND STRAP
665303051140 Frigidaire Broil Element
67316075103 Frigidaire Oven Bake Element
68316203400 Frigidaire Oven Support
71SHIELD-REAR WALL, LOWER
72COVER-LIGHT/SWITCH ROD
82SHIELD, OVEN BOTTOM
87WCI 5303206618
