FEF323BAWB 04 – BODY

FEF323BAWB 04 – BODY

Written by

in

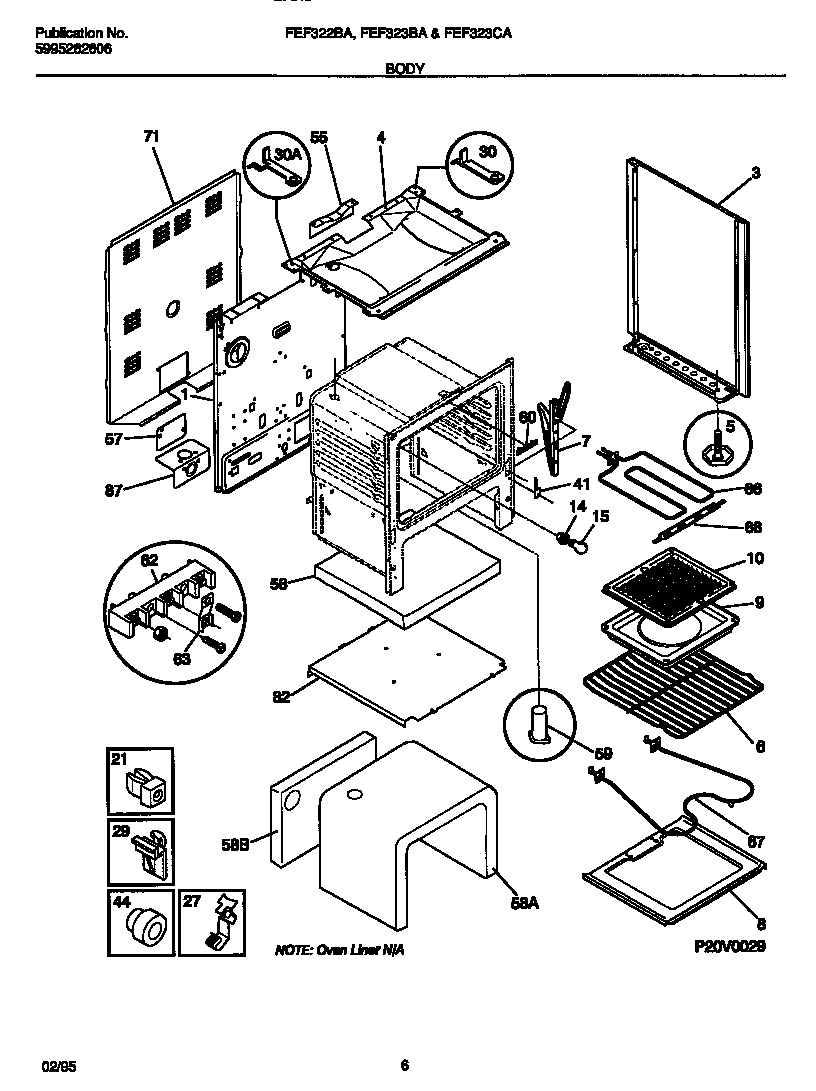

FEF323BAWB 04 – BODY

Products

PositionProduct
*727653203550 Frigidaire Oven Plug
*72764316205500 Frigidaire Oven Nut
*727665303321319 Frigidaire Refrigerator White Touch Up Paint
*72768WIRING HARNESSES ARE NOT AVAILABLE FOR THIS MODEL
1WCI 316029405
3PNL-B/S-LH-WHITE
3PNL-B/S-RH-WHITE
4WCI 5303271756
5NUT, T,TYPE, LEVELING SCREW (NOT ILLUSTRATED)
5WCI 3934058
5SCREW-LEVELING
6316067902 Frigidaire Oven Rack
7Hinge,oven door ,(2)
8PANEL-OVEN BOTTOM
9WCI 316073800
10WCI 316073900
14316116400 Frigidaire Oven Light Socket
15316538904 Frigidaire Oven Lamp Light
20SPACER-BODYSIDE, (8)
275303284616 Frigidaire Range Bulb Clip Thermostat
293051162 Frigidaire Oven Range Front Broiler Drawer Glide
30BRACKET-HINGE, MAIN TOP RH
30ABRACKET-HINGE, MAIN TOP, LH
41WCI 3131570
443131903 Frigidaire Door/Drawer Bumper
57COVER-ACCESS
58AINSULATION, OVEN WRAPPER
58BINSUL – OVEN BACK (NON-ILLUSTRATED)
58316403803 Frigidaire Insulation
59WCI 316073601
60COVER-OVEN FRONT
625304409888 Frigidaire Oven Terminal Block with Hardware
63PLATE-GROUND STRAP
665303051140 Frigidaire Broil Element
67316075103 Frigidaire Oven Bake Element
68316203400 Frigidaire Oven Support
71SHIELD, REAR WALL, REAR WALL
82SHIELD, OVEN BOTTOM
87WCI 5303206618
