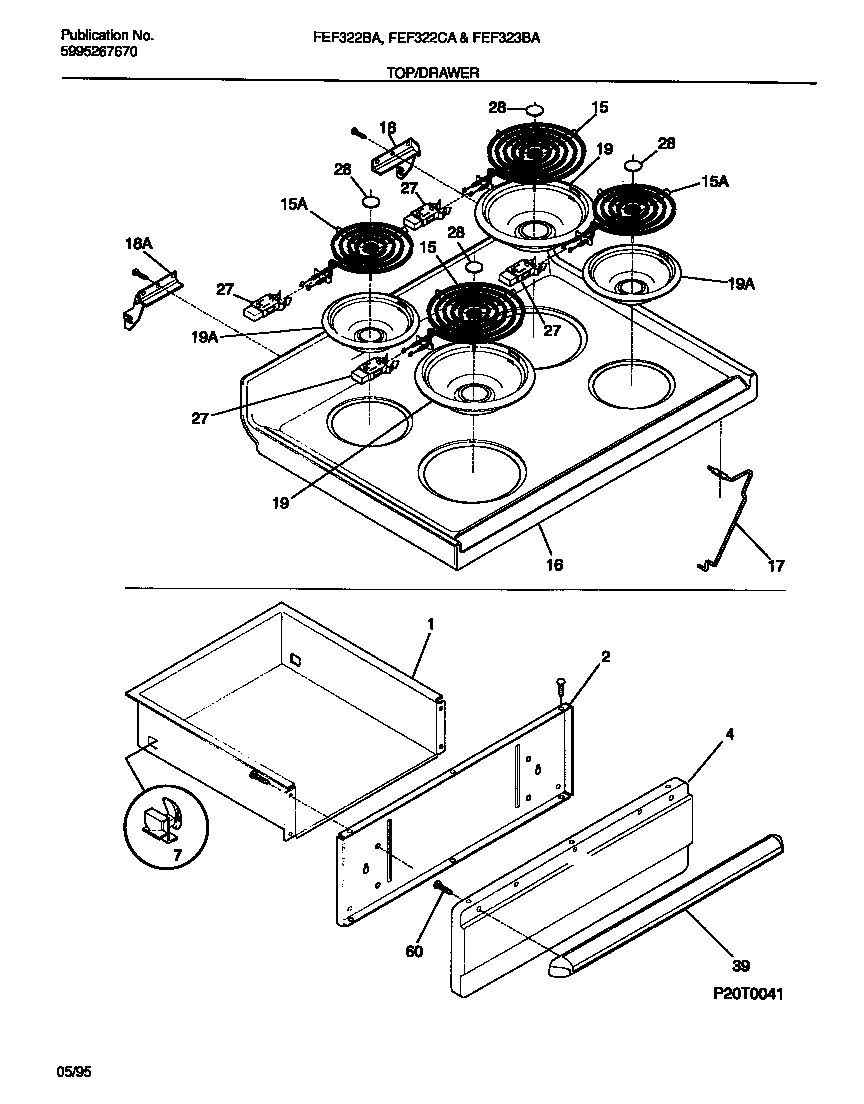

FEF323BAWC 04 – TOP/DRAWER

FEF323BAWC 04 – TOP/DRAWER

Written by

in

FEF323BAWC 04 – TOP/DRAWER

Products

PositionProduct
*93687WCI 5303281379
*93685316058601 Frigidaire Oven Clip
*93688WCI 5303281584
1DRAWER-UTILITY
2SHIELD-PNL
4SCREW, HEX WASHER HEAD, 8-18(AB) X 1/2 (NOT ILLUSTRATED)
4PANEL-BROILER, WHITE
73051163 Frigidaire Oven Range Rear Broiler Drawer Glide
15316442301 Frigidaire Oven 8 Coil Element 2600W
15A318372211 Frigidaire Oven 6" Electric Range Burner Kit
16316202388 Frigidaire Oven Maintop
17316057601 Frigidaire Oven Rod
18HINGE-MAIN TOP (RH)
18AHINGE-MAIN TOP (LH)
19A316222301 Frigidaire Oven 8" Porcelain Drip Bowl Range
19AA316222201 Frigidaire Oven Drip Bowl Assembly
275303935058 Frigidaire Oven Burner Receptacle Kit
285303017715 Frigidaire Medallion
28MEDALLION, STAINLESS STEEL, SURF ELEM
39WCI 316026100
60WCI 5303288574
