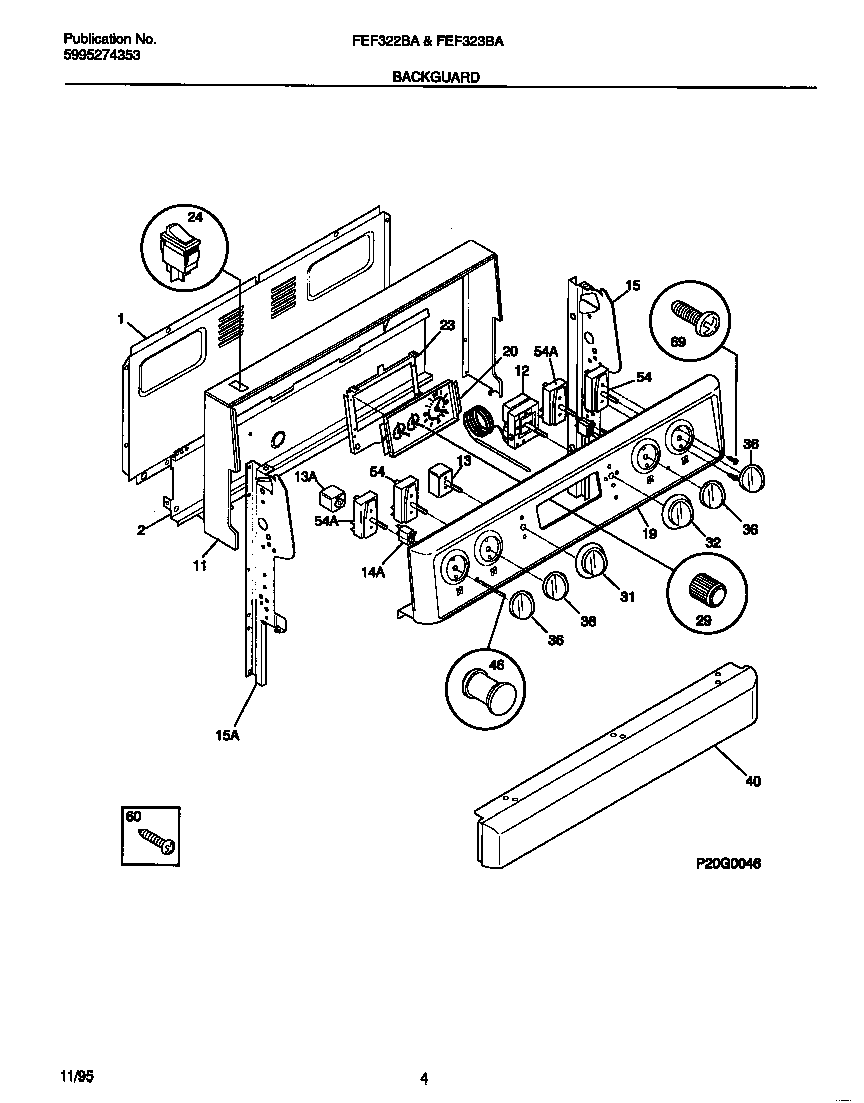

FEF323BAWD 03 – BACKGUARD

FEF323BAWD 03 – BACKGUARD

Written by

in

FEF323BAWD 03 – BACKGUARD

Products

PositionProduct
*01842WCI 5303281584
*01843WCI 5303288574
1WCI 316081601
2WCI 316015907
11WCI 316061841
12THERMOSTAT, OVEN, NON SC
13SWITCH-SELECTOR, 4 POS NSC
13WCI 5303291407
14316022503 Frigidaire Light Lamp P-1
15WCI 316023111
15WCI 316023110
19WCI 316024401
20WCI 316017404
23WCI 316033203
245304527841 Frigidaire Oven Rocker Switch (Black)
29WCI 316029000
31WCI 316054906
32WCI 316054900
36WCI 316025100
40WCI 316025800
46318228310 Frigidaire Oven Lens
54316436001 Frigidaire Oven Range Infinite Burner Switch
545303935086 Frigidaire Oven Top Burner Switch Kit
60316021105 Frigidaire Oven Screw
69SCREW-SWITCH MTG, 8-32 X 3/16, SW TO CNTL PNL, (8)
