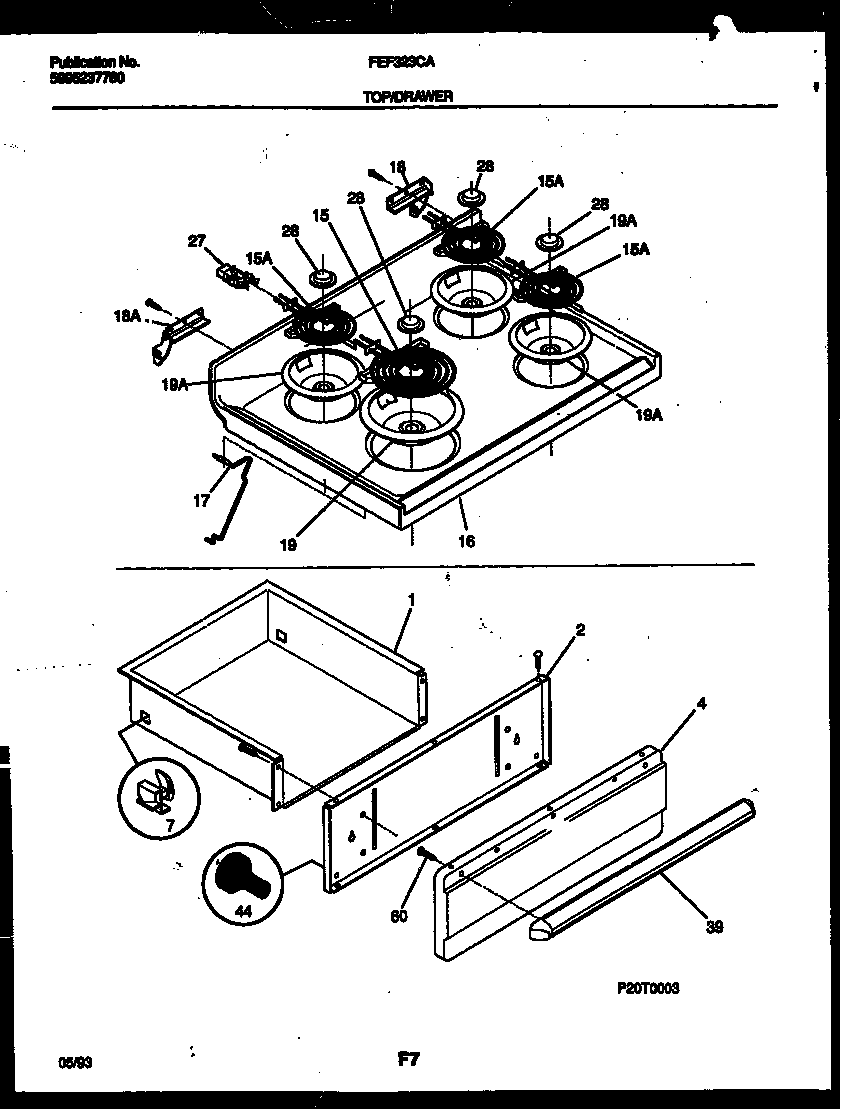

FEF323CASA 04 – COOKTOP AND DRAWER PARTS

FEF323CASA 04 – COOKTOP AND DRAWER PARTS

Written by

in

FEF323CASA 04 – COOKTOP AND DRAWER PARTS

Products

PositionProduct
1AWCI 5303281584
1DRAWER-UTILITY
2SHIELD-PNL
4ASCREW, HEX WASHER HEAD, 8-18(AB) X 1/2 (NOT ILLUSTRATED)
4WCI 316056201
73051163 Frigidaire Oven Range Rear Broiler Drawer Glide
15316442301 Frigidaire Oven 8 Coil Element 2600W
15A318372211 Frigidaire Oven 6" Electric Range Burner Kit
16316202388 Frigidaire Oven Maintop
17316057601 Frigidaire Oven Rod
18HINGE-MAIN TOP (RH)
18B131243700 Frigidaire Screw
18AHINGE-MAIN TOP (LH)
19316048413 Frigidaire Oven Range Chrome 8" Drip Bow
19A316048414 Frigidaire Oven Range Chrome 6" Drip Bowl
275303935058 Frigidaire Oven Burner Receptacle Kit
28MEDALLION, STAINLESS STEEL, SURF ELEM
39WCI 316026101
443131903 Frigidaire Door/Drawer Bumper
60WCI 5303288574
