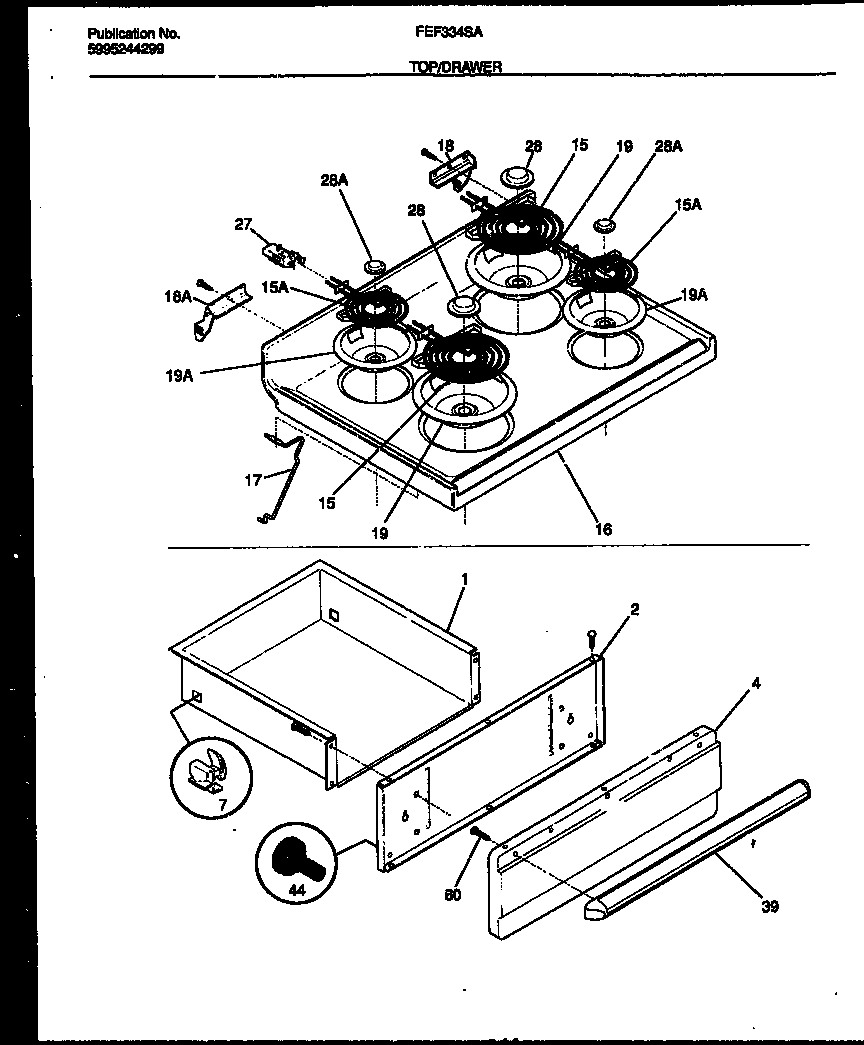

FEF334SAWA 04 – COOKTOP AND DRAWER PARTS

FEF334SAWA 04 – COOKTOP AND DRAWER PARTS

Written by

in

FEF334SAWA 04 – COOKTOP AND DRAWER PARTS

Products

PositionProduct
*97699WCI 5303281584
1DRAWER-UTILITY
2SHIELD-PNL
4WCI 316056202
4ASCREW, HEX WASHER HEAD, 8-18(AB) X 1/2 (NOT ILLUSTRATED)
73051163 Frigidaire Oven Range Rear Broiler Drawer Glide
15A318372211 Frigidaire Oven 6" Electric Range Burner Kit
15316442301 Frigidaire Oven 8 Coil Element 2600W
16MAIN TOP, ALMOND
17316057601 Frigidaire Oven Rod
18A131243700 Frigidaire Screw
18HINGE-MAIN TOP (RH)
18AHINGE-MAIN TOP (LH)
19AA316222201 Frigidaire Oven Drip Bowl Assembly
19A316222301 Frigidaire Oven 8" Porcelain Drip Bowl Range
275303935058 Frigidaire Oven Burner Receptacle Kit
285303017715 Frigidaire Medallion
28AMEDALLION, STAINLESS STEEL, SURF ELEM
39WCI 316026100
443131903 Frigidaire Door/Drawer Bumper
60WCI 5303288574
