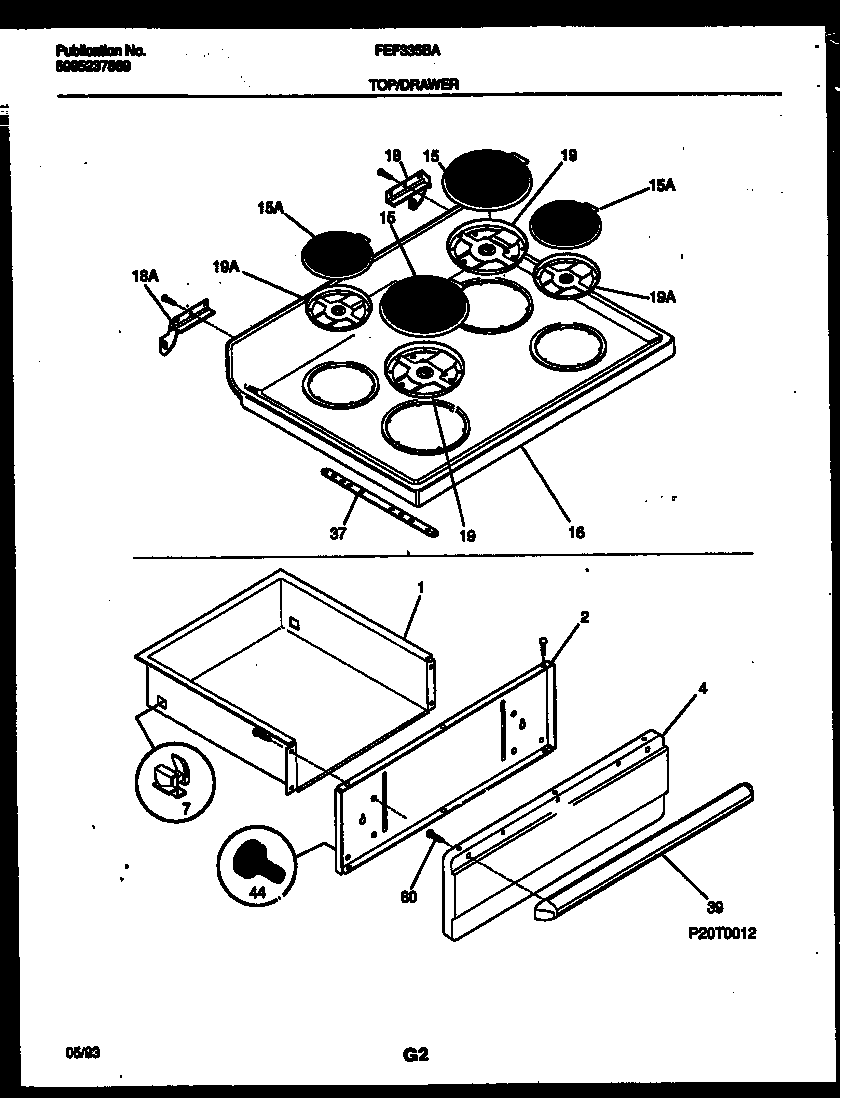

FEF335BADA 04 – COOKTOP AND DRAWER PARTS

Products

Position	Product
1	DRAWER-UTILITY
2	SHIELD-PNL
4	WCI 316056201
4A	SCREW, HEX WASHER HEAD, 8-18(AB) X 1/2 (NOT ILLUSTRATED)
7	3051163 Frigidaire Oven Range Rear Broiler Drawer Glide
15A	WCI 316046300
15	WCI 316046100
16A	CHANNEL, TOP STIFFNER (NON-ILLUSTRATED)
16	WCI 316042902
18A	HINGE-MAIN TOP (LH)
18B	HINGE-MAIN TOP (RH)
18C	131243700 Frigidaire Screw
19A	PAN, ELEMENT SHIELD, SM 6/INCH
19	PAN-ELEMENT SHIELD, MED 8/INCH
37B	NUT 6-M ELEMENT MTG (NON-ILLUSTRATED)
37	STRAP, ELEMENT MTG
37A	WCI 5303281584
39	WCI 316026100
44	3131903 Frigidaire Door/Drawer Bumper
60	WCI 5303288574
