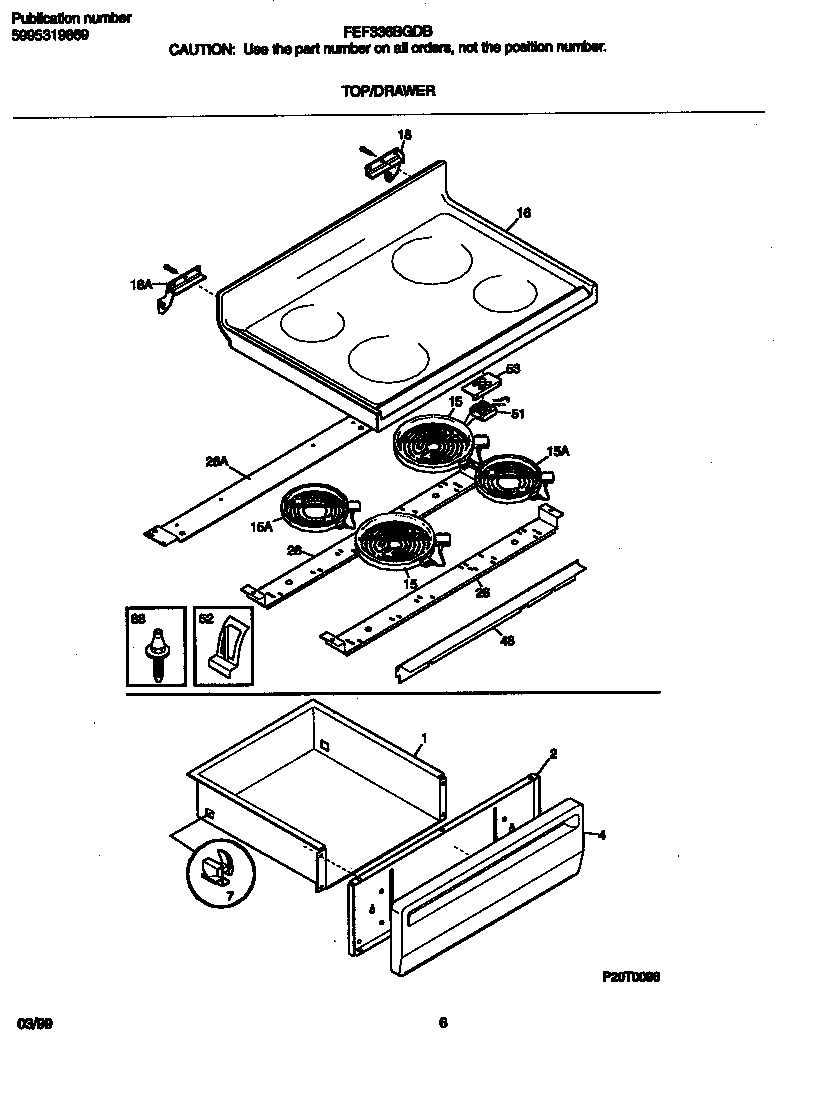

FEF336BGDB 04 – TOP/DRAWER

FEF336BGDB 04 – TOP/DRAWER

Written by

in

FEF336BGDB 04 – TOP/DRAWER

Products

PositionProduct
*20816WCI 316089600
*20819SCREW, HEX WASHER HEAD, 8-18(AB) X 1/2 (NOT ILLUSTRATED)
*20817WCI 5303280311
*20815Clip,wiring harness ,green ,main top
*20812Screw,cup pt ,8-18 x 0.375 ,chrome
*20813316021109 Frigidaire Oven Screw
*20818WCI 5309951550
1DRAWER-UTILITY
2SHIELD-PNL
4WCI 316084406
73051163 Frigidaire Oven Range Rear Broiler Drawer Glide
10WCI 5303280308
15318198817 Frigidaire Oven Element
15318198834 Frigidaire Oven Element
16WCI 316098104
18HINGE-MAIN TOP (RH)
18HINGE-MAIN TOP (LH)
26WCI 316099101
26WCI 316099201
48WCI 316100200
51WCI 80142193
52Clip,element mtg
53WCI 316099300
88316099500 Frigidaire Oven Pin
