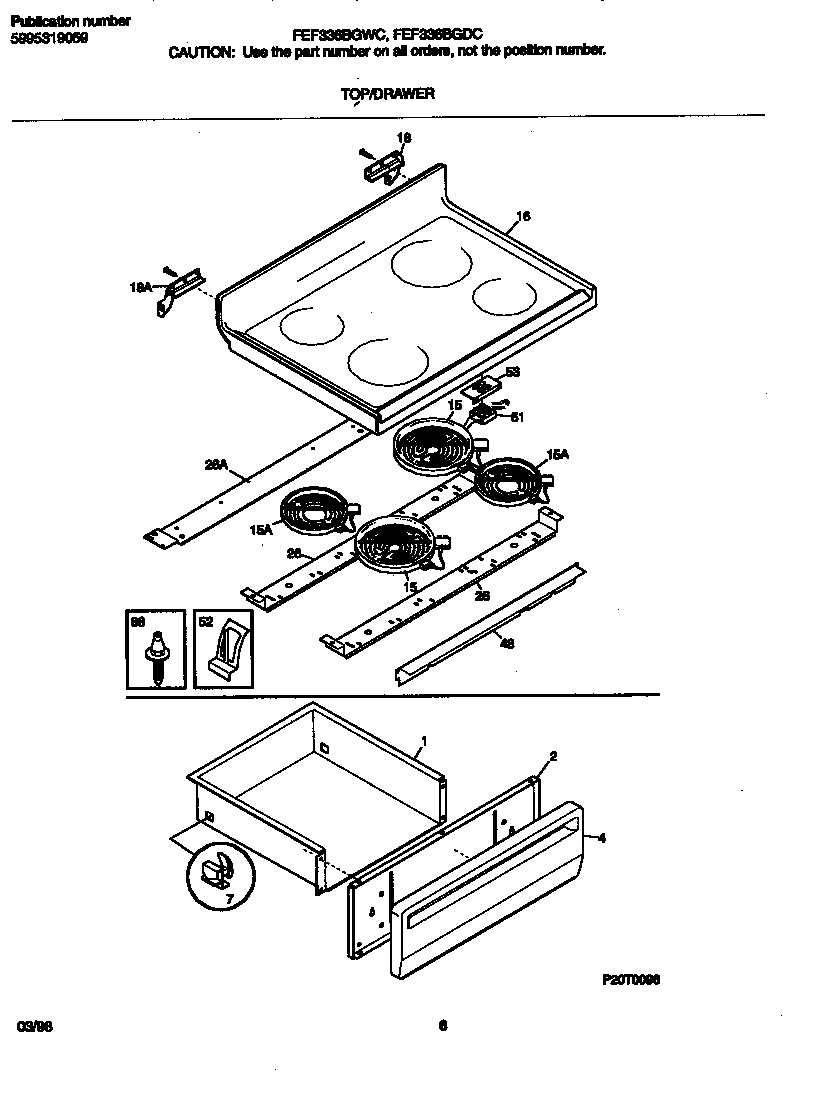

FEF336BGDC 04 – TOP/DRAWER

FEF336BGDC 04 – TOP/DRAWER

Written by

in

FEF336BGDC 04 – TOP/DRAWER

Products

PositionProduct
*61774WCI 316112101
*61776SCREW, HEX WASHER HEAD, 8-18(AB) X 1/2 (NOT ILLUSTRATED)
*61775WCI 5303280311
*61773WCI 316089600
*61772Clip,wiring harness ,green ,main top
*61768Screw,cup pt ,8-18 x 0.375 ,chrome
*61769316021109 Frigidaire Oven Screw
1DRAWER-UTILITY
2SHIELD-PNL
4WCI 316084406
73051163 Frigidaire Oven Range Rear Broiler Drawer Glide
10WCI 5303280308
15318198834 Frigidaire Oven Element
15318198817 Frigidaire Oven Element
16WCI 316098104
18HINGE-MAIN TOP (LH)
18HINGE-MAIN TOP (RH)
26WCI 316099201
26WCI 316099101
48WCI 316100200
51WCI 80142193
52Clip,element mtg
53WCI 316099300
60316021105 Frigidaire Oven Screw
88316099500 Frigidaire Oven Pin
