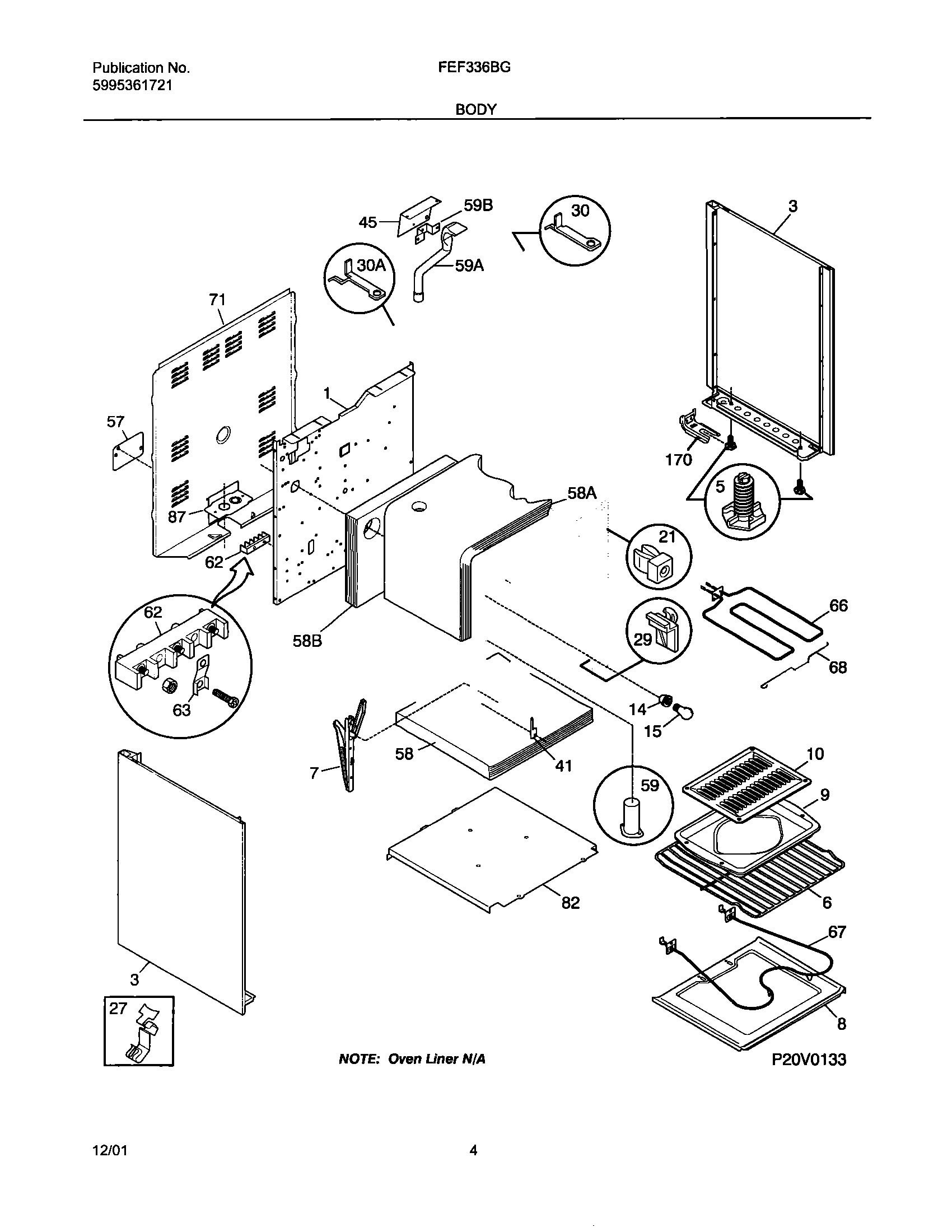

FEF336BGDF 05 – BODY

FEF336BGDF 05 – BODY

Written by

in

FEF336BGDF 05 – BODY

Products

PositionProduct
NI5303321321 Frigidaire Refrigerator Black Touch-Up Paint
NI316205500 Frigidaire Oven Nut
NIClip,wiring harness ,green ,main top
NI3203550 Frigidaire Oven Plug
NI5308014215 Frigidaire Oven Screw
NITOUCH, UP PAINT, ALMOND (NI)
NIScrew,cup pt ,8-18 x 0.375 ,chrome
NI316021105 Frigidaire Oven Screw
1WCI 316080805
3WCI 316081037
3WCI 316081036
5WCI 316129200
6316067902 Frigidaire Oven Rack
7Hinge,oven door ,(2)
8PANEL-OVEN BOTTOM
9WCI 316081900
10Insert,broiler panOPTIONAL ACCESS0RY
14316116400 Frigidaire Oven Light Socket
15316538904 Frigidaire Oven Lamp Light
21SPACER-BODYSIDE, (8)
275303284616 Frigidaire Range Bulb Clip Thermostat
293051162 Frigidaire Oven Range Front Broiler Drawer Glide
41WCI 3131570
45WCI 316066100
57WCI 316081100
58316403803 Frigidaire Insulation
58B316054202 Frigidaire Insulation
58A316047707 Frigidaire Insulation
59BBRACKET-MOUNTING,VENT TUBE
59WCI 316073603
59AWCI 316023600
625304409888 Frigidaire Oven Terminal Block with Hardware
63PLATE=GROUND STRAP
665303051140 Frigidaire Broil Element
67316075103 Frigidaire Oven Bake Element
68316203400 Frigidaire Oven Support
71WCI 316015810
82WCI 5303289913
87316081200 Frigidaire Oven Bracket
170316112005 Frigidaire Oven Anti-Tip Range Bracket Kit
170316116000 Frigidaire Screw
170316112500 Frigidaire Oven Template
