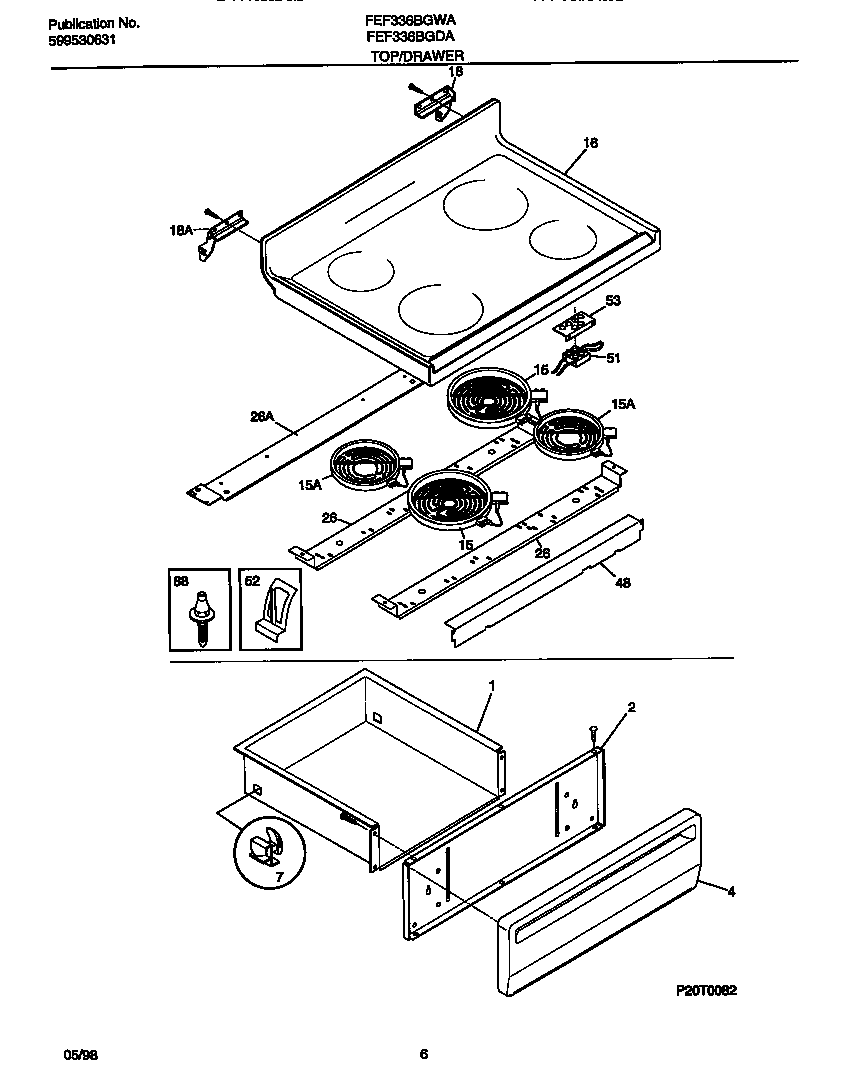

FEF336BGWA 04 – TOP/DRAWER

FEF336BGWA 04 – TOP/DRAWER

Written by

in

FEF336BGWA 04 – TOP/DRAWER

Products

PositionProduct
*73057316021105 Frigidaire Oven Screw
*73060WCI 5303280311
*73061WCI 5309951550
*73059Clip,wiring harness ,green ,main top
*73058Screw,cup pt ,8-18 x 0.375 ,chrome
*73055316021109 Frigidaire Oven Screw
1DRAWER-UTILITY
2SHIELD-PNL
4WCI 316084405
73051163 Frigidaire Oven Range Rear Broiler Drawer Glide
10WCI 5303280308
15A318198817 Frigidaire Oven Element
15B318198834 Frigidaire Oven Element
16WCI 316098103
18BWCI 5303288420
18HINGE-MAIN TOP (LH)
18AHINGE-MAIN TOP (RH)
26WCI 316099101
26WCI 316099201
48WCI 316100200
52Clip,element mtg
53WCI 316099300
60316089500 Frigidaire Oven Screw
88316099500 Frigidaire Oven Pin
