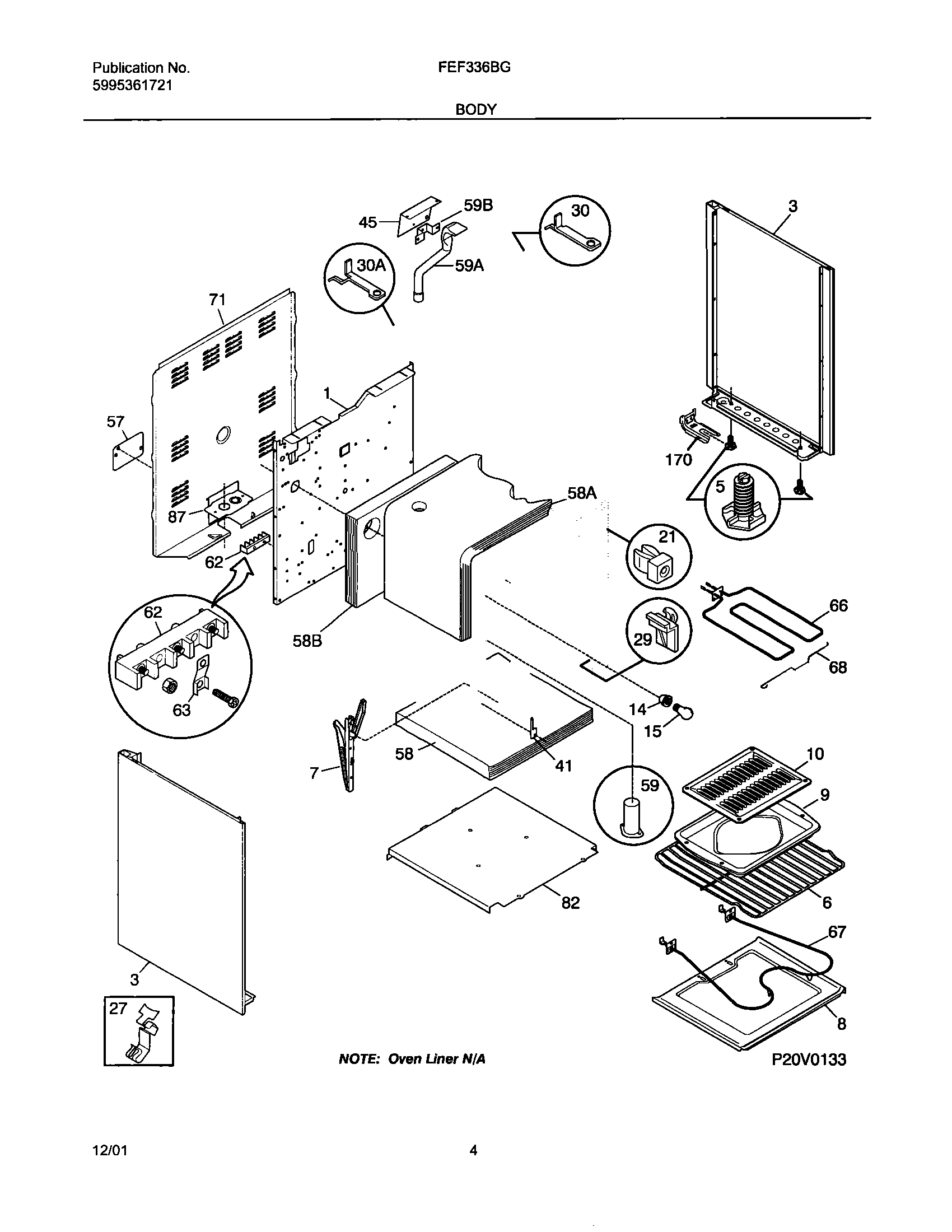

FEF336BGWF 05 – BODY

FEF336BGWF 05 – BODY

Written by

in

FEF336BGWF 05 – BODY

Products

PositionProduct
NI5303321321 Frigidaire Refrigerator Black Touch-Up Paint
NI316205500 Frigidaire Oven Nut
NIClip,wiring harness ,green ,main top
NI3203550 Frigidaire Oven Plug
NI5308014215 Frigidaire Oven Screw
NI5303321319 Frigidaire Refrigerator White Touch Up Paint
NIScrew,cup pt ,8-18 x 0.375 ,chrome
NI316021105 Frigidaire Oven Screw
1WCI 316080805
3WCI 316081034
3WCI 316081035
5WCI 316129200
6316067902 Frigidaire Oven Rack
7Hinge,oven door ,(2)
8PANEL-OVEN BOTTOM
9WCI 316081900
10Insert,broiler panOPTIONAL ACCESS0RY
14316116400 Frigidaire Oven Light Socket
15316538904 Frigidaire Oven Lamp Light
21SPACER-BODYSIDE, (8)
275303284616 Frigidaire Range Bulb Clip Thermostat
293051162 Frigidaire Oven Range Front Broiler Drawer Glide
41WCI 3131570
45WCI 316066100
57WCI 316081100
58A316047707 Frigidaire Insulation
58B316054202 Frigidaire Insulation
58316403803 Frigidaire Insulation
59AWCI 316023600
59BBRACKET-MOUNTING,VENT TUBE
59WCI 316073603
625304409888 Frigidaire Oven Terminal Block with Hardware
63PLATE=GROUND STRAP
665303051140 Frigidaire Broil Element
67316075103 Frigidaire Oven Bake Element
68316203400 Frigidaire Oven Support
71WCI 316015810
82WCI 5303289913
87316081200 Frigidaire Oven Bracket
170316116000 Frigidaire Screw
170316112005 Frigidaire Oven Anti-Tip Range Bracket Kit
170316112500 Frigidaire Oven Template
