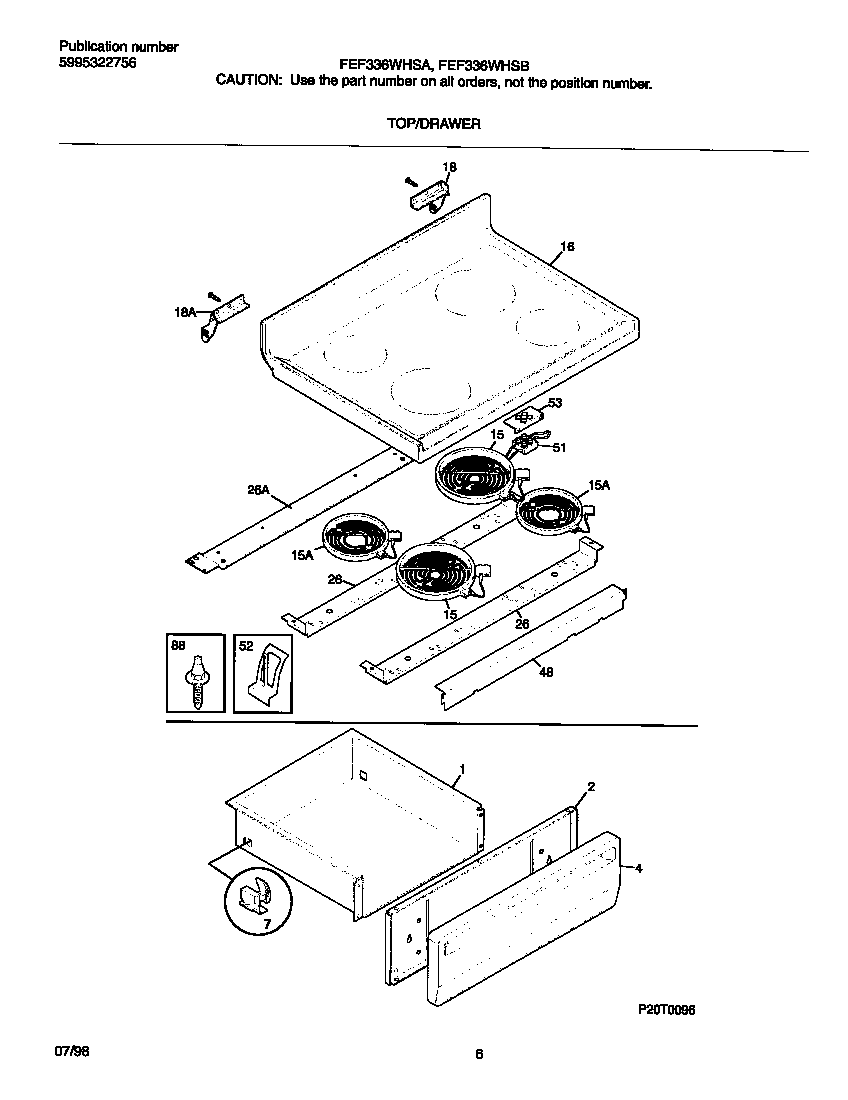

FEF336WHSB 04 – TOP/DRAWER

FEF336WHSB 04 – TOP/DRAWER

Written by

in

FEF336WHSB 04 – TOP/DRAWER

Products

PositionProduct
*86415WCI 316089600
*86417WCI 5303280311
*86416WCI 316112101
*86414Clip,wiring harness ,green ,main top
*86411Screw,cup pt ,8-18 x 0.375 ,chrome
*86412316021109 Frigidaire Oven Screw
1DRAWER-UTILITY
2SHIELD-PNL
4WCI 316084405
73051163 Frigidaire Oven Range Rear Broiler Drawer Glide
15318198817 Frigidaire Oven Element
15318198834 Frigidaire Oven Element
16Panel-main top,white ,smooth top assy
18HINGE-MAIN TOP (LH)
18HINGE-MAIN TOP (RH)
26WCI 316099201
26WCI 316099101
48WCI 316100200
51WCI 80142193
52Clip,element mtg
53WCI 316099300
88316099500 Frigidaire Oven Pin
