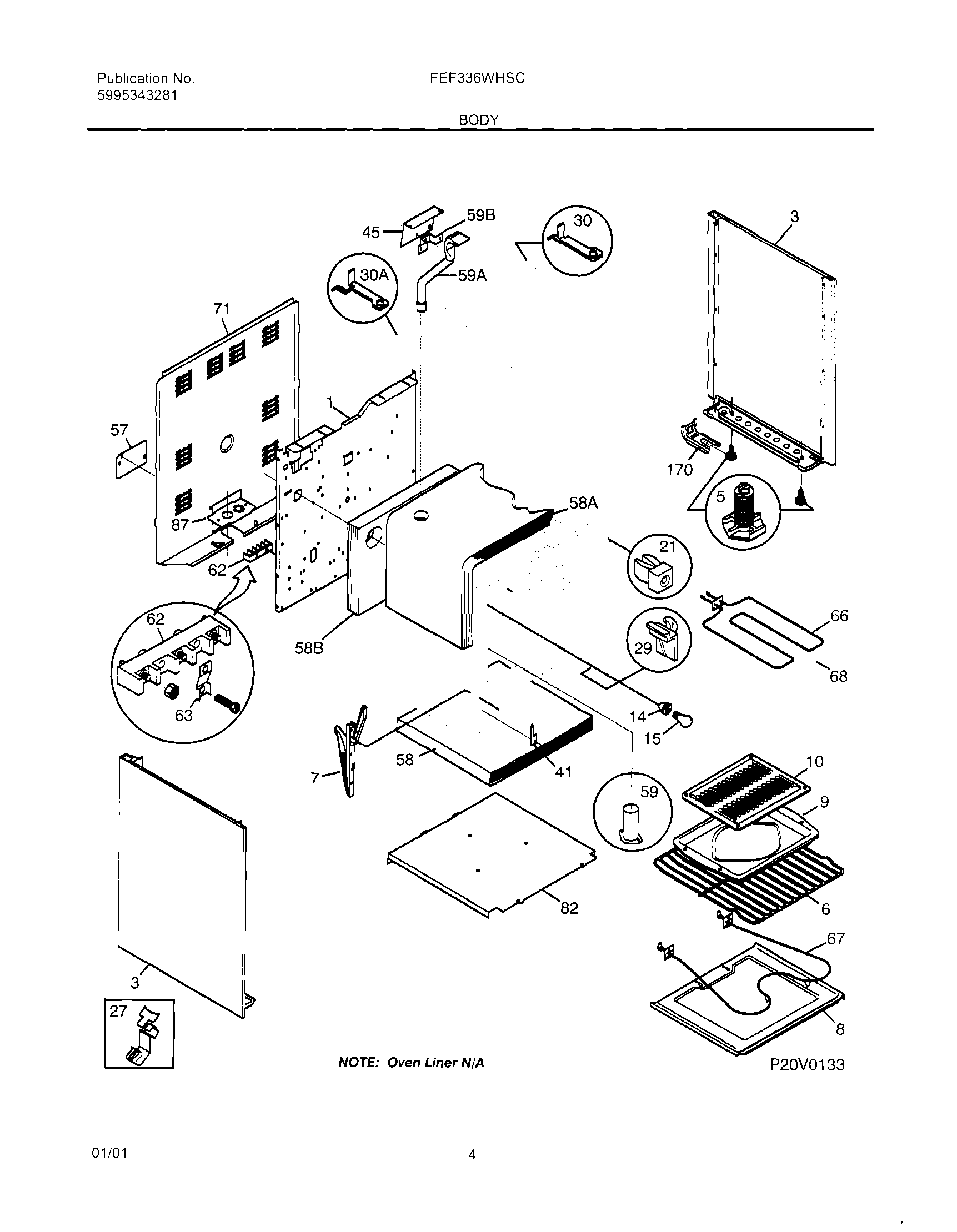

FEF336WHSC 05 – BODY

FEF336WHSC 05 – BODY

Written by

in

FEF336WHSC 05 – BODY

Products

PositionProduct
NI316021105 Frigidaire Oven Screw
NI3203550 Frigidaire Oven Plug
NIClip,wiring harness ,green ,main top
NI316205500 Frigidaire Oven Nut
1WCI 316080803
3WCI 316081034
3WCI 316081035
5WCI 316129200
6316067902 Frigidaire Oven Rack
7HINGE-OVEN DOOR,ASSEMBLY
8PANEL-OVEN BOTTOM
9WCI 316081900
10Insert,broiler panOPTIONAL ACCESS0RY
14316116400 Frigidaire Oven Light Socket
15316538904 Frigidaire Oven Lamp Light
21SPACER-BODYSIDE, (8)
275303284616 Frigidaire Range Bulb Clip Thermostat
293051162 Frigidaire Oven Range Front Broiler Drawer Glide
30BRACKET-HINGE, MAIN TOP RH
30BRACKET-HINGE, MAIN TOP, LH
41WCI 3131570
45WCI 316066100
57WCI 316081100
58316403803 Frigidaire Insulation
58316054202 Frigidaire Insulation
58316047707 Frigidaire Insulation
59BRACKET-MOUNTING,VENT TUBE
59WCI 316073603
59WCI 316023600
625304409888 Frigidaire Oven Terminal Block with Hardware
63PLATE=GROUND STRAP
665303051140 Frigidaire Broil Element
67316075103 Frigidaire Oven Bake Element
68316203400 Frigidaire Oven Support
71WCI 316015804
82WCI 5303289913
87316081200 Frigidaire Oven Bracket
170316112005 Frigidaire Oven Anti-Tip Range Bracket Kit
170316116000 Frigidaire Screw
170316112500 Frigidaire Oven Template
