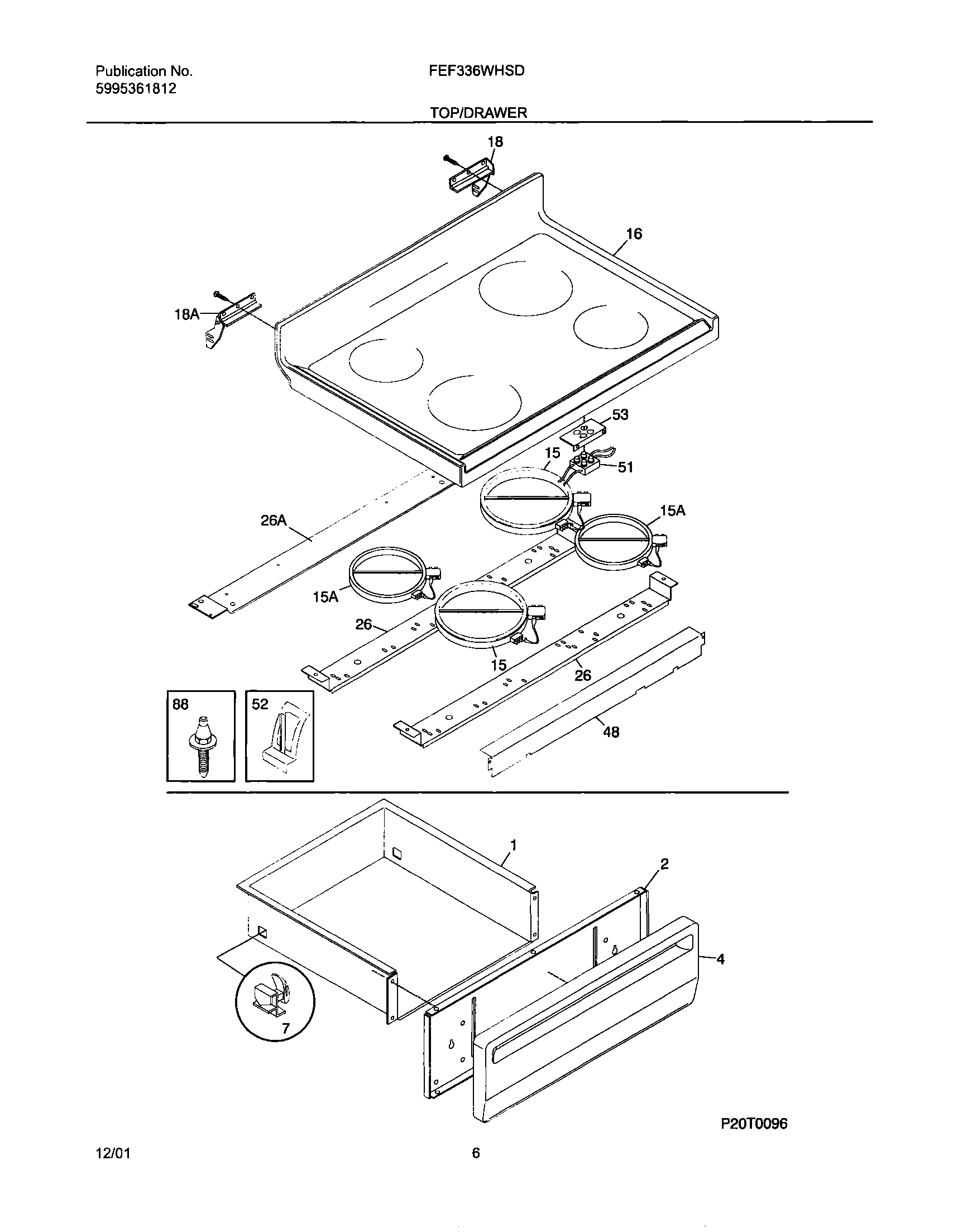

FEF336WHSD 07 – TOP/DRAWER

FEF336WHSD 07 – TOP/DRAWER

Written by

in

FEF336WHSD 07 – TOP/DRAWER

Products

PositionProduct
NI316021105 Frigidaire Oven Screw
NIWCI 316112101
NIWCI 316001746
NIWCI 5303280311
NIClip,wiring harness ,green ,main top
NI5308014215 Frigidaire Oven Screw
NI316021109 Frigidaire Oven Screw
1WCI 316011503
2WCI 5303288582
4WCI 316084405
73051163 Frigidaire Oven Range Rear Broiler Drawer Glide
15A318198834 Frigidaire Oven Element
15318178110 Frigidaire Oven Range 6" Surface Element
16Panel-main top,white ,smooth top assy
18AHINGE-MAIN TOP (LH)
18HINGE-MAIN TOP (RH)
26AWCI 316099200
26Channel-support,element ,galv steel ,(2)
48WCI 316100200
51Light/Lamp,hot surface ind ,assy
52Clip,element mtg
53WCI 316099300
88316099500 Frigidaire Oven Pin
