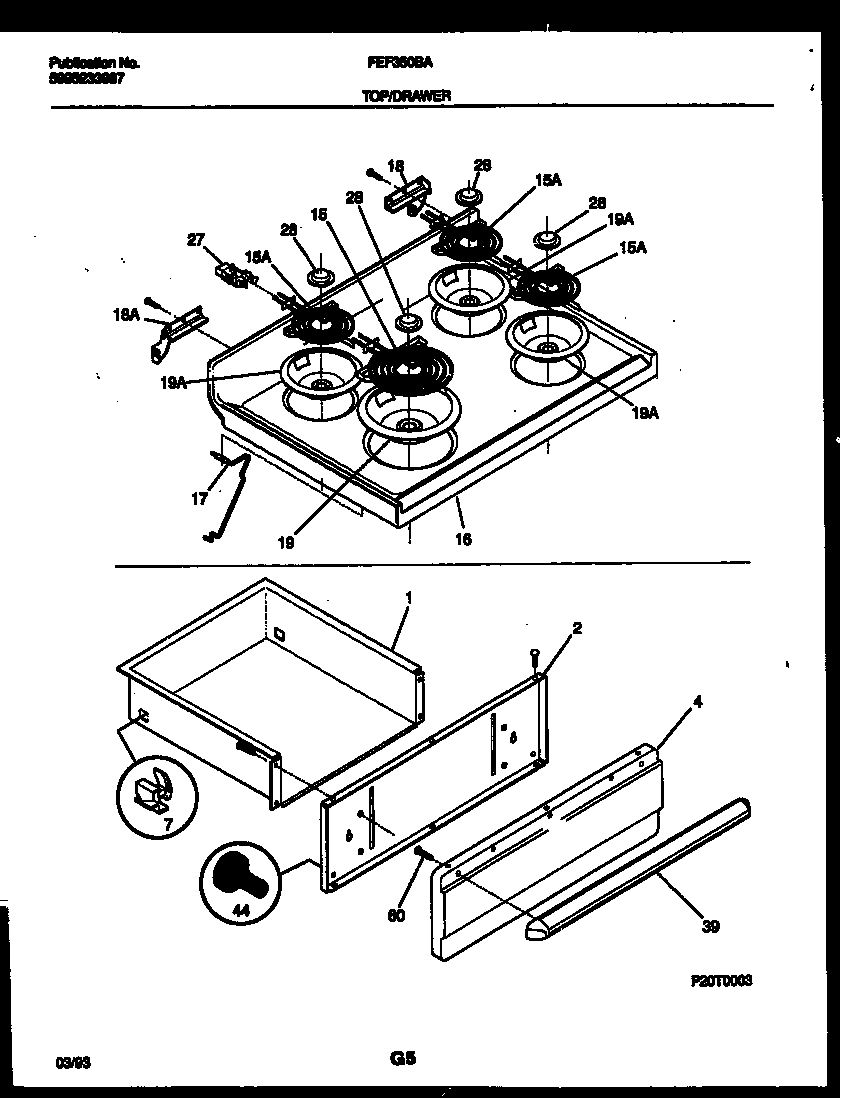

FEF350BADA 05 – COOKTOP AND DRAWER PARTS

Products

Position	Product
1A	WCI 5303281584
1	DRAWER-UTILITY
2	SHIELD-PNL
4	WCI 316056202
4A	SCREW, HEX WASHER HEAD, 8-18(AB) X 1/2 (NOT ILLUSTRATED)
7	3051163 Frigidaire Oven Range Rear Broiler Drawer Glide
15A	318372211 Frigidaire Oven 6" Electric Range Burner Kit
15	316442301 Frigidaire Oven 8 Coil Element 2600W
16	MAIN TOP, ALMOND
17	316057601 Frigidaire Oven Rod
18A	131243700 Frigidaire Screw
18A	HINGE-MAIN TOP (LH)
18	HINGE-MAIN TOP (RH)
19	A316222301 Frigidaire Oven 8" Porcelain Drip Bowl Range
19A	A316222201 Frigidaire Oven Drip Bowl Assembly
27	5303935058 Frigidaire Oven Burner Receptacle Kit
28	5303017715 Frigidaire Medallion
39	WCI 316026100
44	3131903 Frigidaire Door/Drawer Bumper
60	WCI 5303288574
