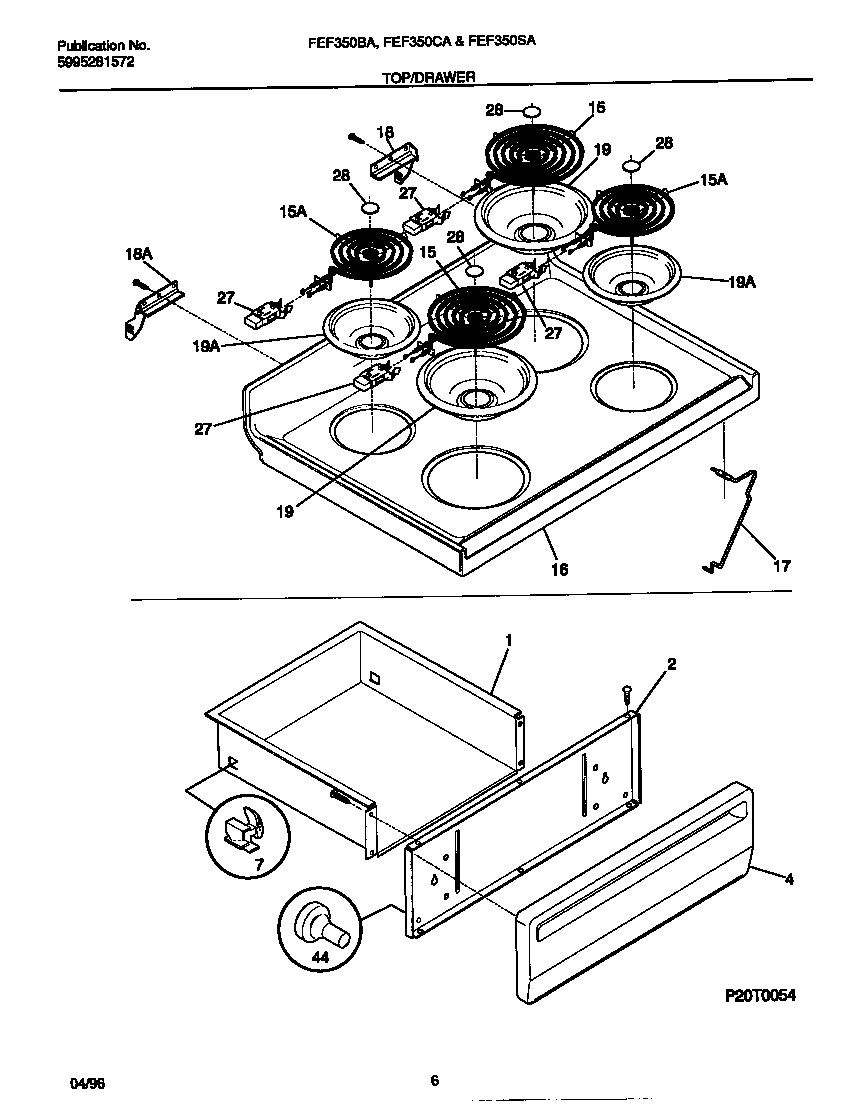

FEF350BADF 04 – TOP/DRAWER

FEF350BADF 04 – TOP/DRAWER

Written by

in

FEF350BADF 04 – TOP/DRAWER

Products

PositionProduct
*38566RIVET-POP, WARING-PLATE
*38567WCI 316001725
*38568Screw,cup pt ,8-18 x 0.375 ,chrome
*38569WCI 5303280311
*38570131243700 Frigidaire Screw
1DRAWER-UTILITY
2SHIELD-PNL
4WCI 316084406
4SCREW, HEX WASHER HEAD, 8-18(AB) X 1/2 (NOT ILLUSTRATED)
4316021109 Frigidaire Oven Screw
73051163 Frigidaire Oven Range Rear Broiler Drawer Glide
15318372211 Frigidaire Oven 6" Electric Range Burner Kit
15316442301 Frigidaire Oven 8 Coil Element 2600W
16WCI 316020908
17316057601 Frigidaire Oven Rod
18HINGE-MAIN TOP (RH)
18HINGE-MAIN TOP (LH)
19A316222201 Frigidaire Oven Drip Bowl Assembly
19A316222301 Frigidaire Oven 8" Porcelain Drip Bowl Range
275303935058 Frigidaire Oven Burner Receptacle Kit
285303017715 Frigidaire Medallion
28WCI 5303296595
443131903 Frigidaire Door/Drawer Bumper
