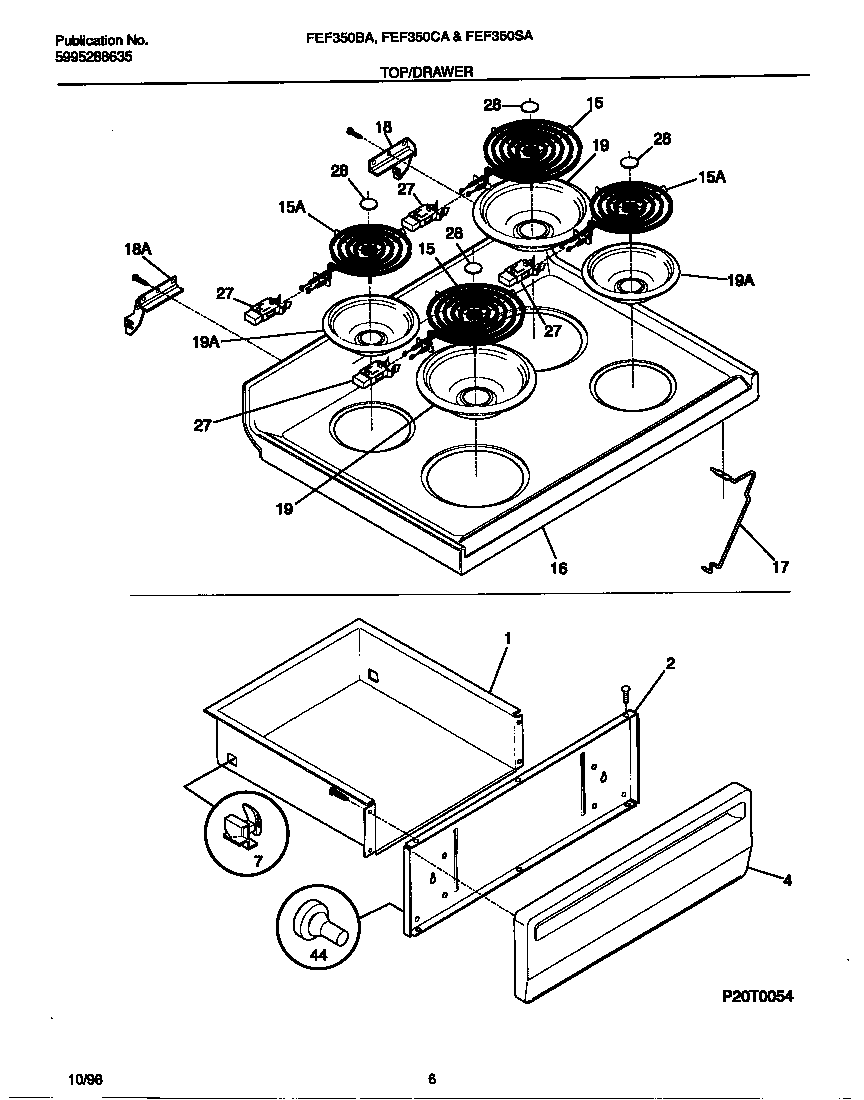

FEF350BAWH 04 – TOP/DRAWER

Products

Position	Product
*29284	WCI 316001725
*29287	131243700 Frigidaire Screw
*29286	WCI 5303280311
*29285	Screw,cup pt ,8-18 x 0.375 ,chrome
1	DRAWER-UTILITY
2	SHIELD-PNL
4	SCREW, HEX WASHER HEAD, 8-18(AB) X 1/2 (NOT ILLUSTRATED)
4	WCI 316084405
7	3051163 Frigidaire Oven Range Rear Broiler Drawer Glide
15	316442301 Frigidaire Oven 8 Coil Element 2600W
15	318372211 Frigidaire Oven 6" Electric Range Burner Kit
16	316202388 Frigidaire Oven Maintop
17	316057601 Frigidaire Oven Rod
18A	HINGE-MAIN TOP (RH)
18B	RIVET-POP, WARING-PLATE
18	HINGE-MAIN TOP (LH)
19	A316222201 Frigidaire Oven Drip Bowl Assembly
19	A316222301 Frigidaire Oven 8" Porcelain Drip Bowl Range
27	5303935058 Frigidaire Oven Burner Receptacle Kit
28	WCI 5303296595
28	5303017715 Frigidaire Medallion
44	3131903 Frigidaire Door/Drawer Bumper
