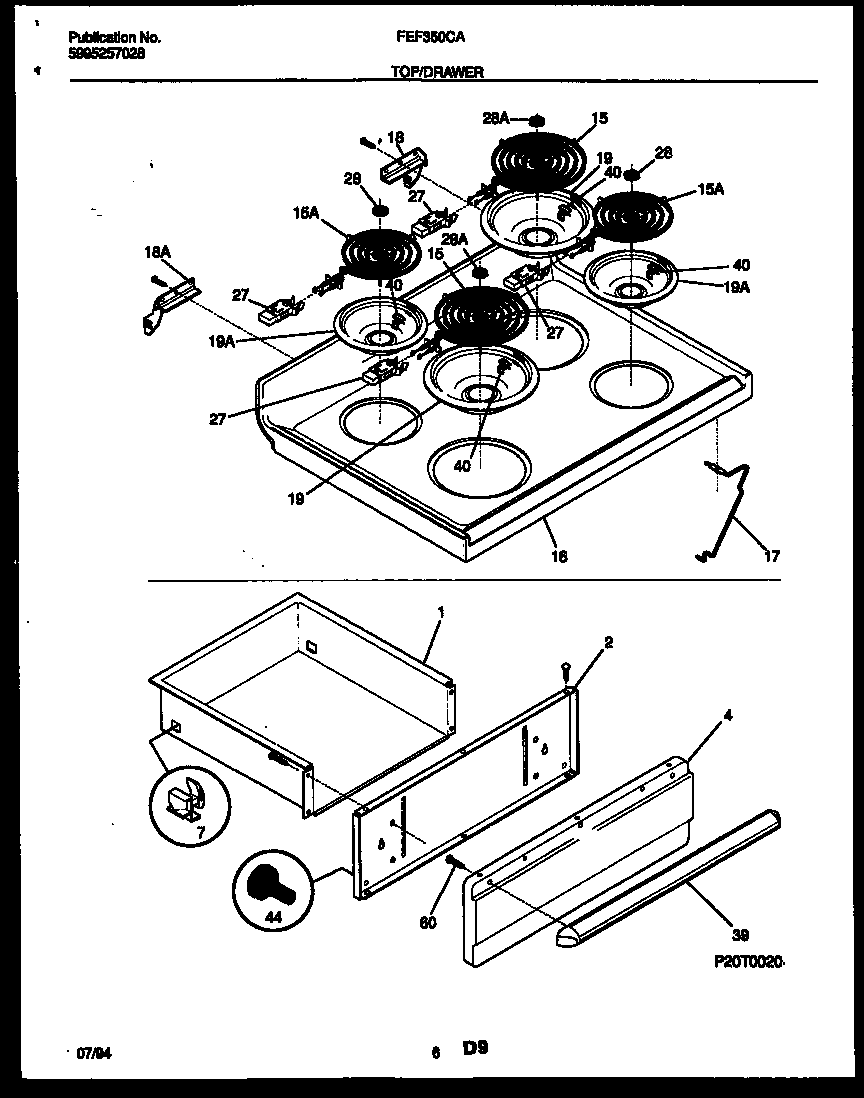

FEF350CASB 04 – COOKTOP AND DRAWER PARTS

FEF350CASB 04 – COOKTOP AND DRAWER PARTS

Written by

in

FEF350CASB 04 – COOKTOP AND DRAWER PARTS

Products

PositionProduct
*10833WCI 5303281584
1DRAWER-UTILITY
2SHIELD-PNL
4WCI 316056206
4ASCREW, HEX WASHER HEAD, 8-18(AB) X 1/2 (NOT ILLUSTRATED)
73051163 Frigidaire Oven Range Rear Broiler Drawer Glide
15A318372211 Frigidaire Oven 6" Electric Range Burner Kit
15316442301 Frigidaire Oven 8 Coil Element 2600W
16WCI 316020908
17316057601 Frigidaire Oven Rod
18B131243700 Frigidaire Screw
18AHINGE-MAIN TOP (LH)
18HINGE-MAIN TOP (RH)
19A316222301 Frigidaire Oven 8" Porcelain Drip Bowl Range
19AA316222201 Frigidaire Oven Drip Bowl Assembly
285303017715 Frigidaire Medallion
28AWCI 5303296595
39WCI 316026100
40316058601 Frigidaire Oven Clip
443131903 Frigidaire Door/Drawer Bumper
60WCI 5303288574
