FEF350CASE 04 – TOP/DRAWER

FEF350CASE 04 – TOP/DRAWER

Written by

in

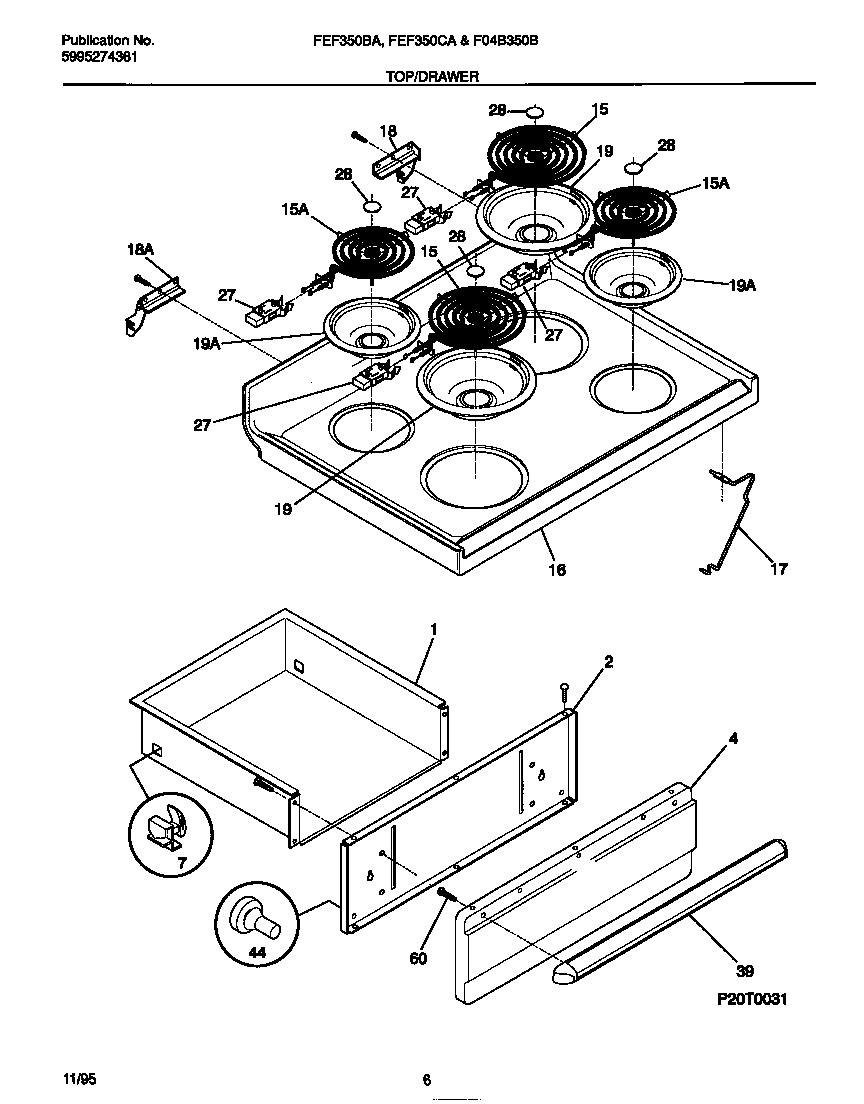

FEF350CASE 04 – TOP/DRAWER

Products

PositionProduct
*11727RIVET-POP, WARING-PLATE
*11729WCI 5303281584
*11730WCI 5303288574
*11728WCI 316001725
*11726131243700 Frigidaire Screw
1DRAWER-UTILITY
2SHIELD-PNL
4SCREW, HEX WASHER HEAD, 8-18(AB) X 1/2 (NOT ILLUSTRATED)
4PANEL-BROILER, WHITE
73051163 Frigidaire Oven Range Rear Broiler Drawer Glide
15318372211 Frigidaire Oven 6" Electric Range Burner Kit
15316442301 Frigidaire Oven 8 Coil Element 2600W
16316202388 Frigidaire Oven Maintop
17316057601 Frigidaire Oven Rod
18HINGE-MAIN TOP (RH)
18HINGE-MAIN TOP (LH)
19WCI 316048411
19WCI 316048408
275303935058 Frigidaire Oven Burner Receptacle Kit
28BWCI 5303296595
28A5303017715 Frigidaire Medallion
39WCI 316026103
443131903 Frigidaire Door/Drawer Bumper
