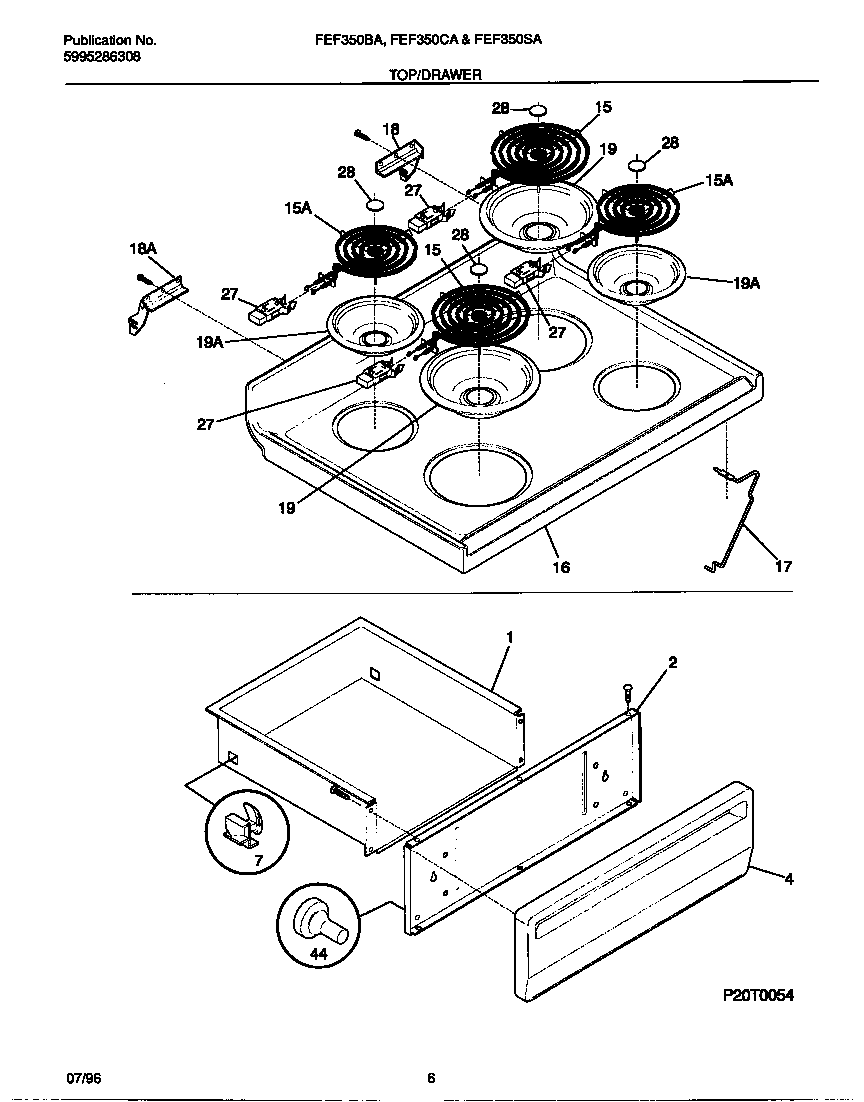

FEF350CASG 04 – TOP/DRAWER

FEF350CASG 04 – TOP/DRAWER

Written by

in

FEF350CASG 04 – TOP/DRAWER

Products

PositionProduct
*56884RIVET-POP, WARING-PLATE
*56888131243700 Frigidaire Screw
*56886WCI 5303280311
*56887Screw,cup pt ,8-18 x 0.375 ,chrome
*56885WCI 316001725
1DRAWER-UTILITY
2SHIELD-PNL
4WCI 316084405
4SCREW, HEX WASHER HEAD, 8-18(AB) X 1/2 (NOT ILLUSTRATED)
73051163 Frigidaire Oven Range Rear Broiler Drawer Glide
15316442301 Frigidaire Oven 8 Coil Element 2600W
15318372211 Frigidaire Oven 6" Electric Range Burner Kit
16316202388 Frigidaire Oven Maintop
17316057601 Frigidaire Oven Rod
18HINGE-MAIN TOP (LH)
18HINGE-MAIN TOP (RH)
19WCI 316048408
19WCI 316048411
275303935058 Frigidaire Oven Burner Receptacle Kit
285303017715 Frigidaire Medallion
28WCI 5303296595
443131903 Frigidaire Door/Drawer Bumper
