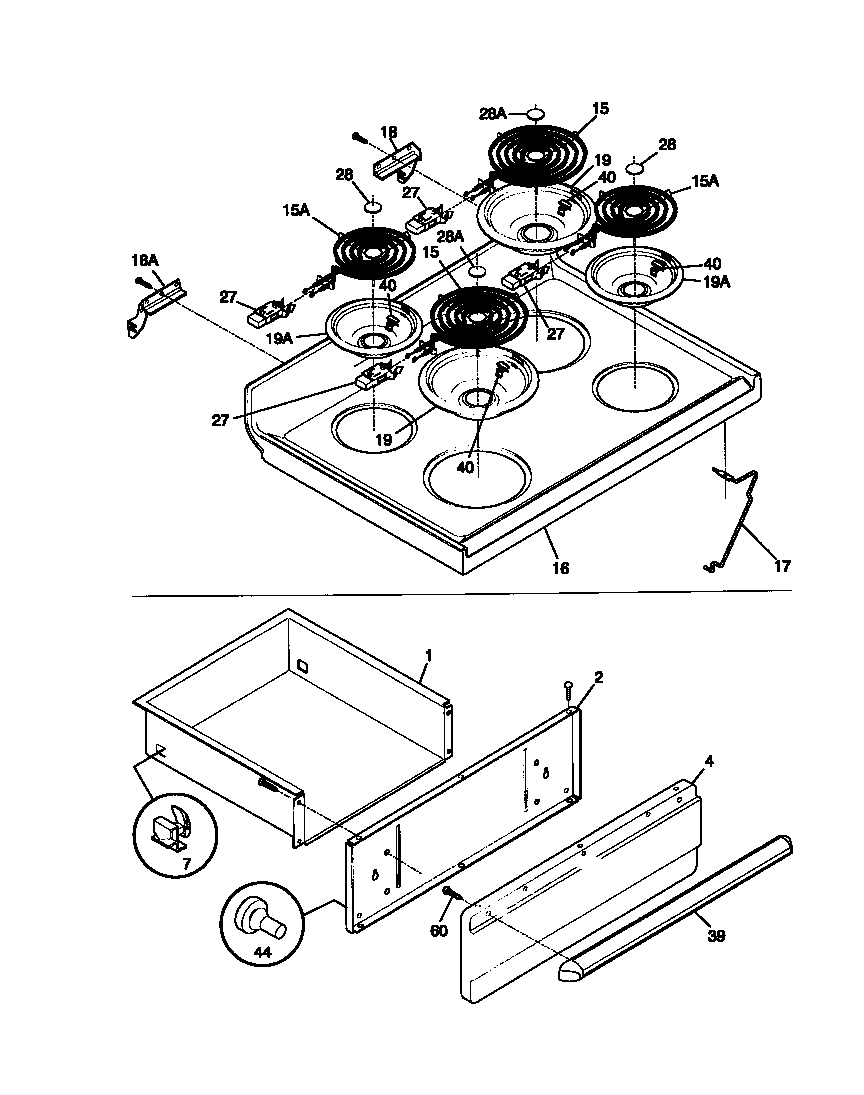

FEF350CCTA 04 – TOP, DRAWER

Products

Position	Product
*70169	131243700 Frigidaire Screw
*70168	WCI 5303281584
*70167	WCI 5303281379
1	DRAWER-UTILITY
2	SHIELD-PNL
4A	WCI 316056206
4B	SCREW, HEX WASHER HEAD, 8-18(AB) X 1/2 (NOT ILLUSTRATED)
7	3051163 Frigidaire Oven Range Rear Broiler Drawer Glide
15	316442301 Frigidaire Oven 8 Coil Element 2600W
15	318372211 Frigidaire Oven 6" Electric Range Burner Kit
16	WCI 316020908
17	316057601 Frigidaire Oven Rod
18	HINGE-MAIN TOP (RH)
18	HINGE-MAIN TOP (LH)
19	PAN-SURFACE ELEMENT,ALMOND ,LARGE/8 INCH,(2)
19	PAN-SURFACE ELEMENT,ALMOND ,SMALL/6 INCH,(2)
27	5303935058 Frigidaire Oven Burner Receptacle Kit
28	WCI 5303296595
28	5303017715 Frigidaire Medallion
39	WCI 316026102
40	316058601 Frigidaire Oven Clip
44	3131903 Frigidaire Door/Drawer Bumper
60	WCI 5303288574
