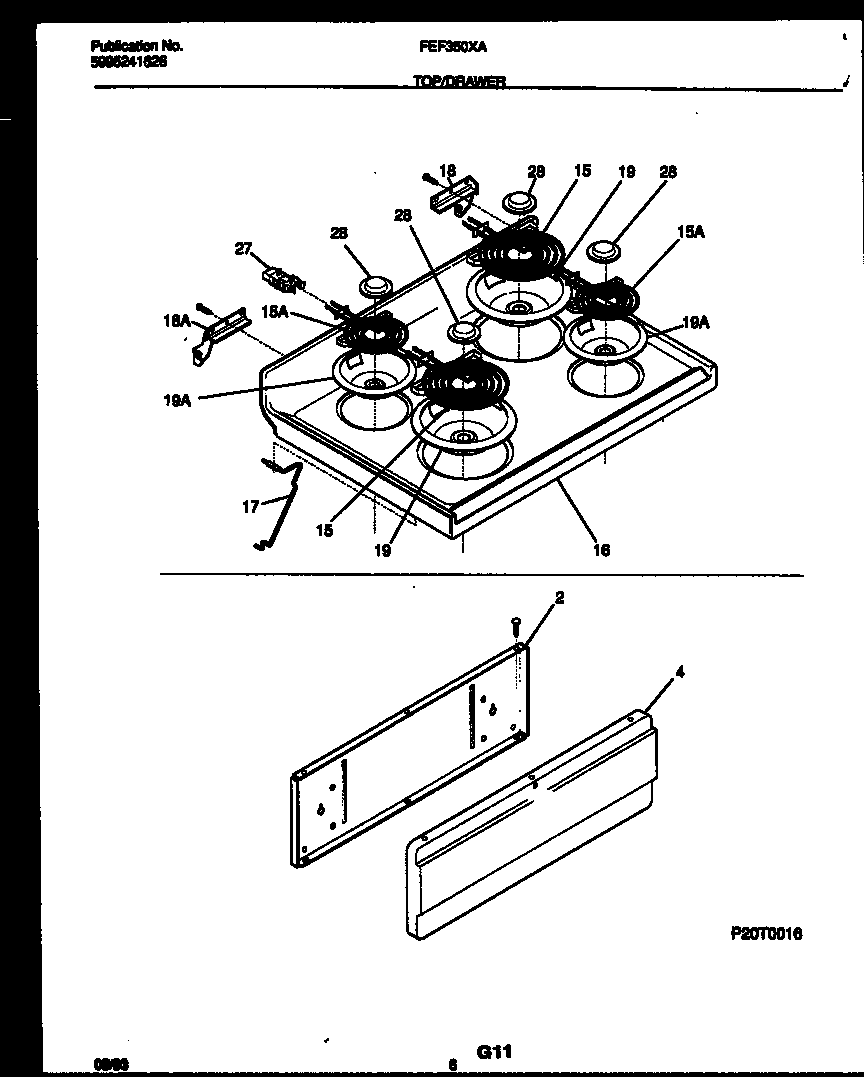

FEF350XAWA 04 – COOKTOP AND DRAWER PARTS

FEF350XAWA 04 – COOKTOP AND DRAWER PARTS

Written by

in

FEF350XAWA 04 – COOKTOP AND DRAWER PARTS

Products

PositionProduct
*83422WCI 5303281584
2SHIELD-PNL
4PNL – DRAWER (WHITE)
4ASCREW, HEX WASHER HEAD, 8-18(AB) X 1/2 (NOT ILLUSTRATED)
15A318372210 Frigidaire Oven Range 6" 1250W Surface Element
15316442300 Frigidaire Oven 2100W Coil Element 8
16WCI 5303294319
17316057601 Frigidaire Oven Rod
18HINGE-MAIN TOP (RH)
18AHINGE-MAIN TOP (LH)
18B131243700 Frigidaire Screw
19A316048414 Frigidaire Oven Range Chrome 6" Drip Bowl
19316048413 Frigidaire Oven Range Chrome 8" Drip Bow
275303935058 Frigidaire Oven Burner Receptacle Kit
28MEDALLION, STAINLESS STEEL, SURF ELEM
