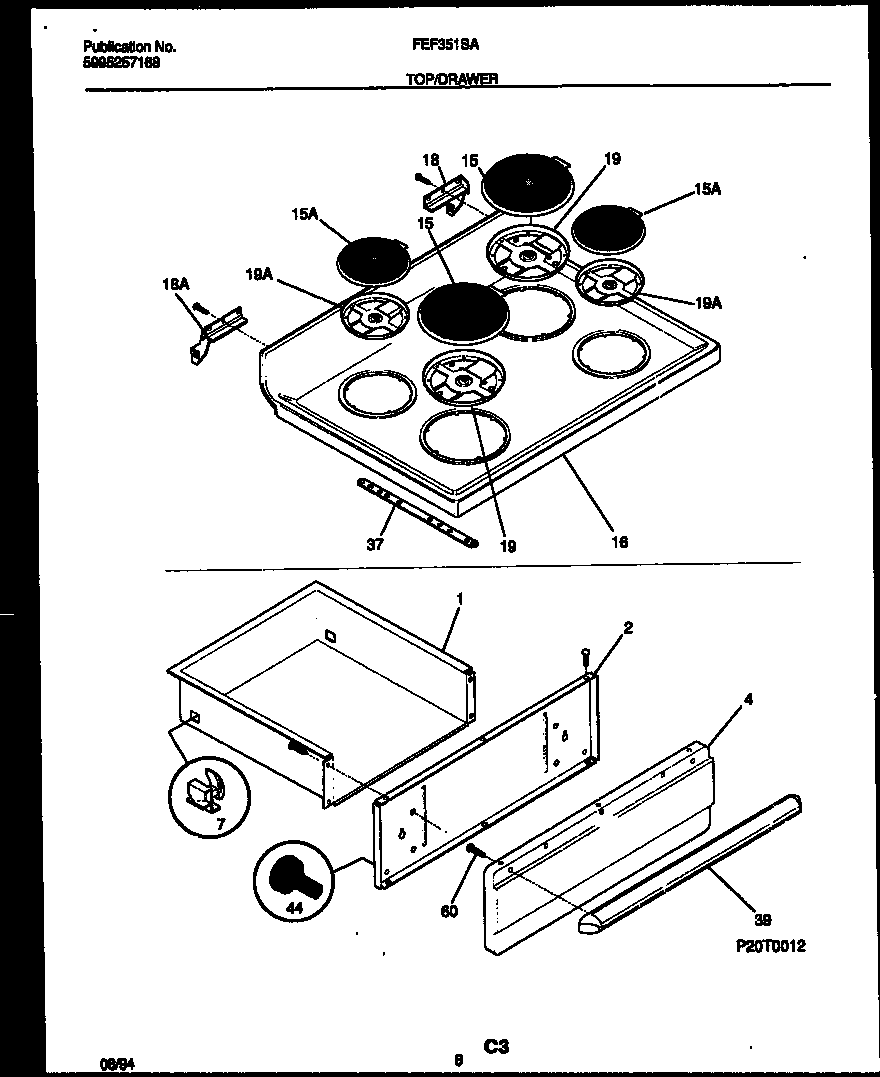

FEF351SADB 05 – COOKTOP AND DRAWER PARTS

FEF351SADB 05 – COOKTOP AND DRAWER PARTS

Written by

in

FEF351SADB 05 – COOKTOP AND DRAWER PARTS

Products

PositionProduct
*10818WCI 5303281584
*10818NUT 6-M ELEMENT MTG (NON-ILLUSTRATED)
1DRAWER-UTILITY
2SHIELD-PNL
4PANEL-BROILER, WHITE
4ASCREW, HEX WASHER HEAD, 8-18(AB) X 1/2 (NOT ILLUSTRATED)
73051163 Frigidaire Oven Range Rear Broiler Drawer Glide
15AWCI 316046300
15WCI 316046100
16ACHANNEL, TOP STIFFNER (NON-ILLUSTRATED)
16WCI 316042902
18HINGE-MAIN TOP (RH)
18B131243700 Frigidaire Screw
18AHINGE-MAIN TOP (LH)
19PAN-ELEMENT SHIELD, MED 8/INCH
19APAN, ELEMENT SHIELD, SM 6/INCH
37STRAP, ELEMENT MTG
39WCI 316026100
443131903 Frigidaire Door/Drawer Bumper
60WCI 5303288574
