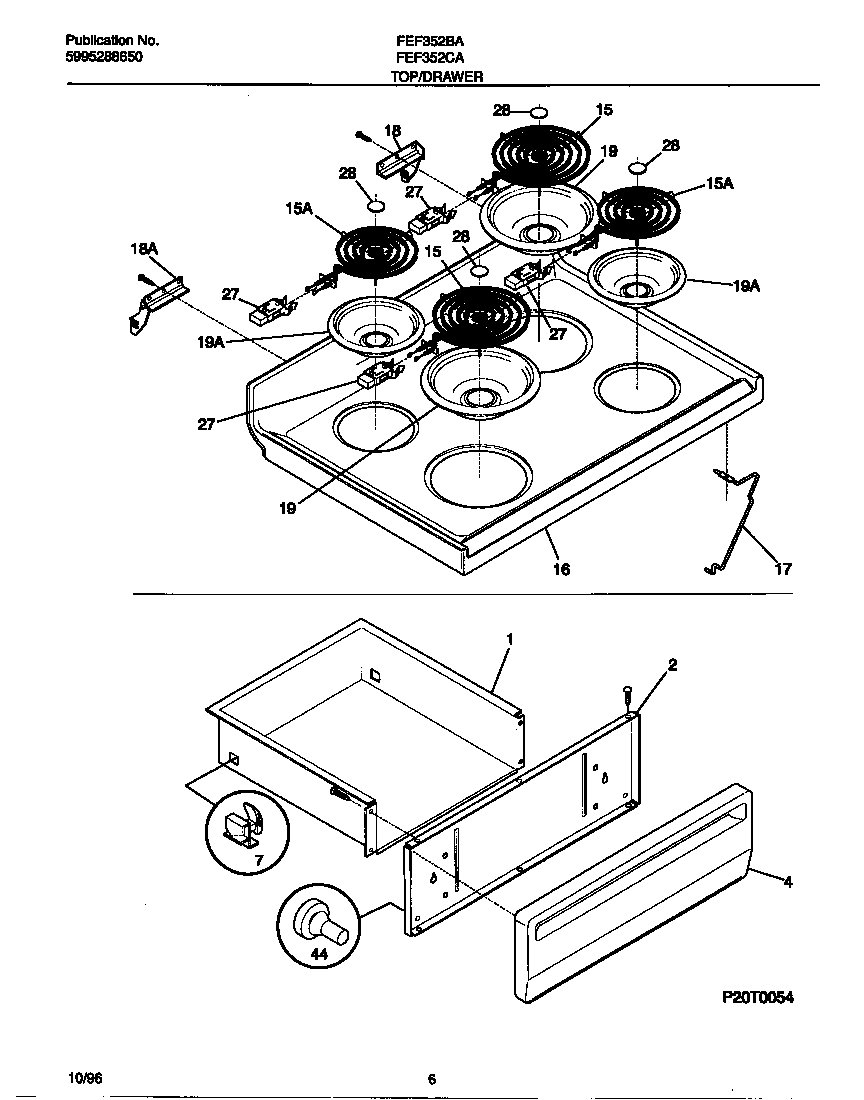

FEF352BADH 04 – TOP/DRAWER

FEF352BADH 04 – TOP/DRAWER

Written by

in

FEF352BADH 04 – TOP/DRAWER

Products

PositionProduct
*62767WCI 5303280311
*62766Screw,cup pt ,8-18 x 0.375 ,chrome
*62768131243700 Frigidaire Screw
*62765WCI 316001725
1DRAWER-UTILITY
2SHIELD-PNL
4SCREW, HEX WASHER HEAD, 8-18(AB) X 1/2 (NOT ILLUSTRATED)
4WCI 316084406
4316021109 Frigidaire Oven Screw
73051163 Frigidaire Oven Range Rear Broiler Drawer Glide
15318372211 Frigidaire Oven 6" Electric Range Burner Kit
15316442301 Frigidaire Oven 8 Coil Element 2600W
16WCI 316020908
17316057601 Frigidaire Oven Rod
18BRIVET-POP, WARING-PLATE
18HINGE-MAIN TOP (LH)
18AHINGE-MAIN TOP (RH)
19A316222301 Frigidaire Oven 8" Porcelain Drip Bowl Range
19A316222201 Frigidaire Oven Drip Bowl Assembly
275303935058 Frigidaire Oven Burner Receptacle Kit
28A5303017715 Frigidaire Medallion
28BWCI 5303296595
443131903 Frigidaire Door/Drawer Bumper
