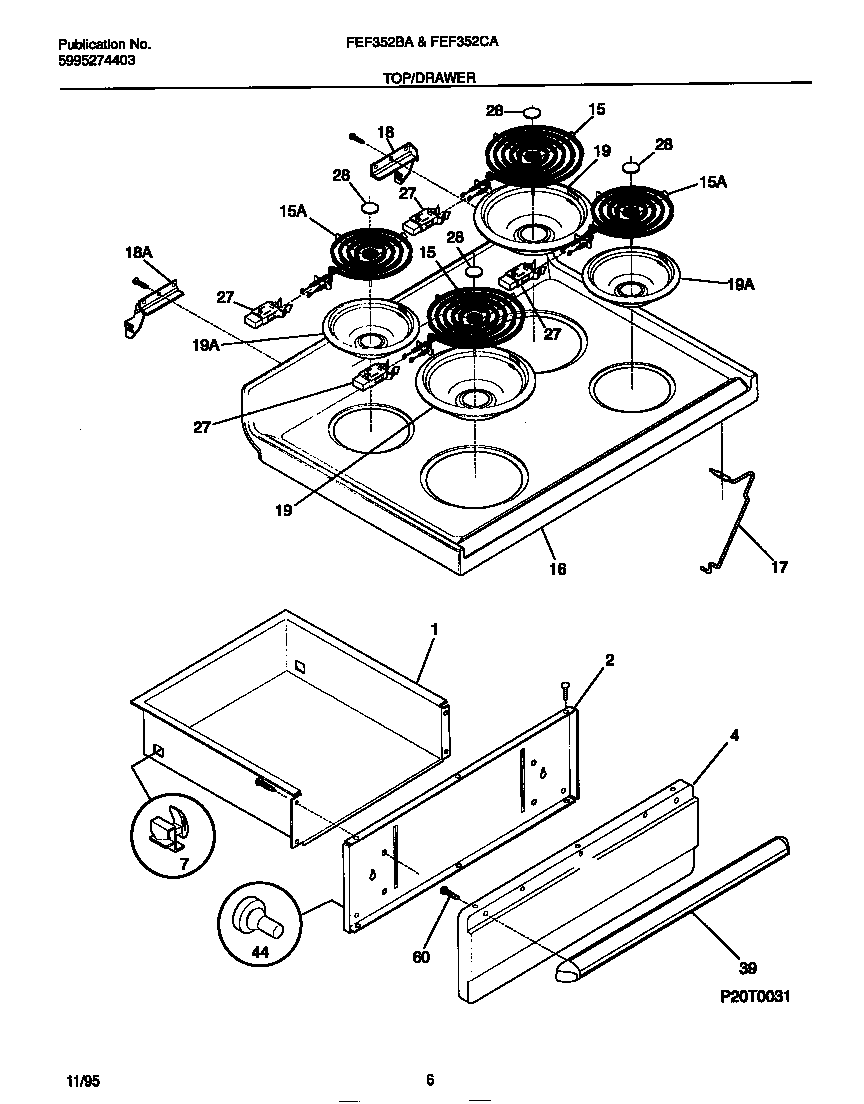

FEF352BAWE 04 – TOP/DRAWER

FEF352BAWE 04 – TOP/DRAWER

Written by

in

FEF352BAWE 04 – TOP/DRAWER

Products

PositionProduct
*24487RIVET-POP, WARING-PLATE
*24490131243700 Frigidaire Screw
*24489WCI 5303281584
*24488WCI 316001725
1DRAWER-UTILITY
2SHIELD-PNL
4PANEL-BROILER, WHITE
4SCREW, HEX WASHER HEAD, 8-18(AB) X 1/2 (NOT ILLUSTRATED)
73051163 Frigidaire Oven Range Rear Broiler Drawer Glide
15316442301 Frigidaire Oven 8 Coil Element 2600W
15318372211 Frigidaire Oven 6" Electric Range Burner Kit
16316202388 Frigidaire Oven Maintop
17316057601 Frigidaire Oven Rod
18HINGE-MAIN TOP (RH)
18HINGE-MAIN TOP (LH)
19A316222301 Frigidaire Oven 8" Porcelain Drip Bowl Range
19A316222201 Frigidaire Oven Drip Bowl Assembly
275303935058 Frigidaire Oven Burner Receptacle Kit
28BWCI 5303296595
28A5303017715 Frigidaire Medallion
39WCI 316026100
443131903 Frigidaire Door/Drawer Bumper
60WCI 5303281379
