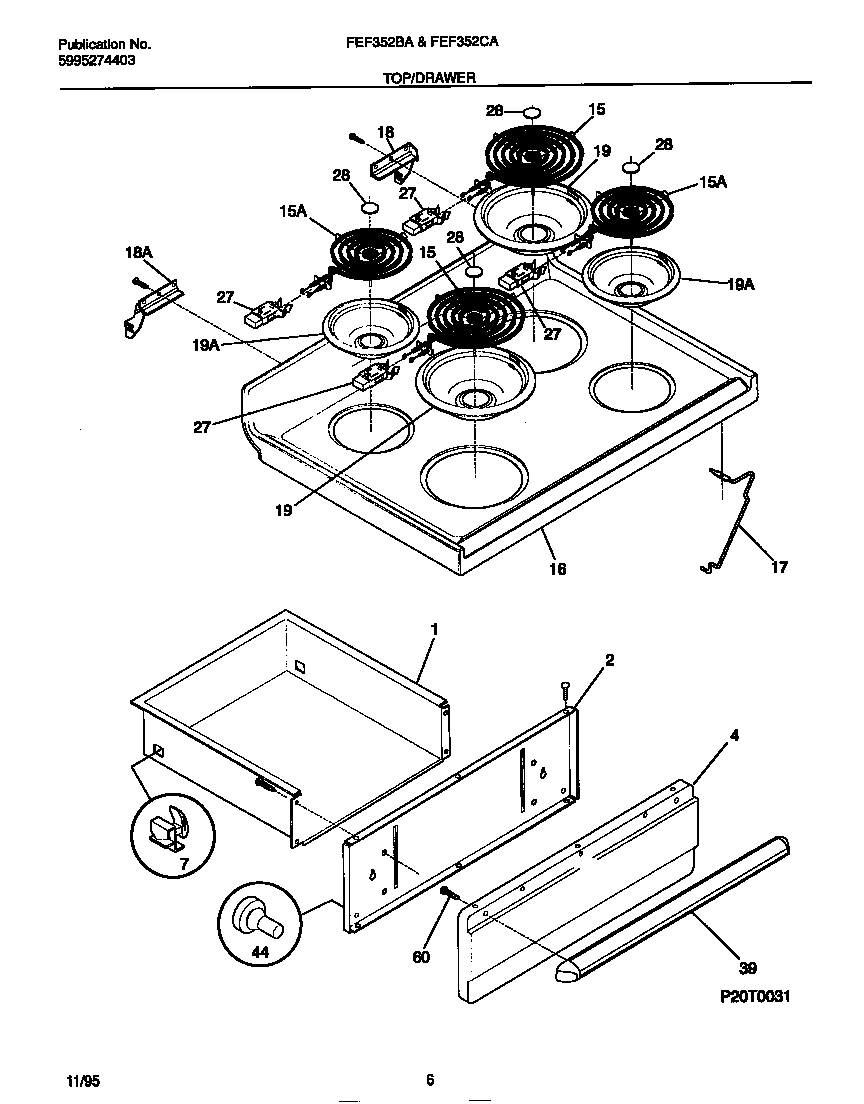

FEF352CASD 04 – TOP/DRAWER

Products

Position	Product
*24487	RIVET-POP, WARING-PLATE
*24490	131243700 Frigidaire Screw
*24489	WCI 5303281584
*24488	WCI 316001725
1	DRAWER-UTILITY
2	SHIELD-PNL
4	PANEL-BROILER, WHITE
4	SCREW, HEX WASHER HEAD, 8-18(AB) X 1/2 (NOT ILLUSTRATED)
7	3051163 Frigidaire Oven Range Rear Broiler Drawer Glide
15	316442301 Frigidaire Oven 8 Coil Element 2600W
15	318372211 Frigidaire Oven 6" Electric Range Burner Kit
16	316202388 Frigidaire Oven Maintop
17	316057601 Frigidaire Oven Rod
18	HINGE-MAIN TOP (RH)
18	HINGE-MAIN TOP (LH)
19	WCI 316048408
19	WCI 316048411
27	5303935058 Frigidaire Oven Burner Receptacle Kit
28A	5303017715 Frigidaire Medallion
28B	WCI 5303296595
39	WCI 316026103
44	3131903 Frigidaire Door/Drawer Bumper
60	WCI 5303281379
