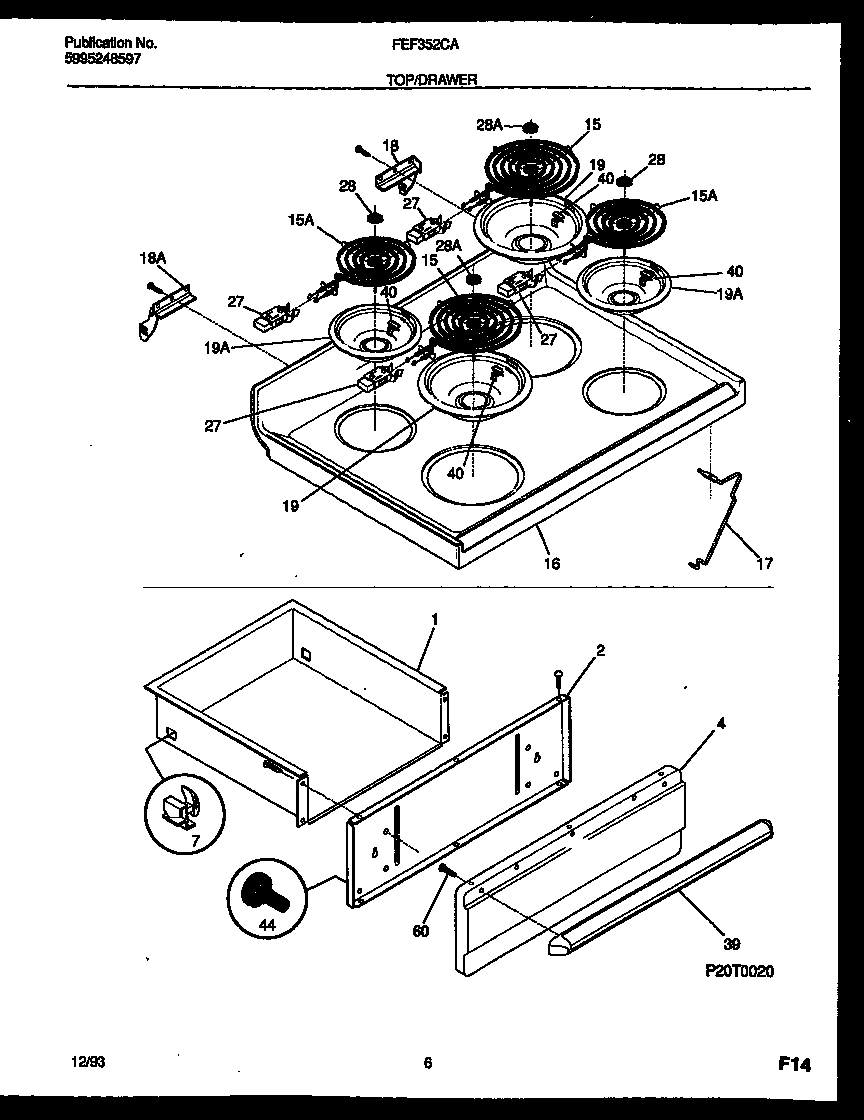

FEF352CATB 04 – COOKTOP AND DRAWER PARTS

FEF352CATB 04 – COOKTOP AND DRAWER PARTS

Written by

in

FEF352CATB 04 – COOKTOP AND DRAWER PARTS

Products

PositionProduct
1DRAWER-UTILITY
2SHIELD-PNL
4WCI 316056206
4ASCREW, HEX WASHER HEAD, 8-18(AB) X 1/2 (NOT ILLUSTRATED)
73051163 Frigidaire Oven Range Rear Broiler Drawer Glide
15316442301 Frigidaire Oven 8 Coil Element 2600W
15A318372211 Frigidaire Oven 6" Electric Range Burner Kit
16MAIN TOP, ALMOND
17316057601 Frigidaire Oven Rod
18HINGE-MAIN TOP (RH)
18AHINGE-MAIN TOP (LH)
18B131243700 Frigidaire Screw
19316048413 Frigidaire Oven Range Chrome 8" Drip Bow
19AL304430992 Frigidaire 6" Drip Bowl Chrome FM
275303935058 Frigidaire Oven Burner Receptacle Kit
285303017715 Frigidaire Medallion
28AWCI 5303296595
39WCI 316026102
40316058601 Frigidaire Oven Clip
443131903 Frigidaire Door/Drawer Bumper
60WCI 5303288574
