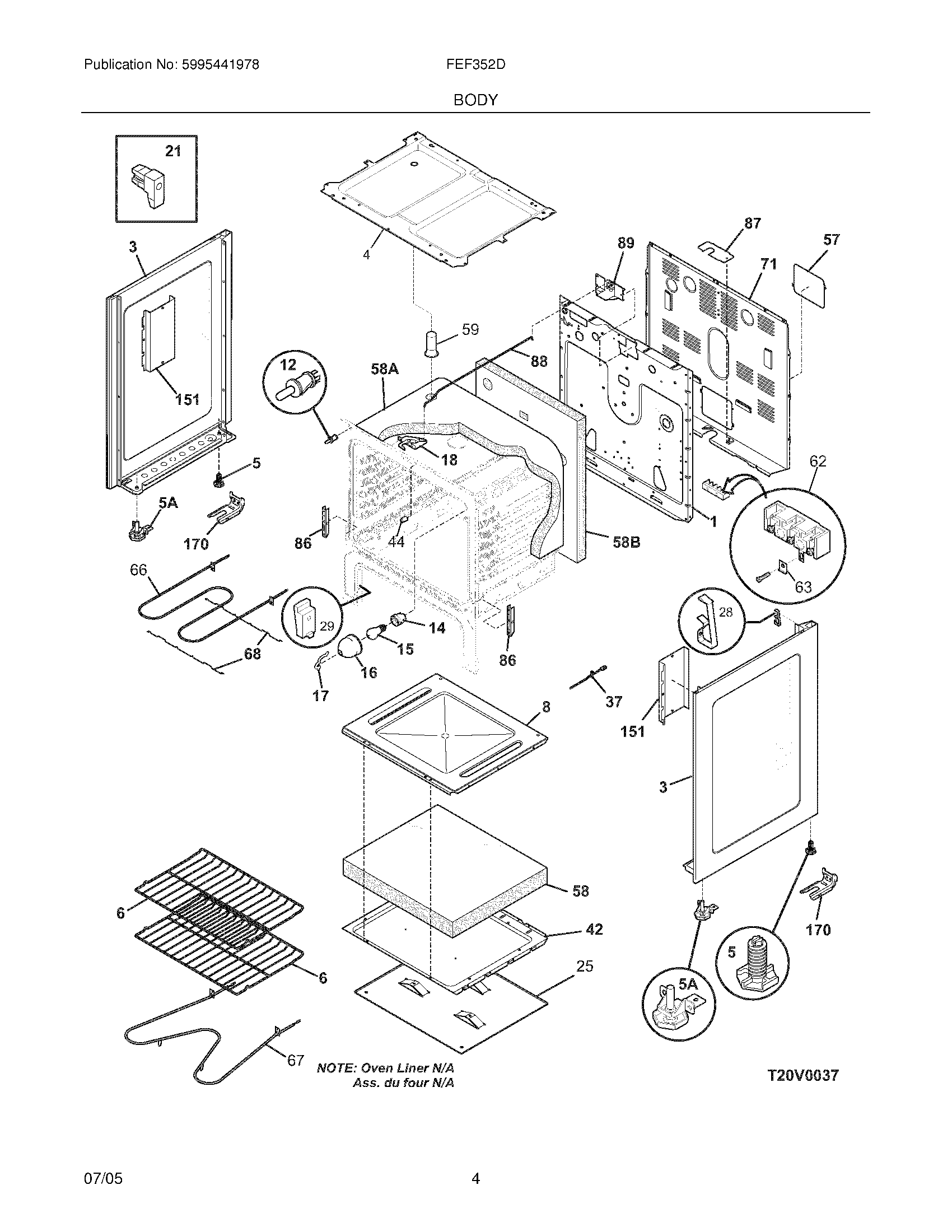

FEF352DSC 05 – BODY

FEF352DSC 05 – BODY

Written by

in

FEF352DSC 05 – BODY

Products

PositionProduct
NI5303285179 Frigidaire Oven Door Screw
NI316418901 Frigidaire Oven Screw
NIWCI 316416401
NI316205500 Frigidaire Oven Nut
NIWCI 316085600
NI3203550 Frigidaire Oven Plug
NI5308014215 Frigidaire Oven Screw
NI316089500 Frigidaire Oven Screw
NI316021109 Frigidaire Oven Screw
NI5303271648 Frigidaire Oven Screw
NI316021105 Frigidaire Oven Screw
1WCI 316401800
3316400143 Frigidaire Panel
3316400142 Frigidaire Panel
45304522901 Frigidaire M Burner Box
5A5304509869 Frigidaire Oven Leveling Leg Assembly
5316272900 Frigidaire Oven Leg Levelling Plastic Screw
6WCI 316404500
8316400601 Frigidaire Oven Range Bottom Panel
12316445501 Frigidaire Oven Switch
14316116400 Frigidaire Oven Light Socket
15316538904 Frigidaire Oven Lamp Light
165304524341 Frigidaire Lens
17316087500 Frigidaire Oven Retainer
18316405800 Frigidaire Assembly Latch
21316408000 Frigidaire Oven Clip Assembly
25WCI 5303289914
28Clip,wiring harness ,green ,main top
29807047102 Frigidaire Oven Front Drawer Glide
37OVEN TEMP PROBE
42316407700 Frigidaire Oven Shield
44WCI 316246501
57WCI 316422400
58316403803 Frigidaire Insulation
58B316406500 Frigidaire Insulation
58A316406604 Frigidaire Insulation
59316073606 Frigidaire Oven Tube
625303935238 Frigidaire Terminal Block Kit
63316278800 Frigidaire Oven Plate
66316203200 Frigidaire Oven Broil Element 2400W
67316075103 Frigidaire Oven Bake Element
68316404002 Frigidaire Support Assembly
71WCI 316422300
86316441300 Frigidaire Receptacle
87316081200 Frigidaire Oven Bracket
88316203500 Frigidaire Oven Rod
89MOTOR
151WCI 316404600
170316116000 Frigidaire Screw
170316112005 Frigidaire Oven Anti-Tip Range Bracket Kit
170316112500 Frigidaire Oven Template
