FEF353BADA 05 – COOKTOP AND DRAWER PARTS

FEF353BADA 05 – COOKTOP AND DRAWER PARTS

Written by

in

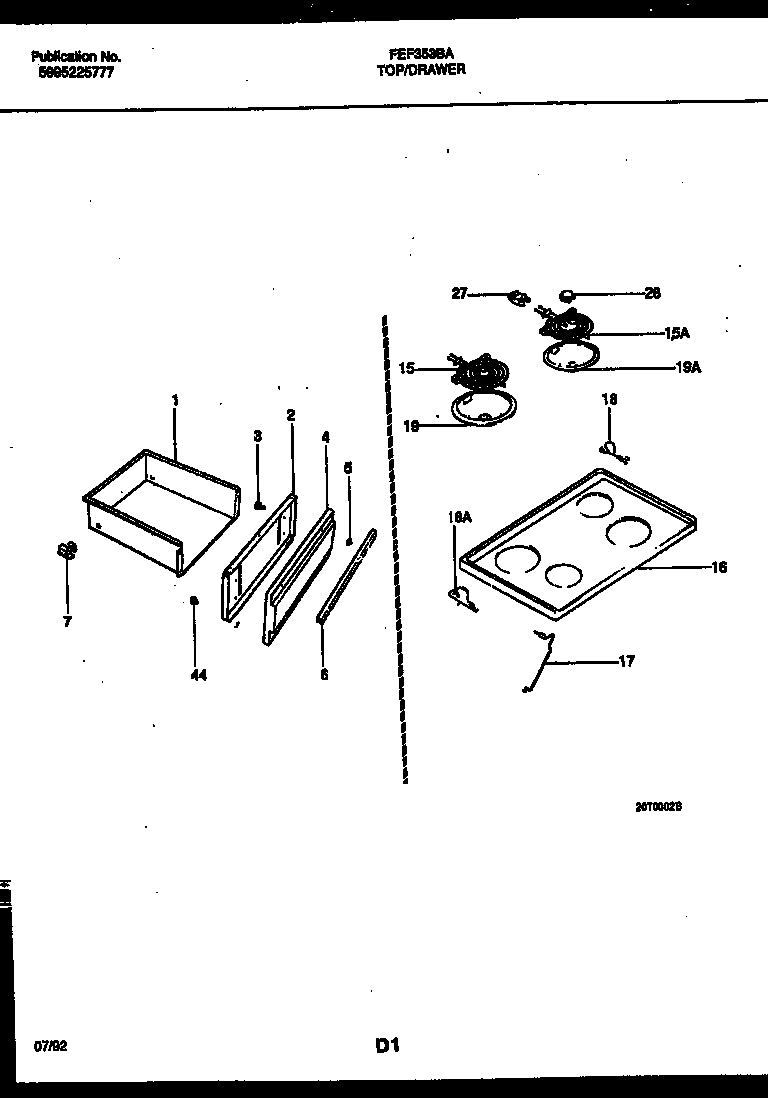

FEF353BADA 05 – COOKTOP AND DRAWER PARTS

Products

PositionProduct
1DRAWER-UTILITY
2SHIELD-PNL
3SCREW-DRAWER HANDLE, 8 TRUSS HEAD, 10-16 X 1/2
4ASCREW, HEX WASHER HEAD, 8-18(AB) X 1/2 (NOT ILLUSTRATED)
4PANEL – BROILER ALMD
5FSTNR, SPACER (2)
6HANDLE
73051163 Frigidaire Oven Range Rear Broiler Drawer Glide
15A318372211 Frigidaire Oven 6" Electric Range Burner Kit
15316442301 Frigidaire Oven 8 Coil Element 2600W
16WCI 3013512
17ROD-MAIN SUPPORT (2)
18BRACKET-HINGE,MAIN TOP RH
18ABRACKET-HINGE,MAIN TOP LH
19A316048414 Frigidaire Oven Range Chrome 6" Drip Bowl
19316048413 Frigidaire Oven Range Chrome 8" Drip Bow
275303935058 Frigidaire Oven Burner Receptacle Kit
285303017715 Frigidaire Medallion
443131903 Frigidaire Door/Drawer Bumper
