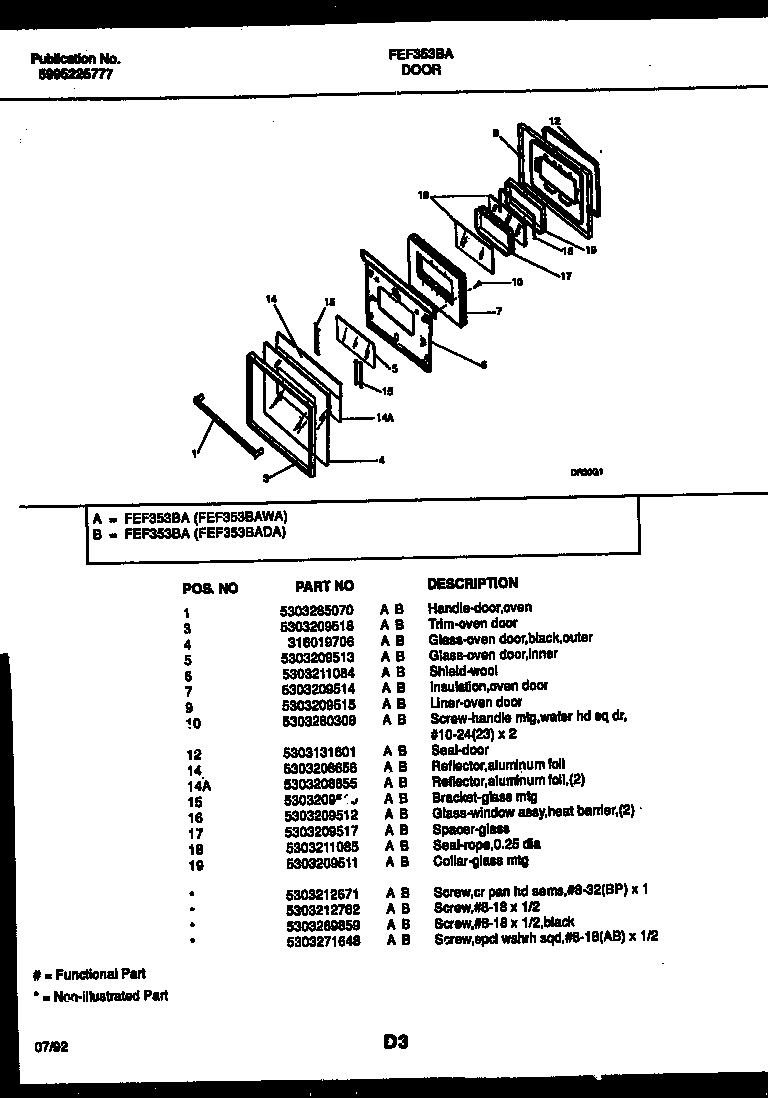

FEF353BAWA 06 – DOOR PARTS

FEF353BAWA 06 – DOOR PARTS

Written by

in

FEF353BAWA 06 – DOOR PARTS

Products

PositionProduct
*65583SCREW, CR PAN HD SEMS, 8-32BP X 1.00
*65583WCI 5303269859
*655835303300265 Frigidaire Oven Screw
*655835303271648 Frigidaire Oven Screw
1WCI 5303285070
3WCI 5303209518
4WCI 316019706
5GLASS-OVEN DOOR, INNER
6SHIELD-INSULATION
7INSULATION-OVEN DOOR
9WCI 5303209515
10WCI 5303280308
125303131601 Frigidaire Oven Seal
14REFLECTOR, ALUMINUM FOIL
14A5303208655 Frigidaire Reflector Assembly
15BRACKET-GLASS MTG
16GLASS-OVEN DOOR, HEAT BARRIER, (2)
17WCI 5303209517
18SEAL-ROPE, 0.25 DIA
19WCI 5303209511
