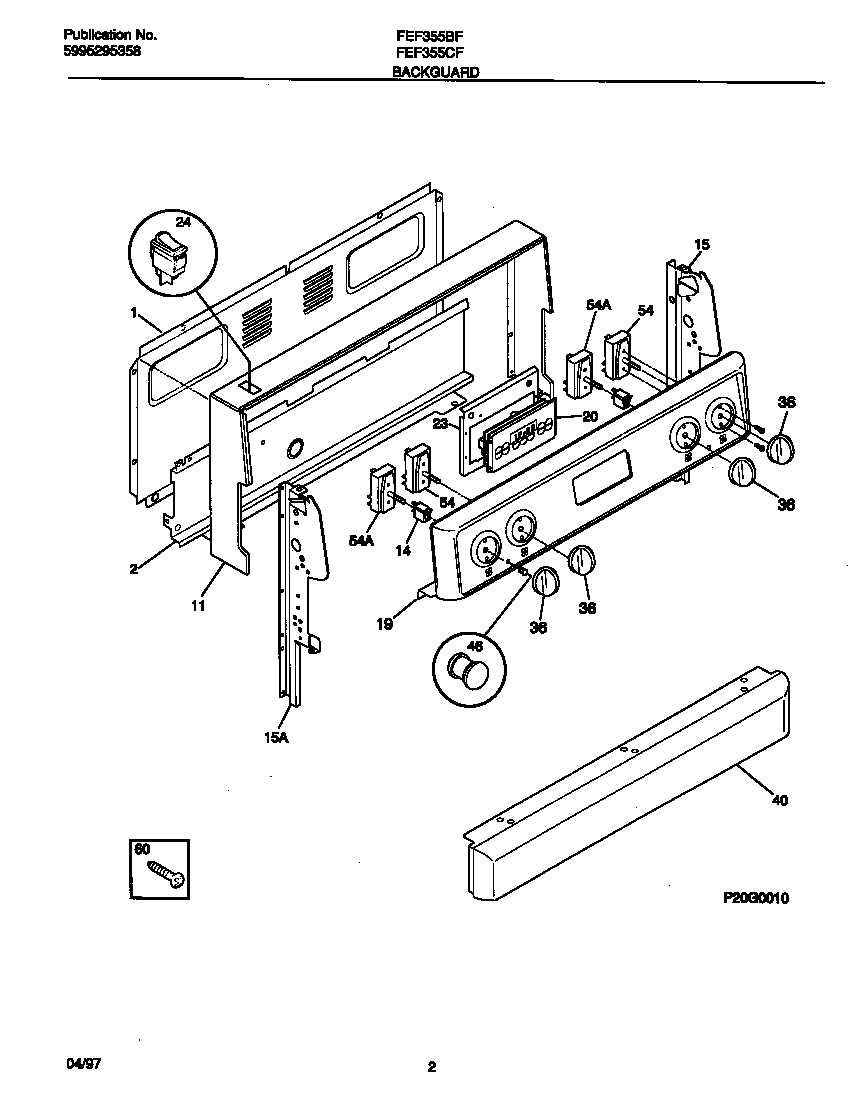

FEF355CFTA 02 – BACKGUARD

FEF355CFTA 02 – BACKGUARD

Written by

in

FEF355CFTA 02 – BACKGUARD

Products

PositionProduct
*16201Screw,cup pt ,8-18 x 0.375 ,chrome
*16200SCREW-SWITCH MTG, 8-32 X 3/16, SW TO CNTL PNL, (8)
1WCI 316081601
2WCI 316015907
11WCI 316083701
14316022503 Frigidaire Light Lamp P-1
19WCI 316024496
20WCI 316101001
20WCI 316101504
23WCI 316100300
24SWITCH-ROCKER,OVEN LIGHT ,ALMOND
36KNOB-CONTROL, INFINITE SW, ALMOND, (4)
40PANEL-MANIFOLD
46318228310 Frigidaire Oven Lens
54316436001 Frigidaire Oven Range Infinite Burner Switch
545303935086 Frigidaire Oven Top Burner Switch Kit
60316021105 Frigidaire Oven Screw
