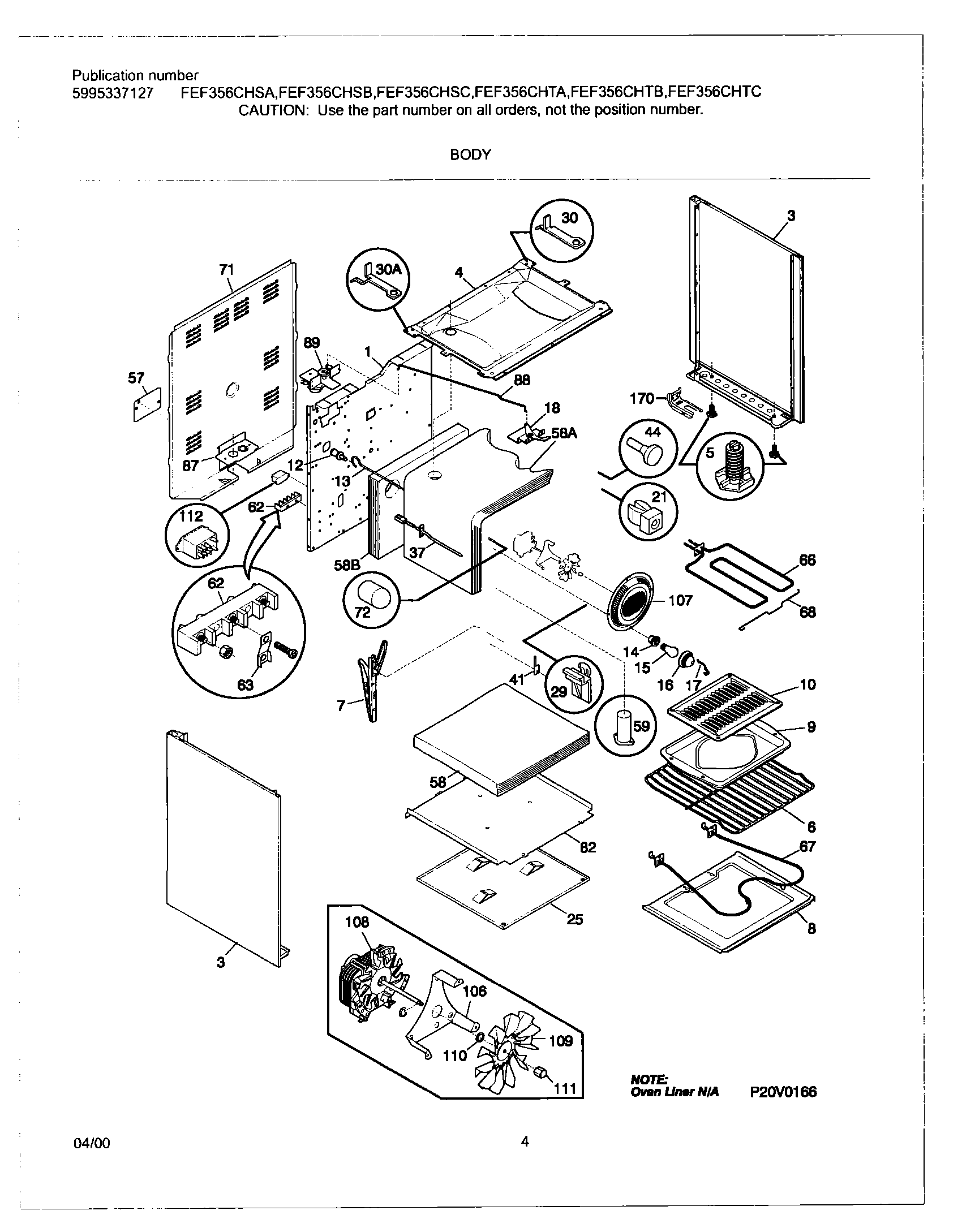

FEF356CHSA 05 – BODY

FEF356CHSA 05 – BODY

Written by

in

FEF356CHSA 05 – BODY

Products

PositionProduct
NI316021105 Frigidaire Oven Screw
NI316021109 Frigidaire Oven Screw
NI316205500 Frigidaire Oven Nut
1WCI 316080804
3WCI 316081034
3WCI 316081035
4WCI 5303271756
5WCI 316107300
6316067902 Frigidaire Oven Rack
7WCI 316007002
8PANEL-OVEN BOTTOM
9WCI 316081900
10Insert,broiler panOPTIONAL ACCESS0RY
12SWITCH-OVEN LIGHT, DOOR FRAME
13WCI 316026800
14316116400 Frigidaire Oven Light Socket
15316538904 Frigidaire Oven Lamp Light
165304524341 Frigidaire Lens
17316087500 Frigidaire Oven Retainer
18WCI 316036300
21SPACER-BODYSIDE, (8)
25WCI 3200848
293051162 Frigidaire Oven Range Front Broiler Drawer Glide
30BRACKET-HINGE, MAIN TOP RH
30ABRACKET-HINGE, MAIN TOP, LH
375304497424 Frigidaire Oven Temperature Sensor Probe Kit
41.WCI 3131570
443131903 Frigidaire Door/Drawer Bumper
57WCI 316081101
58316403803 Frigidaire Insulation
58BWCI 316054201
58AINSULATION, OVEN WRAPPER
59WCI 316073600
625304409888 Frigidaire Oven Terminal Block with Hardware
63PLATE=GROUND STRAP
665303051140 Frigidaire Broil Element
67316075103 Frigidaire Oven Bake Element
68316203400 Frigidaire Oven Support
71WCI 316015805
72COVER-LIGHT/SWITCH ROD
82WCI 5303289913
87316081200 Frigidaire Oven Bracket
88WCI 316026400
89WCI 316028107
106WCI 316026600
107316026701 Frigidaire Oven Cover Assembly
108WCI 316090500
108SCREW,8-18 X 1.500
109WCI 316090600
110WCI 316090700
111WCI 316090800
112WCI 316082700
170316116000 Frigidaire Screw
170316112005 Frigidaire Oven Anti-Tip Range Bracket Kit
170316112500 Frigidaire Oven Template
