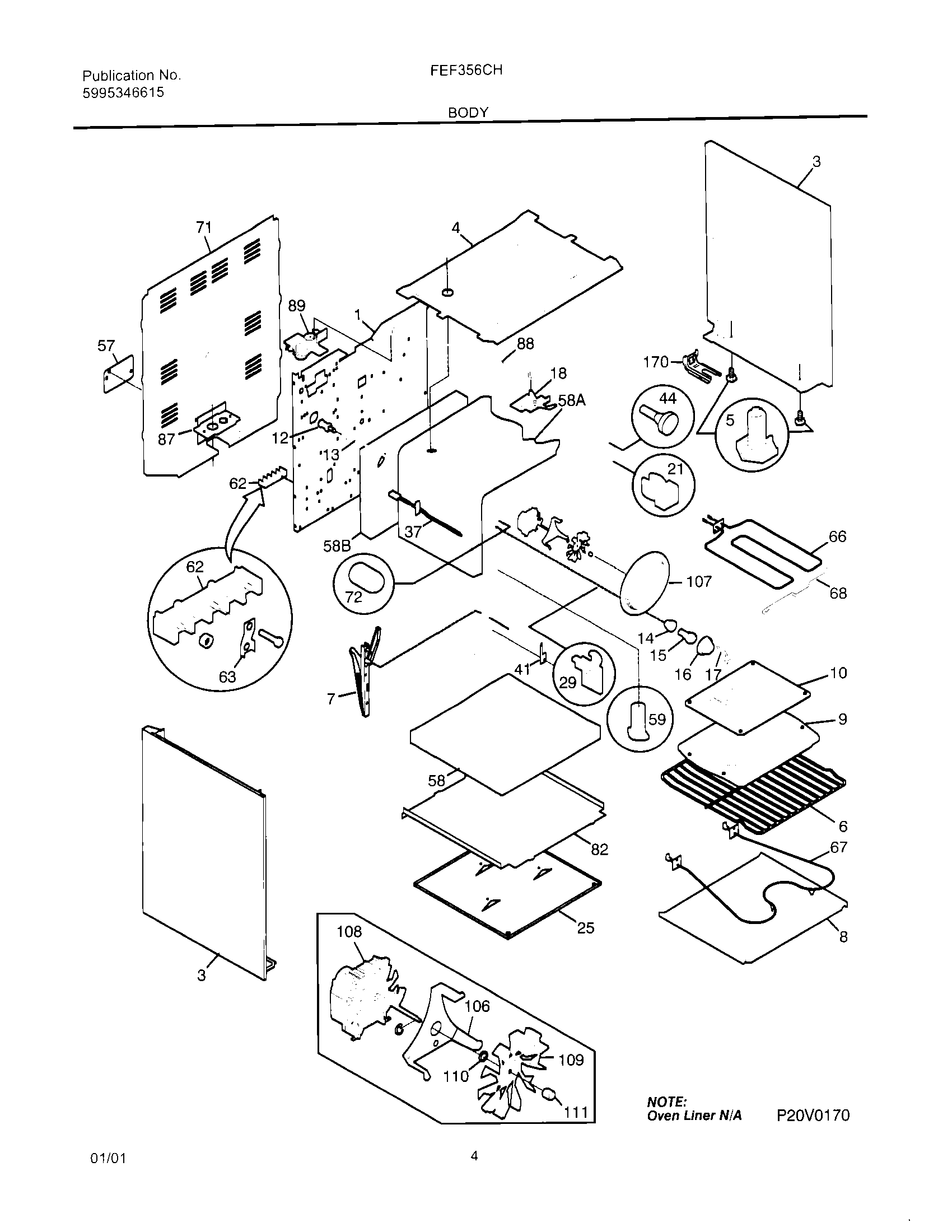

FEF356CHTD 05 – BODY

FEF356CHTD 05 – BODY

Written by

in

FEF356CHTD 05 – BODY

Products

PositionProduct
NI5303285179 Frigidaire Oven Door Screw
NI316021105 Frigidaire Oven Screw
NI5303271648 Frigidaire Oven Screw
NIWCI 5303280311
NIScrew,cup pt ,8-18 x 0.375 ,chrome
NIWASHER-BLACK
NI316205500 Frigidaire Oven Nut
NI5308014215 Frigidaire Oven Screw
NI3203550 Frigidaire Oven Plug
1WCI 316080803
3WCI 316081037
3WCI 316081036
4WCI 5303271756
5WCI 316129200
6316067902 Frigidaire Oven Rack
7WCI 316007002
8PANEL-OVEN BOTTOM
9WCI 316081900
10Insert,broiler panOPTIONAL ACCESS0RY
12SWITCH-OVEN LIGHT, DOOR FRAME
13WCI 316026800
14316116400 Frigidaire Oven Light Socket
15316538904 Frigidaire Oven Lamp Light
165304524341 Frigidaire Lens
17316087500 Frigidaire Oven Retainer
18WCI 316036300
21SPACER-BODYSIDE, (8)
25WCI 3200848
293051162 Frigidaire Oven Range Front Broiler Drawer Glide
375304497424 Frigidaire Oven Temperature Sensor Probe Kit
41WCI 3131570
57WCI 316081100
58316054202 Frigidaire Insulation
58INSULATION, OVEN WRAPPER
58316047707 Frigidaire Insulation
58316403803 Frigidaire Insulation
58WCI 316054201
59WCI 316073600
625304409888 Frigidaire Oven Terminal Block with Hardware
63PLATE=GROUND STRAP
665303051140 Frigidaire Broil Element
67316075103 Frigidaire Oven Bake Element
68316203400 Frigidaire Oven Support
71WCI 316015804
72COVER-LIGHT/SWITCH ROD
82WCI 5303289913
87316081200 Frigidaire Oven Bracket
88WCI 316026400
89WCI 316135200
106WCI 316026600
107316026701 Frigidaire Oven Cover Assembly
108WCI 316136300
109318398302 Frigidaire Stove Oven Range Convection Motor Fan Blade
110316008401 Frigidaire Washer P-1
111316136600 Frigidaire Oven Range Lock Nut
1353131903 Frigidaire Door/Drawer Bumper
170316116000 Frigidaire Screw
170316112005 Frigidaire Oven Anti-Tip Range Bracket Kit
170316112500 Frigidaire Oven Template
