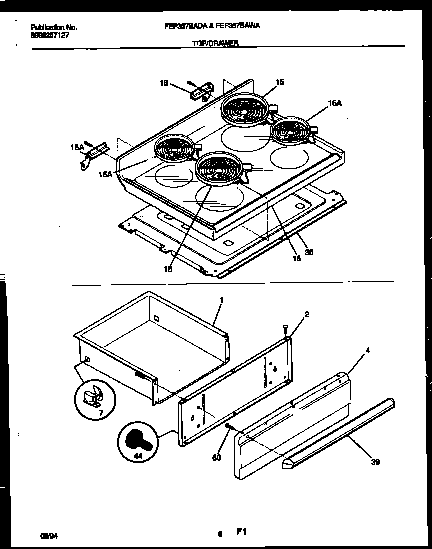

FEF357BADB 04 – COOKTOP AND DRAWER PARTS

Products

PositionProduct
*10846LENS-LIGHT/LAMP, INDICATOR
*10846WCI 5303281584
*10846LIGHT/LAMP, IND, HOT SURFACE
*10846WCI 5309951550
*10846WCI 316001713
1DRAWER-UTILITY
2SHIELD-PNL
4WCI 316056206
4ASCREW, HEX WASHER HEAD, 8-18(AB) X 1/2 (NOT ILLUSTRATED)
73051163 Frigidaire Oven Range Rear Broiler Drawer Glide
15BWCI 5303305628
15318198834 Frigidaire Oven Element
15CLIMITER SWITCH, LARGE/8 INCH (NOT ILLUSTRATED)
15A318178110 Frigidaire Oven Range 6" Surface Element
16WCI 316035506
18B131243700 Frigidaire Screw
18HINGE-MAIN TOP (RH)
18AHINGE-MAIN TOP (LH)
36BWCI 316041001
36AWCI 316023301
36PANEL, ELEMENT MOUNTING, GLASS TOP
39WCI 316026100
443131903 Frigidaire Door/Drawer Bumper
60WCI 5303288574
