FEF357BADF 04 – TOP/DRAWER

FEF357BADF 04 – TOP/DRAWER

Written by

in

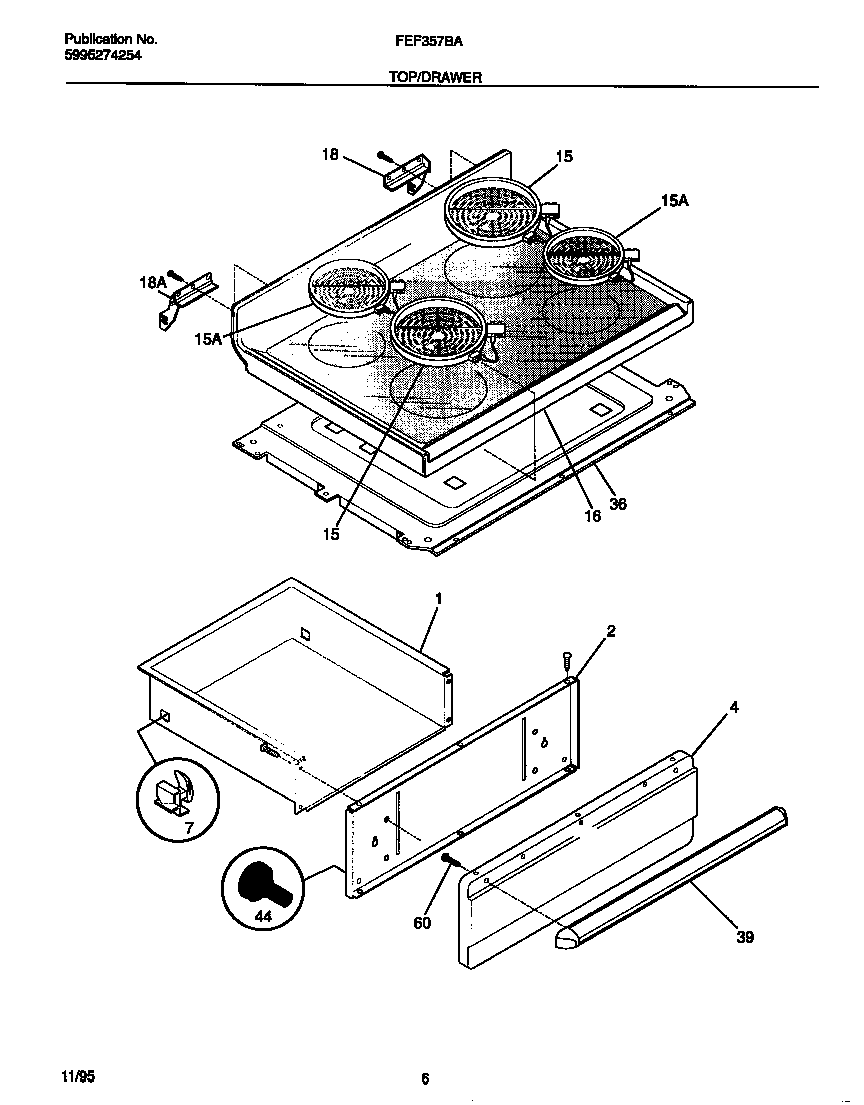

FEF357BADF 04 – TOP/DRAWER

Products

PositionProduct
*35544RIVET-POP, WARING-PLATE
*35528131243700 Frigidaire Screw
*35529WCI 5303288574
*35527WCI 5303281584
*35531WCI 316001732
*35530WCI 5309951550
2SHIELD-PNL
4SCREW, HEX WASHER HEAD, 8-18(AB) X 1/2 (NOT ILLUSTRATED)
4WCI 316056206
73051163 Frigidaire Oven Range Rear Broiler Drawer Glide
15318198817 Frigidaire Oven Element
15318198834 Frigidaire Oven Element
16WCI 316035506
18HINGE-MAIN TOP (LH)
18HINGE-MAIN TOP (RH)
36BWCI 316023301
36CWCI 316041001
36AWCI 316033610
39WCI 316026100
443131903 Frigidaire Door/Drawer Bumper
60SCREW-DRAWER HANDLE, 8 TRUSS HEAD, 10-16 X 1/2
