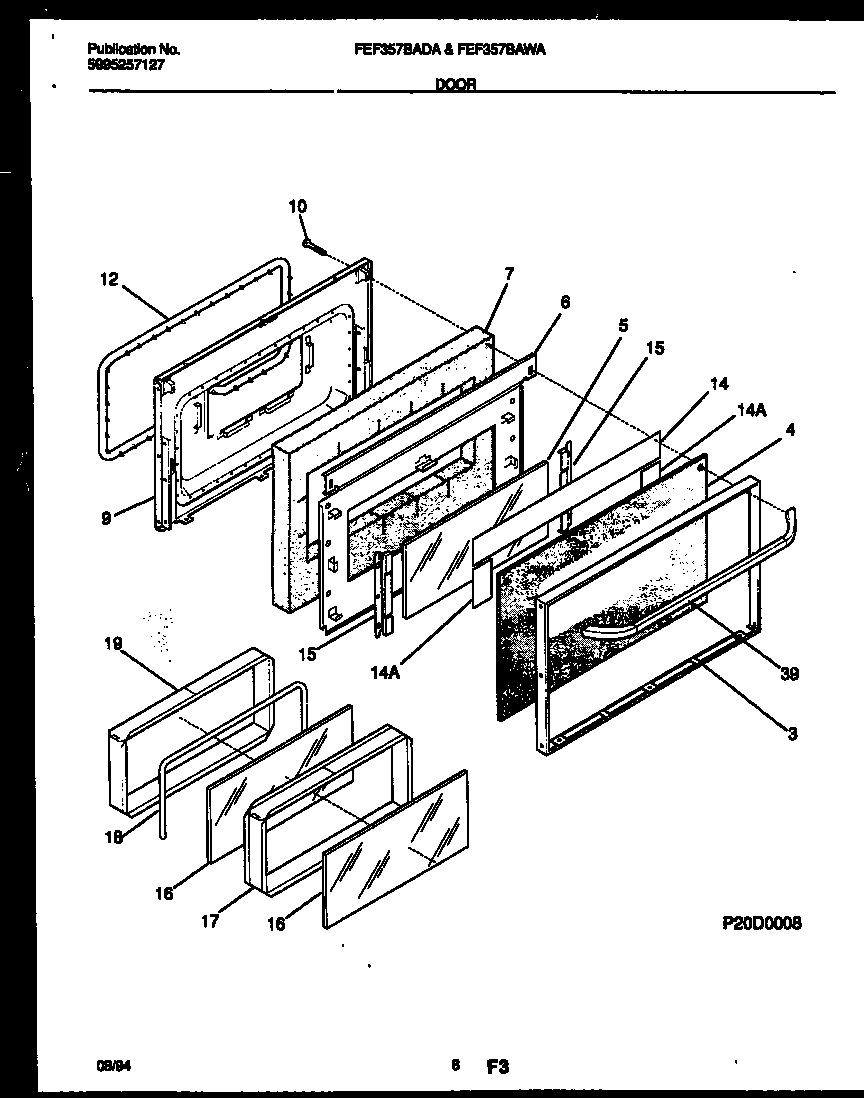

FEF357BAWB 05 – DOOR PARTS

FEF357BAWB 05 – DOOR PARTS

Written by

in

FEF357BAWB 05 – DOOR PARTS

Products

PositionProduct
*10846RIVET-POP, WARING-PLATE
*10846WCI 316065300
*10846SCREW, CR PAN HD SEMS, 8-32BP X 1.00
*108465303285179 Frigidaire Oven Door Screw
3WCI 5303209518
4WCI 316019706
5GLASS-OVEN DOOR, INNER
6SHIELD-INSULATION
7INSULATION-OVEN DOOR
9WCI 5303209515
10SCREW-OVEN DOOR, WASHER HEAD, 10-24 X 1.81
125303131601 Frigidaire Oven Seal
14A5303208655 Frigidaire Reflector Assembly
14REFLECTOR, ALUMINUM FOIL
15BRACKET-GLASS MTG
16GLASS-OVEN DOOR, HEAT BARRIER, (2)
17WCI 5303209517
18SEAL-ROPE, 0.25 DIA
19WCI 316067600
395304529996 Frigidaire Handle Kit
