FEF357BAWE 03 – BODY

FEF357BAWE 03 – BODY

Written by

in

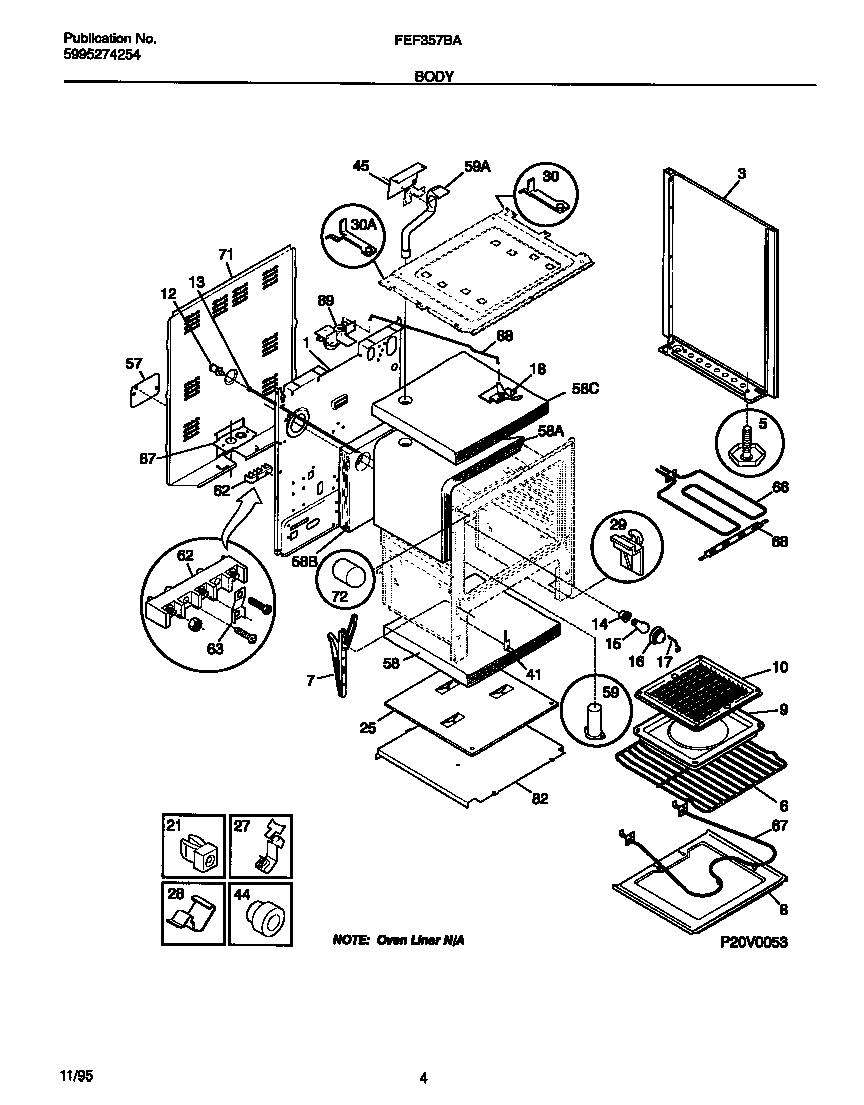

FEF357BAWE 03 – BODY

Products

PositionProduct
*35524WCI 5303281584
*35525WCI 316001195
*355223203550 Frigidaire Oven Plug
*35523316205500 Frigidaire Oven Nut
1WCI 316080801
3WCI 316081006
3WCI 316081007
3SHIELD, HEAT, BODY SIDE (NOT ILLUSTRATED)
5DNUT, T,TYPE, LEVELING SCREW (NOT ILLUSTRATED)
5ASCREW-LEVELING
5BWCI 3934058
5C316116000 Frigidaire Screw
6316067902 Frigidaire Oven Rack
7WCI 316007002
8PANEL-OVEN BOTTOM
9WCI 316073800
10WCI 3205234
12SWITCH-OVEN LIGHT, DOOR FRAME
13WCI 316026800
14316116400 Frigidaire Oven Light Socket
15316538904 Frigidaire Oven Lamp Light
165304524341 Frigidaire Lens
17316087500 Frigidaire Oven Retainer
18WCI 316036300
21SPACER-BODYSIDE, (8)
25WCI 3200848
275303284616 Frigidaire Range Bulb Clip Thermostat
28Clip,wiring harness ,green ,main top
293051162 Frigidaire Oven Range Front Broiler Drawer Glide
30BRACKET-HINGE, MAIN TOP, LH
30BRACKET-HINGE, MAIN TOP RH
41WCI 3131570
443131903 Frigidaire Door/Drawer Bumper
45WCI 316066101
57WCI 316081101
58INSULATION, OVEN TOP
58WCI 316054200
58INSULATION, OVEN WRAPPER
58316403803 Frigidaire Insulation
59BBRACKET-MOUNTING,VENT TUBE
59WCI 316023601
59AWCI 316073602
625304409888 Frigidaire Oven Terminal Block with Hardware
63PLATE=GROUND STRAP
665303051140 Frigidaire Broil Element
67316075103 Frigidaire Oven Bake Element
68316203400 Frigidaire Oven Support
71WCI 316015805
72COVER-LIGHT/SWITCH ROD
82SHIELD, OVEN BOTTOM
87WCI 316081201
88WCI 316026400
89WCI 316028100
