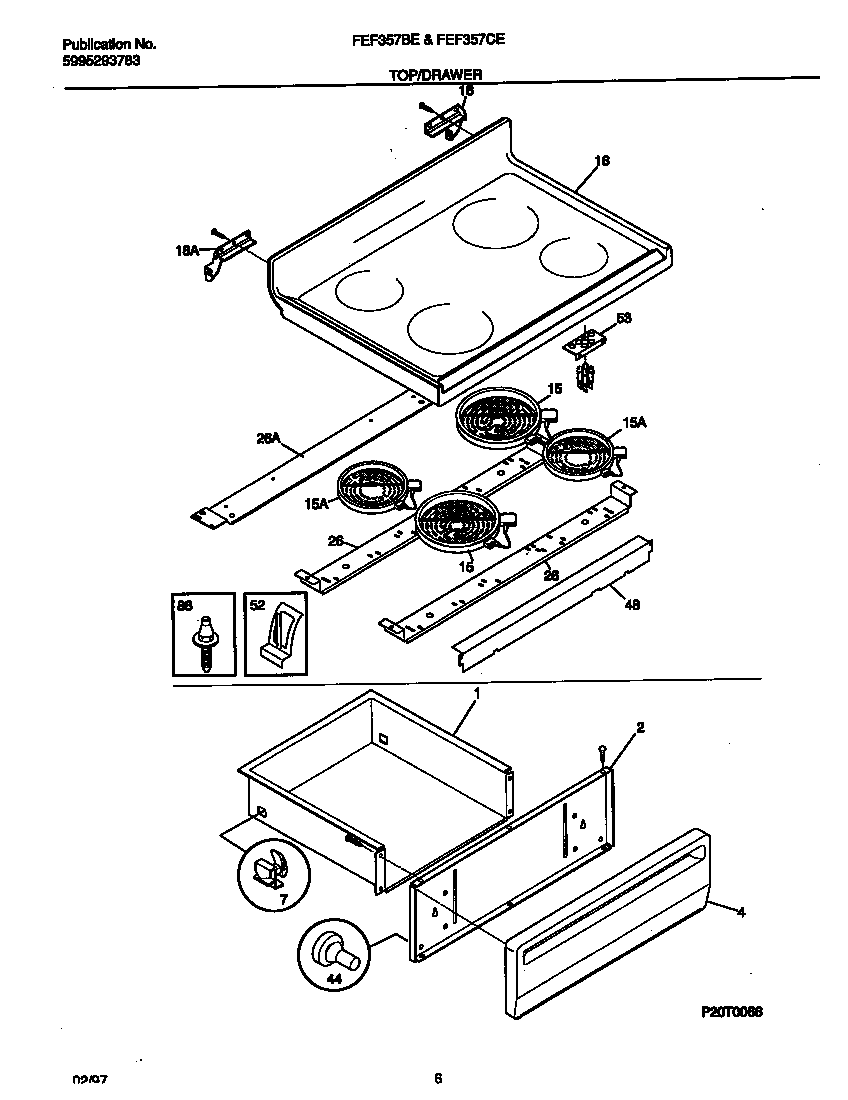

FEF357BEDE 04 – TOP/DRAWER

FEF357BEDE 04 – TOP/DRAWER

Written by

in

FEF357BEDE 04 – TOP/DRAWER

Products

PositionProduct
*60045RIVET-POP, WARING-PLATE
*60051WCI 316001738
*60050WCI 5309951550
*60048WCI 316089600
*60049WCI 5303280311
*60047Clip,wiring harness ,green ,main top
*60046Screw,cup pt ,8-18 x 0.375 ,chrome
1DRAWER-UTILITY
2SHIELD-PNL
4316021109 Frigidaire Oven Screw
4WCI 316084406
73051163 Frigidaire Oven Range Rear Broiler Drawer Glide
15318198834 Frigidaire Oven Element
15318198817 Frigidaire Oven Element
16WCI 316098104
18HINGE-MAIN TOP (LH)
18HINGE-MAIN TOP (RH)
26WCI 316099101
26WCI 316099201
443131903 Frigidaire Door/Drawer Bumper
48WCI 316100200
52Clip,element mtg
53WCI 316099301
88316099500 Frigidaire Oven Pin
