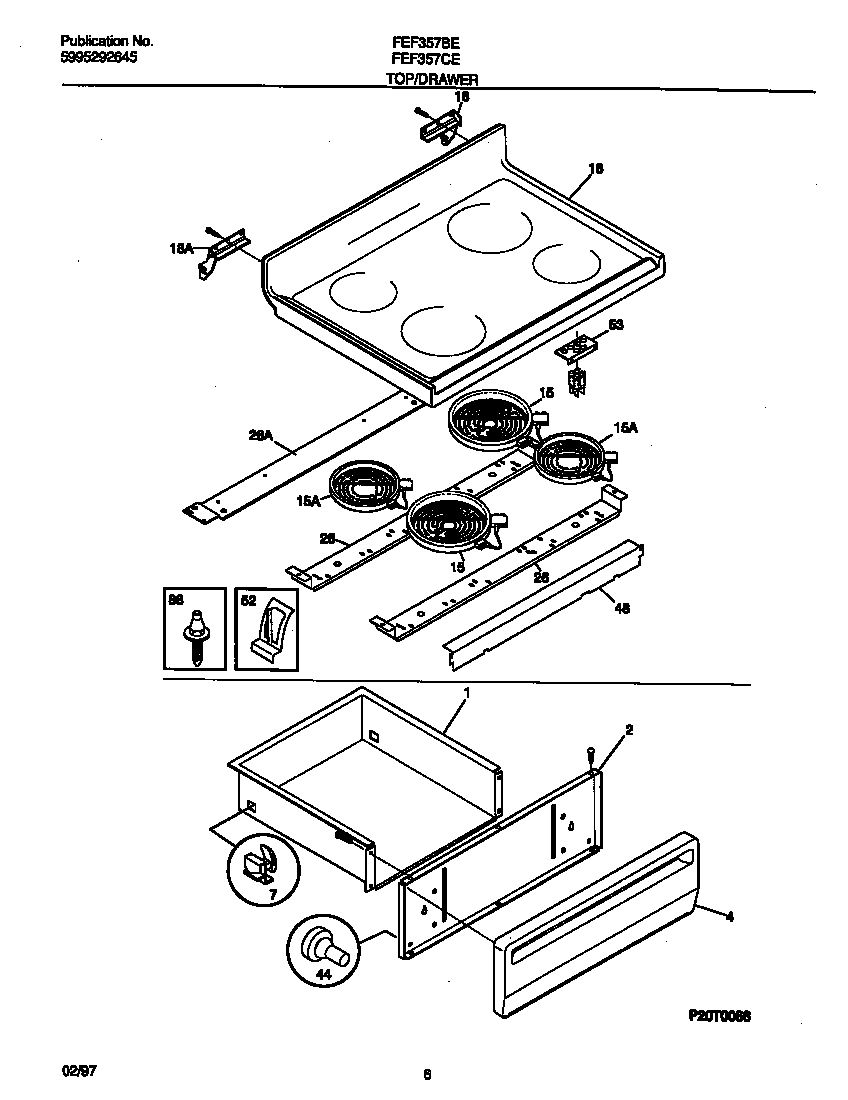

FEF357CESD 04 – TOP/DRAWER

FEF357CESD 04 – TOP/DRAWER

Written by

in

FEF357CESD 04 – TOP/DRAWER

Products

PositionProduct
*47964RIVET-POP, WARING-PLATE
*47966WCI 316089600
*47968131243700 Frigidaire Screw
*47969WCI 5309951550
*47967WCI 5303280311
*47965Screw,cup pt ,8-18 x 0.375 ,chrome
*47970WCI 316001738
1DRAWER-UTILITY
2SHIELD-PNL
4WCI 316084405
4SCREW, HEX WASHER HEAD, 8-18(AB) X 1/2 (NOT ILLUSTRATED)
4316021109 Frigidaire Oven Screw
73051163 Frigidaire Oven Range Rear Broiler Drawer Glide
15318198817 Frigidaire Oven Element
15318198834 Frigidaire Oven Element
16Panel-main top,white ,smooth top assy
18HINGE-MAIN TOP (LH)
18HINGE-MAIN TOP (RH)
18316021105 Frigidaire Oven Screw
26WCI 316099201
26WCI 316099101
443131903 Frigidaire Door/Drawer Bumper
48WCI 316100200
52Clip,element mtg
53WCI 316099301
88316099500 Frigidaire Oven Pin
