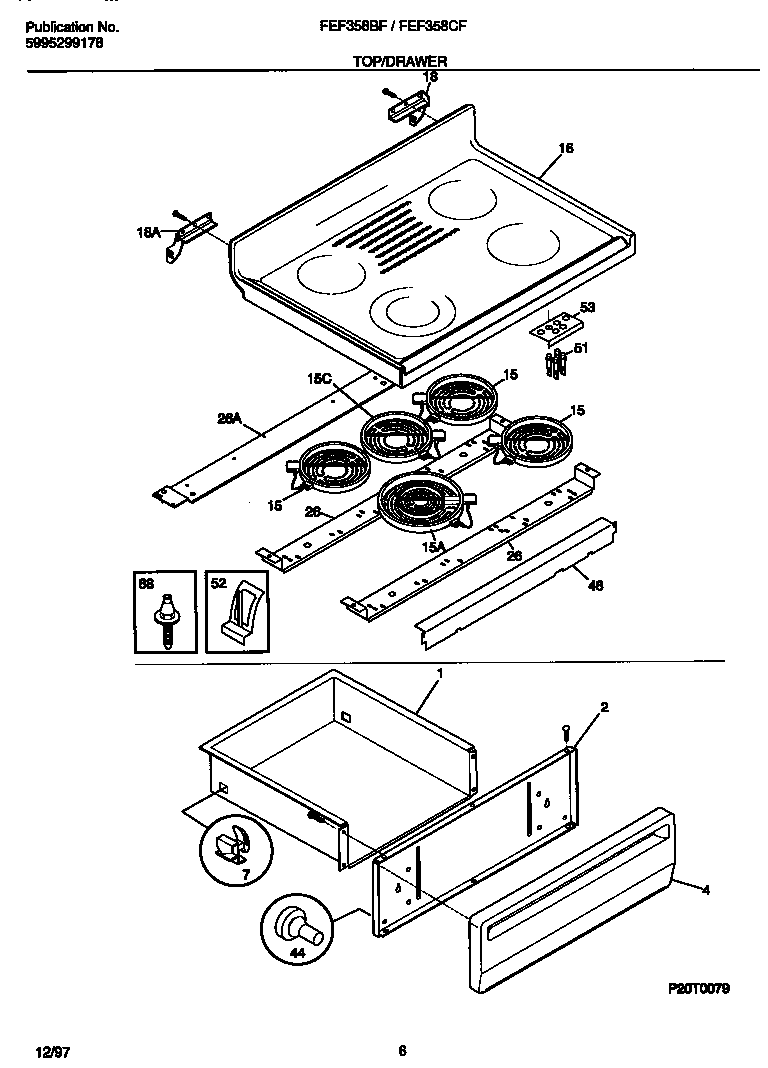

FEF358BFDA 04 – TOP/DRAWERadmin2025-04-26T10:37:01+00:00FEF358BFDA 04 – TOP/DRAWER
Products
| Position | Product |
|---|
| *75536 | RIVET-POP, WARING-PLATE |
| *75540 | WCI 316089600 |
| *75541 | WCI 5309951550 |
| *75535 | SCREW, HEX WASHER HEAD, 8-18(AB) X 1/2 (NOT ILLUSTRATED) |
| *75539 | WCI 5303280311 |
| *75543 | WCI 316001748 |
| *75542 | Clip,wiring harness ,green ,main top |
| *75538 | Screw,cup pt ,8-18 x 0.375 ,chrome |
| *75533 | 316021109 Frigidaire Oven Screw |
| *75537 | 316021105 Frigidaire Oven Screw |
| 1 | DRAWER-UTILITY |
| 2 | SHIELD-PNL |
| 4 | WCI 316084406 |
| 7 | 3051163 Frigidaire Oven Range Rear Broiler Drawer Glide |
| 15 | 318198817 Frigidaire Oven Element |
| 15 | WCI 316098200 |
| 15 | 389082702 Frigidaire Element |
| 16 | WCI 316098128 |
| 18 | HINGE-MAIN TOP (LH) |
| 18 | HINGE-MAIN TOP (RH) |
| 26 | WCI 316099101 |
| 26 | WCI 316099201 |
| 44 | 3131903 Frigidaire Door/Drawer Bumper |
| 48 | WCI 316100200 |
| 52 | Clip,element mtg |
| 53 | WCI 316099300 |
| 88 | 316099500 Frigidaire Oven Pin |
